Oil Filters

The MISUMI eCatalog has a large number of oil filters from famous Japanese manufacturers, from suction filters through to line filters.
In addition to oil filters, we also have all kinds of parts for hydraulic systems, including oil pumps, hydraulic cylinders, hydraulic hoses, and couplers. Furthermore, all of these can be purchased together, regardless of manufacturer.
[Oil Filters]
Oil filters are components for removing contaminants from hydraulic oil in hydraulic systems.
Hydraulic systems do not discharge in the way that pneumatic systems do but instead circulate the same oil circulating during use: therefore it is more important to remove any dust or debris from the system.
It is essential to remove dust or debris with an oil filter to operate hydraulic systems without issues.

15 items

: 30; 45; 60

Days to Ship	All 3 Day(s) or Less 4 Day(s) or Less 7 Day(s) or Less 8 Day(s) or Less 9 Day(s) or Less 10 Day(s) or Less 11 Day(s) or Less 12 Day(s) or Less 13 Day(s) or Less 14 Day(s) or Less

Suction Filter With Case FH99 Series

SMC

[Features]
· Compact and lightweight.
· Prevent cavitation in pump.
· Maintenance of elements is easy.
· Easy piping mounting.
· Accessories that users can select the best model for their application.
· Detection of clogged part is possible.

Standard Price:	MYR 294.16-
Days to Ship:	13 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Vertical Type Suction Filter FHIA Series

SMC

Hydraulic oil filter used for protecting each device in the hydraulic circuit.
[Features]
· No air pocket.
· Discharges all collected dust.
· Drain port not required.
· Element replacement work is easy.
· Compact and lightweight.
· Detection of clogged part.

Standard Price:	MYR 7.81-
Days to Ship:	9 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Suction Guard, FHG Series

SMC

[Features]
·Prevention of collected dust from falling into the tank
·No need to change flushing oil
·Easy maintenance and no air contamination
·Compact tank equipment
·Connection methods and accessories that can be selected according to the application

Standard Price:	MYR 73.23-
Days to Ship:	11 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Vertical Type Return Filter FHBA Series

SMC

Vertical type return filter is mounted directly on the upper surface of oil tank of hydraulic system, prevents dust generated in the circuit from entering the oil tank, and maintains oil cleanliness, so the reduction and streamlining of the number of filters are possible.
[Features]
· Space-saving and neatly designed oil tank top surface.
· OUT side piping not required.
· Easy maintenance and inspection.
· Prevents collected dust from falling into the oil tank.
· 2 INLET ports.

Standard Price:	MYR 7.81-
Days to Ship:	9 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Cartridge Filter CF (for general hydraulic oil)

TAISEIKOGYO

[Features]
· The maximum operating pressure is 0.5 MPa.
· Filtration accuracy of 10U (10 micron) is standard.
· Cartridge type design makes replacement and maintenance easy.
· Depending on the flow rate, it can be used for either full or partial filtration.
· Built-in relief valve (opening pressure 0.1 MPa).
· The CF model can be equipped with a pressure gauge (option), which can be freely mounted at any of the four locations: inlet, outlet, left, or right.

Standard Price:	MYR 413.61-
Days to Ship:	7 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Cartridge Filter CS

TAISEIKOGYO

Features a maximum operating pressure of 0.5MPa. For filtration accuracy, 10U (10 micrometers) is standard. A cartridge type for easy replacement and maintenance. Can be used for either full or partial filtration depending on the flow rate volume.

Standard Price:	MYR 102.57
Days to Ship:	18 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

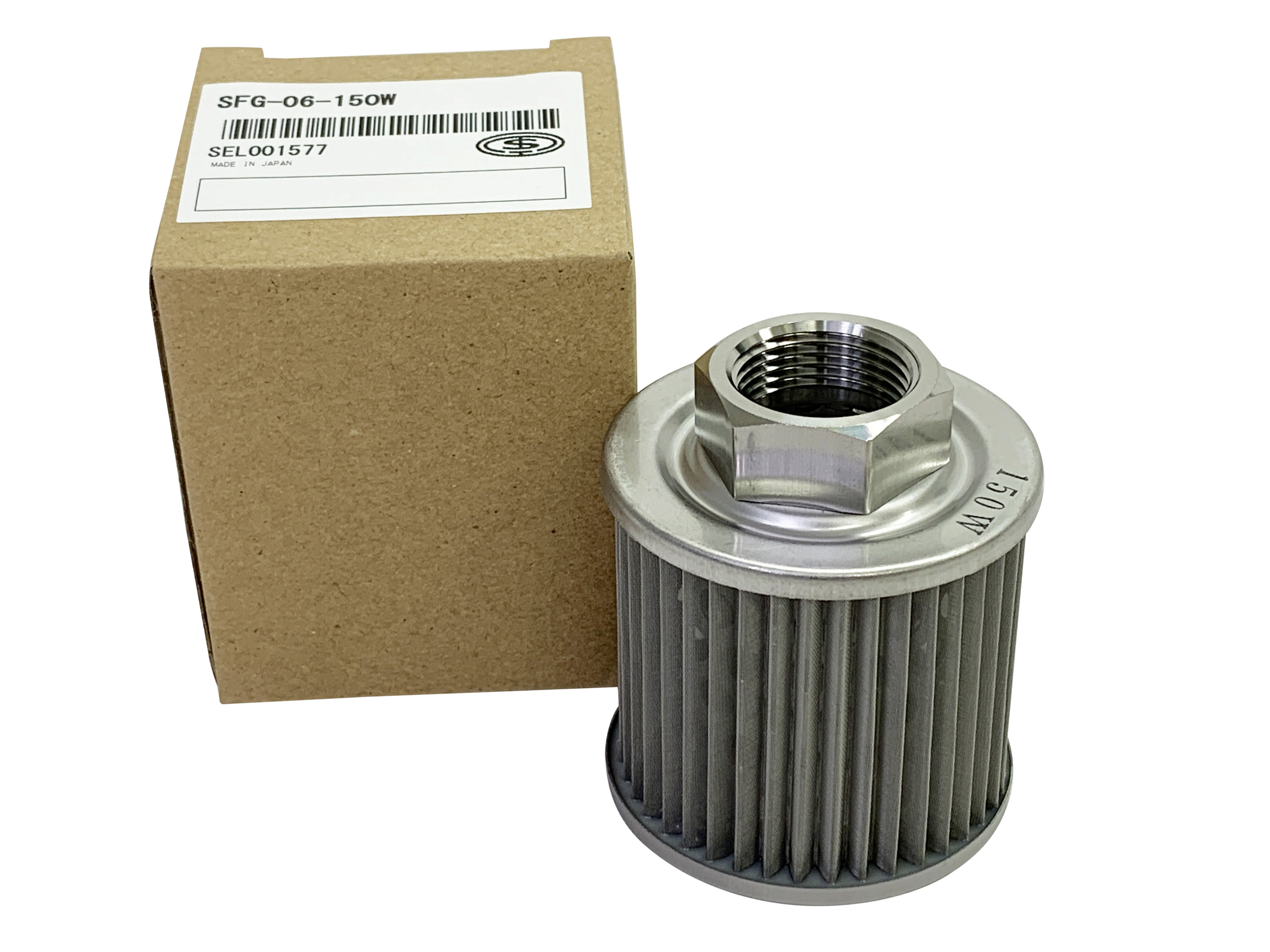

Suction filter without case SFG for flame retardancy hydraulic oil

TAISEIKOGYO

The SFG type suction filter is an in-tank filter for flame retardancy hydraulic oil. The SFG type suction filter is made entirely of stainless steel. Filtration accuracy is available in 60, 100, 150, and 200 mesh as standard.

Standard Price:	MYR 155.42-
Days to Ship:	8 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Suction filter without case SFN For general hydraulic oil

TAISEIKOGYO

The SFN type suction filter is an in-tank filter for general hydraulic oil. The SFN type suction filter uses a stainless steel notch wire design. Standard filtration accuracy is 60, 100, 150, or 200 mesh.

Standard Price:	MYR 118.09-
Days to Ship:	8 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Suction filter without case SFT for general hydraulic oil

TAISEIKOGYO

[Features]
· The SFT type suction filter is an in-tank filter for general hydraulic oil.
· The SFT type suction filter uses a stainless steel wire mesh design.
· Standard filtration accuracy is 60, 100, 150, or 200 mesh.

Standard Price:	MYR 58.76-
Days to Ship:	4 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Air Breather (AP Type)

TAISEIKOGYO

[Features]
· Installed on top of the reservoir tank, it prevents contamination from entering the tank along with the air being drawn in.
· Easy installation is possible by simply providing an Rc female thread seat on the tank side (AP-02 to 24).
· Elements made of hard filter paper (AP-02 to 24) and general filter paper (AP-32, 48) are provided as standard.
· A wire mesh element can be selected as a Fire Service Act in Japan compliant product.
· A steel wool element can be selected for mist filtration.

Standard Price:	MYR 233.76-
Days to Ship:	8 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Line Filter T-shaped Top Removal UL Type Spare Parts

TAISEIKOGYO

[Features]
· This is the most standard low pressure inline filter with T-type connection.
· Starting with indicators capable of detecting differential pressure (visual and electric contact types), you can customize according to your needs from a wide range of options.
· The oil flow direction can be easily changed from right to left or left to right by rotating the upper cover 180°.
· This is a top-removal type that makes element replacement easy.
· The elements for the "U" series (UL, UM, UH type) are common.
· It can also be used as a return line filter.
· For fluids other than general hydraulic oil, the packing, "O" rings, and other parts will differ, so please specify.

Standard Price:	MYR 48.97-
Days to Ship:	10 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Line Filter FH34/44/54/64 Series

SMC

[Features]
· Compact, robust and safe design.
· Easy element replacement.
· Secure outlet seal.
· Large drain discharge port.
· Oil flow direction can be easily reversed.
· Detection of clogged part is possible.

Standard Price:	MYR 6.53-
Days to Ship:	3 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Return Filter FH100 Series

SMC

[Features]
· Element can be selected according to the application.
· Easy maintenance.
· Large drain discharge port.
· Detection of clogged part is possible.

Standard Price:	MYR 83.28-
Days to Ship:	9 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Oil Filter FH150 Series

SMC

[Features]·Compact and lightweight for easy maintenance and inspection. Can detect clogging

Standard Price:	MYR 312.74-
Days to Ship:	13 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Magnet Separator FHM Series

SMC

Standard Price:	MYR 172.80-
Days to Ship:	9 Day(s) or more

"Same Day Ship Out" is available for item with 1 day


Brand
Product Series
Days to Ship
Type


Brand	SMC	SMC	SMC	SMC	TAISEIKOGYO	TAISEIKOGYO	TAISEIKOGYO	TAISEIKOGYO	TAISEIKOGYO	TAISEIKOGYO	TAISEIKOGYO	SMC	SMC	SMC	SMC
Product Series	Suction Filter With Case FH99 Series	Vertical Type Suction Filter FHIA Series	Suction Guard, FHG Series	Vertical Type Return Filter FHBA Series	Cartridge Filter CF (for general hydraulic oil)	Cartridge Filter CS	Suction filter without case SFG for flame retardancy hydraulic oil	Suction filter without case SFN For general hydraulic oil	Suction filter without case SFT for general hydraulic oil	Air Breather (AP Type)	Line Filter T-shaped Top Removal UL Type Spare Parts	Line Filter FH34/44/54/64 Series	Return Filter FH100 Series	Oil Filter FH150 Series	Magnet Separator FHM Series
Days to Ship	13 Day(s) or more	9 Day(s) or more	11 Day(s) or more	9 Day(s) or more	7 Day(s) or more	18 Day(s) or more	8 Day(s) or more	8 Day(s) or more	4 Day(s) or more	8 Day(s) or more	10 Day(s) or more	3 Day(s) or more	9 Day(s) or more	13 Day(s) or more	9 Day(s) or more
Type	Suction Filter / Related Part	Suction Filter / Related Part	Suction Strainer / Related Part	Return Filter / Related Part	Other Filter	-	Suction Filter	Suction Filter	Suction Filter	Breather	Related Part	Line Filter / Related Part	Return Filter / Related Part	Other Filter	Related Part
