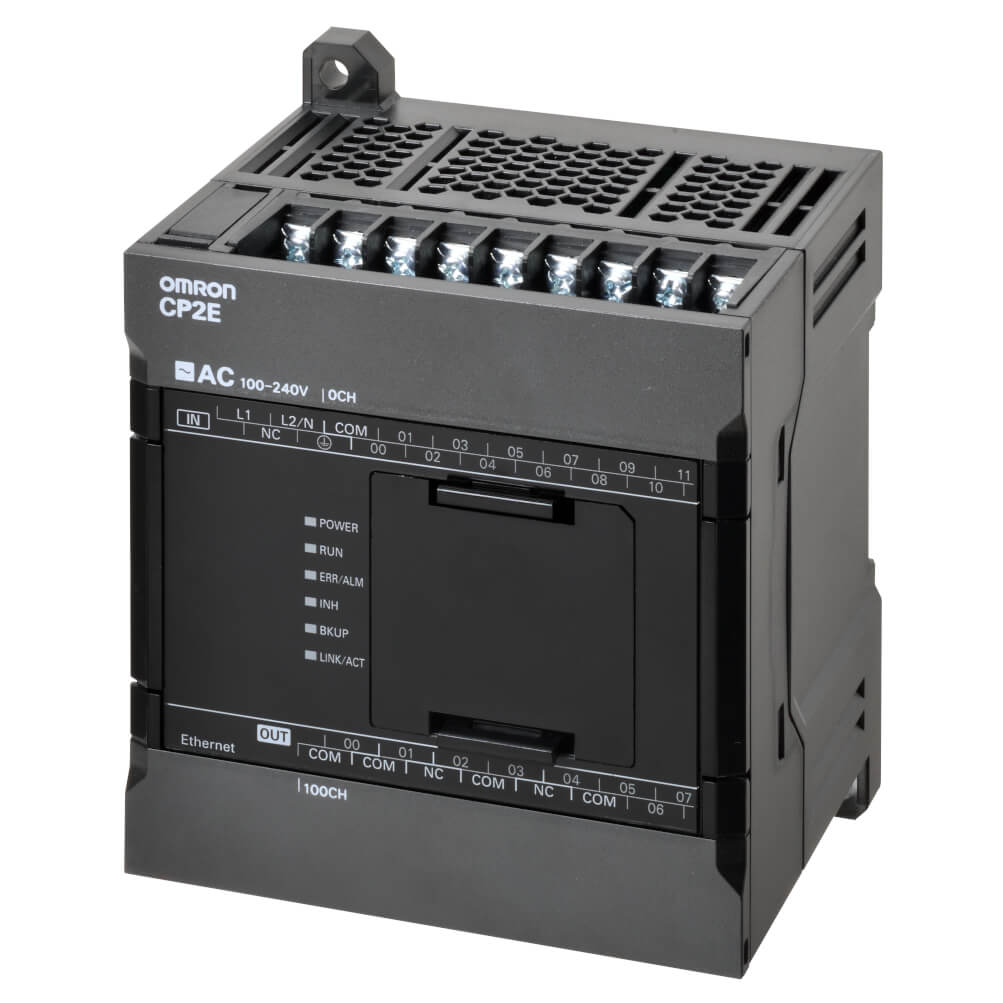

Programmable Controller CP2E CPU Unit CP2E-N Type Network Model
Part Number
Configured Part Number is shown.
小規模装置への要望にお応えできる機能を凝縮
エンドユーザーからの要求である装置の見える化やモジュール化、トレーサビリティに対応するため、ネットワークや周辺機器への接続性を強化しました。
また、提供するファンクションブロック（FB）で、複雑な制御を簡単に実現します。
さらに、バッテリレスや、使用温度範囲の拡大により、製造現場以外でも安心してご使用いただけます。
注. CP2Eの主な機能を記載しており、利用可能な機能は機種により異なります。
装置の稼働状況や生産状況の見える化に対応
複雑な制御を簡単に実現
| Part Number |
|---|
| CP2E-N14DR-D |
| CP2E-N14DT-D |
| CP2E-N20DT1-D |
| CP2E-N30DT1-D |
| CP2E-N40DT1-D |
| CP2E-N60DT1-D |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Type | Number of Inputs/Outputs (Point) | Output Format | Number of inputs (Point) | Number of Outputs (Point) | Connection type | Data Memory Capacity | Current consumption (5 VDC) | Current consumption (24 VDC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 805.15 | 1 Piece(s) | 9 Day(s) or more | Standalone | 14 | Relay | 8 | 6 | DC | - | - | - | ||
MYR 804.86 | 1 Piece(s) | 9 Day(s) or more | Standalone | 14 | Transistors (Sink) | 8 | 6 | DC | - | - | - | ||
MYR 1,786.16 | 1 Piece(s) | 6 Day(s) or more | - | - | Transistor (sourcing) | 12 | 8 | - | 16K words | 0.26 A | 0.02 A | ||
MYR 2,550.11 | 1 Piece(s) | 6 Day(s) or more | - | - | Transistor (sourcing) | 18 | 12 | - | 16K words | 0.51 A | 0.03 A | ||
MYR 3,204.91 | 1 Piece(s) | 6 Day(s) or more | - | - | Transistor (sourcing) | 24 | 16 | - | 16K words | 0.59 A | 0.03 A | ||
MYR 4,492.71 | 1 Piece(s) | 91 Day(s) or more | - | - | Transistor (sourcing) | 36 | 24 | - | 16K words | 0.71 A | 0.03 A |
Loading...
Basic Information
| Power Supply | DC24V |
|---|
Specification/Dimensions
-
Type
- Standalone
-
Number of Inputs/Outputs(Point)
-
Output Format
- Relay
- Transistor (sourcing)
- Transistors (Sink)
-
Number of inputs(Point)
-
Number of Outputs(Point)
-
Connection type
- DC
-
Data Memory Capacity
- 16K words
-
Current consumption (5 VDC)
-
Current consumption (24 VDC)
- 0.02 A
- 0.03 A
Days to Ship
-
- All
- 6 Day(s) or Less
- 9 Day(s) or Less
- 91 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
