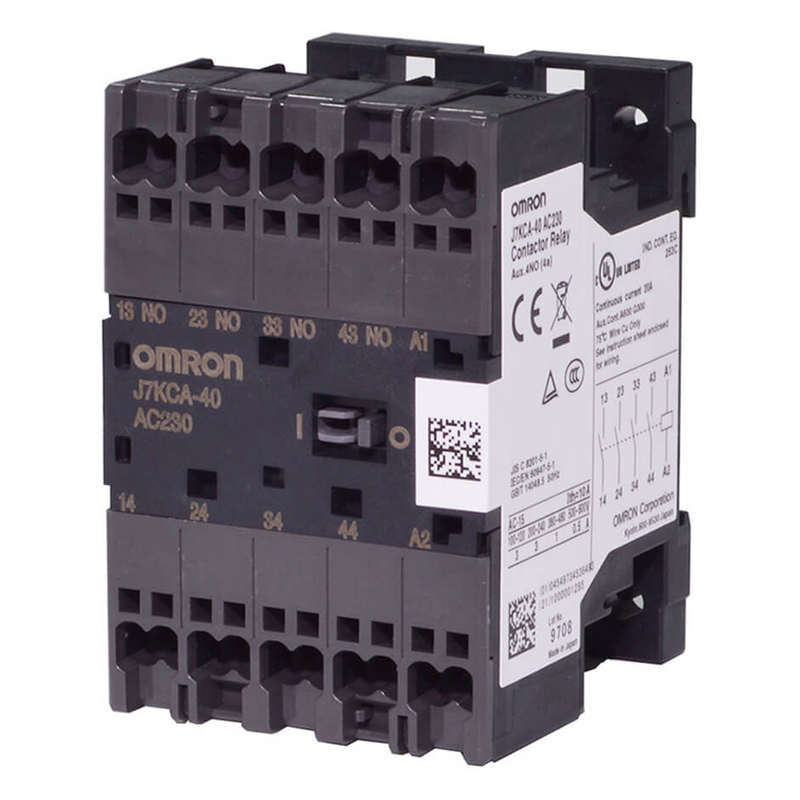

Auxiliary Relay (Contactor Relay) J7KCA Series
Part Number
Configured Part Number is shown.
待望の低圧開閉器が制御盤ソリューション商品群に登場
モータ制御までもカバーする幅広い制御盤ソリューション商品群のラインアップによりお客様の制御盤づくりのTCO*1 削減に貢献します
*1. TCO：Total Cost of Ownereshipの略。盤設計・制作から稼働・メンテナンスまでの全体コスト。
モータ制御用の低圧開閉器追加で制御盤の価値をさらに向上
電磁接触器（コンタクタ）J7KCと同一寸法の補助継電器です。
リンクドコンタクト機構。
小型
J7KC/J7TCシリーズ横幅をすべて45mm幅に統一。
盤内へコンパクトに収まります。
省スペース設計により、盤の小型化に貢献
*オムロン株式会社調べ。
| Part Number |
|---|
| J7KCA-22 DC24 |
| J7KCA-31 DC24 |
| J7KCA-40 DC24 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Auxiliary Contact | Contact Configuration |
|---|---|---|---|---|---|---|
MYR 221.40 | 1 Piece(s) | 9 Day(s) or more | 2a2b | 4PST-2NO 2NC | ||
MYR 221.40 | 1 Piece(s) | 9 Day(s) or more | 3a1b | 4PST-3NO 1NC | ||
MYR 221.40 | 1 Piece(s) | 9 Day(s) or more | 4a | 4PST-4NO |
Loading...
Basic Information
| Rated Voltage(V) | DC24 | Representative Standard | CE / CUL / TUV / CCC | Dimension Length(mm) | 67.5 |
|---|---|---|---|---|---|
| Dimension Width(mm) | 45 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
