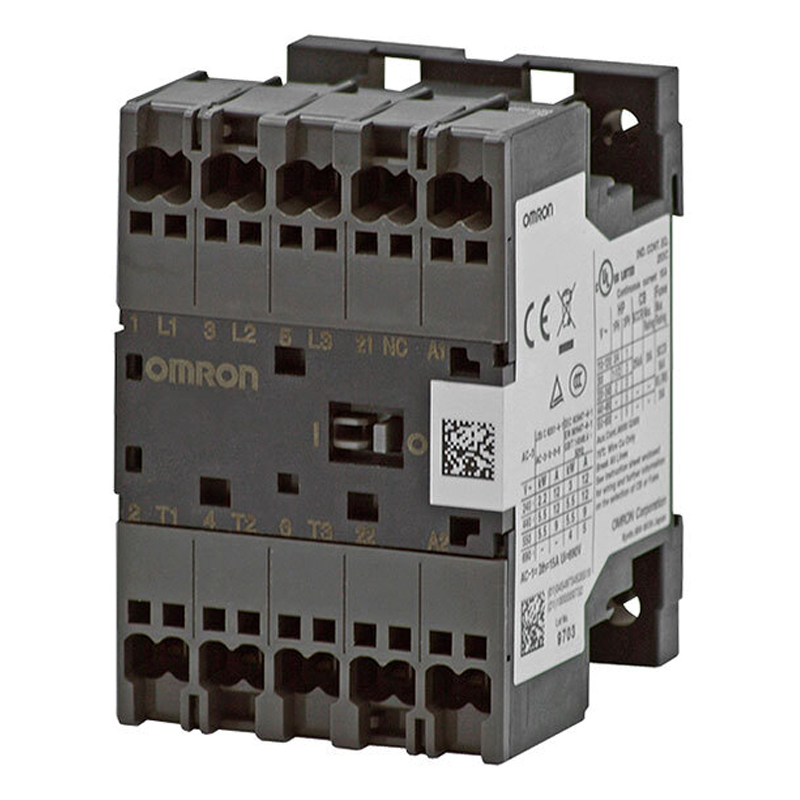

Electromagnetic Contactor (Contactor) J7KC Series
Part Number
Configured Part Number is shown.
The long-awaited low-voltage switch has joined our panel solution product lineup
Our extensive lineup of panel solution products, which even cover motor control, helps reduce the TCO*1 of your panel production
*1. TCO: Abbreviation for Total Cost of Ownership. Overall cost from panel design/production to operation/maintenance.
Enhance the value of your control panel with the addition of low-voltage switchgear for motor control
One of the best match for inlet switch of direct-on-line motor drive (AC-3 class) and drive control device
Small
Width of J7KC/J7TC Series are unified to 45 mm.
Stores compactly in the panel.
Mirror Contact Mechanism
Supports safety applications
Long Life
Electrical durability: over 1,000,000 operations*2
- *1. As of June 2019, according to a survey by OMRON Corporation. For push-in type
- *2. Excludes interruptions by thermal relay.
Space-saving design contributes to more compact panels
*According to OMRON Corporation research.
| Part Number |
|---|
| J7KC-12-01 AC24 |
| J7KC-12-01 AC100 |
| J7KC-12-01 AC200 |
| J7KC-12-01 AC230 |
| J7KC-12-01 DC24 |
| J7KC-12-10 AC24 |
| J7KC-12-10 AC100 |
| J7KC-12-10 AC200 |
| J7KC-12-10 AC230 |
| J7KC-12-10 DC24 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Coil Rated Voltage (V) | Auxiliary Contact |
|---|---|---|---|---|---|---|
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC24 | 1b | ||
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC100 | 1b | ||
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC200 | 1b | ||
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC230 | 1b | ||
MYR 191.21 | 1 Piece(s) | 9 Day(s) or more | DC24 | 1b | ||
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC24 | 1a | ||
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC100 | 1a | ||
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC200 | 1a | ||
MYR 146.65 | 1 Piece(s) | 9 Day(s) or more | AC230 | 1a | ||
MYR 191.21 | 1 Piece(s) | 9 Day(s) or more | DC24 | 1a |
Loading...
Basic Information
| Operating Method | Irreversible type | Number of Poles | 3 | Representative Standard | UL / TUV / CCC / CSA |
|---|---|---|---|---|---|
| Dimension Length(mm) | 67.5 | Dimension Width(mm) | 45 | Dimension Thickness(mm) | 49 |
| Frame Size | 12A |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
