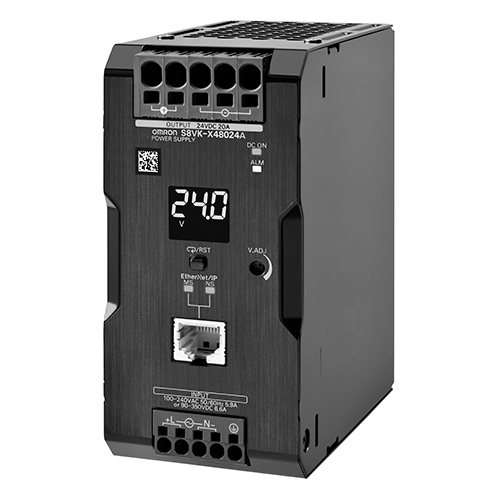

Switching Power Supply S8VK-X
Click this image to zoom it.
Move the mouse over the image to zoom
The switching power supplies achieve IOT of EtherNet/IP and Modbus TCP compatible equipment, and maximize system utilization rate.
[Features]
・ Product replacement time, output voltage, output current, etc. can be acquired by communication and managed collectively
・ The product status can be checked on-site on the display monitor
・ It can be operated at an ambient temperature of -40 to +70°C
・ 150% peak current (240 W/480 W)
・ It can be closely attached (Up to 55°C)
・ UL Class 2 compliant (90 W or less)
・ EN/IEC 61558-2-16 compliant
・ Circuit board coating improves environmental resistance performance
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| S8VK-X03005-EIP |
| S8VK-X06012-EIP |
| S8VK-X06024-EIP |
| S8VK-X09024-EIP |
| S8VK-X09024A-EIP |
| S8VK-X12024-EIP |
| S8VK-X12024A-EIP |
| S8VK-X24024-EIP |
| S8VK-X24024A-EIP |
| S8VK-X48024-EIP |
| S8VK-X48024A-EIP |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Capacity (W) | Output Voltage (Single Only) | Rated Output Current (Single Only) (A) | Included Function | Dimension Height (mm) | Dimension Width (mm) | Dimension Depth (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 694.88 | 1 Piece(s) | 5 Day(s) or more | 30 | DC5V | 5 | Parallel | 90 | 40 | 92.3 | ||
MYR 777.93 | 1 Piece(s) | 5 Day(s) or more | 60 | DC12V | 4.5 | Parallel | 90 | 40 | 92.3 | ||
MYR 777.93 | 1 Piece(s) | 5 Day(s) or more | 60 | DC24V | 2.5 | Parallel | 90 | 40 | 92.3 | ||
MYR 901.78 | 1 Piece(s) | 5 Day(s) or more | 90 | DC24V | 3.75 | Parallel | 94.7 | 55 | 92.3 | ||
MYR 1,037.20 | 1 Piece(s) | 5 Day(s) or more | 90 | DC24V | 3.75 | Parallel / Numeric value display | 94.7 | 55 | 92.3 | ||
MYR 1,145.06 | 1 Piece(s) | 5 Day(s) or more | 120 | DC24V | 5 | Parallel | 94.7 | 55 | 92.3 | ||
MYR 1,311.28 | 1 Piece(s) | 5 Day(s) or more | 120 | DC24V | 5 | Parallel / Numeric value display | 94.7 | 55 | 92.3 | ||
MYR 1,644.85 | 1 Piece(s) | 5 Day(s) or more | 240 | DC24V | 10 | Parallel | 125.2 | 38 | 123.7 | ||
MYR 2,060.50 | 1 Piece(s) | 5 Day(s) or more | 240 | DC24V | 10 | Parallel / Numeric value display | 125.2 | 38 | 123.7 | ||
MYR 2,789.93 | 1 Piece(s) | 5 Day(s) or more | 480 | DC24V | 20 | Parallel | 125.2 | 60 | 123.7 | ||
MYR 3,205.50 | 1 Piece(s) | 5 Day(s) or more | 480 | DC24V | 20 | Parallel / Numeric value display | 125.2 | 60 | 123.7 |
Loading...
Basic Information
| Shape | With Cover | Single / Multi | Single | Input Voltage | AC-dedicated |
|---|---|---|---|---|---|
| Input/output Terminal Shape | Screwless Terminal Block | Safety standards | CE / UL / CUL / TUV | Mounting Method | DIN rail mounting |
Specification/Dimensions
-
Capacity(W)
-
Output Voltage (Single Only)
- DC5V
- DC12V
- DC24V
-
Rated Output Current (Single Only)(A)
-
Included Function
- Parallel
- Numeric value display
-
Dimension Height(mm)
-
Dimension Width(mm)
-
Dimension Depth(mm)
Days to Ship
-
- All
- 5 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
