Flat Belt Conveyor, Center Drive, External Type, Pulley Dia. 60 mm

Click this image to zoom it.

Move the mouse over the image to zoom

Economy

MISUMI

MiSUMi Economy

MISUMI

Part Number

Configured Part Number is shown.

Drawing/Specifications
Part Numbers

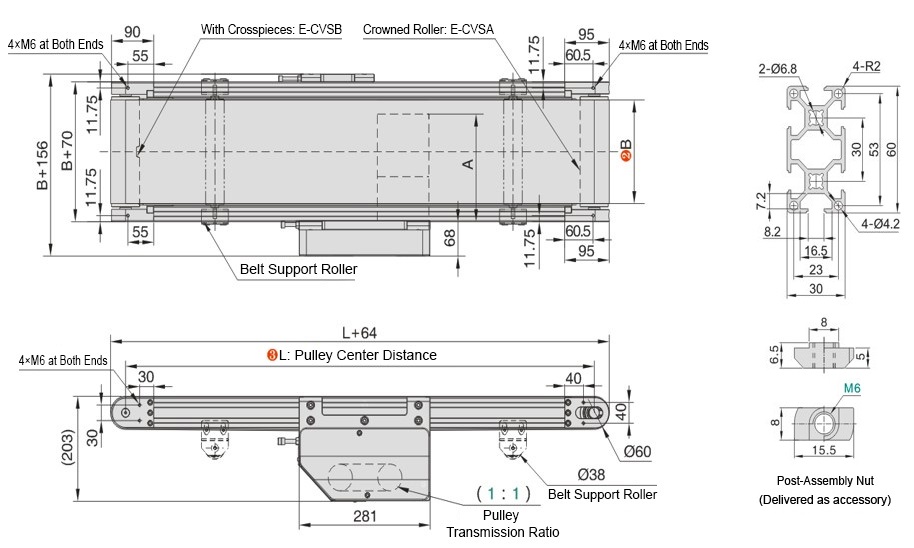

Dimensional Drawing

E-CVSA/E-CVSB

Motor specification: 160W^*

Default conveying direction Enlarged profile cross-section (symmetrical left and right)

When L > 2000, one belt support roller is included (depending on the motor position, it may be on the left or right).
For B < 500, a single guide rail is used; for B ≥ 500, double guide rails are used.

The dimensions shown in the diagram are for belt specification H20 (thickness 2.0 mm); please note that belt thickness varies depending on the belt specification.
Please refer to the flat belt specification list Click

here

When selecting a speed control motor, the speed controller will not be included with the main unit, and no mounting bracket is provided.
If a bracket for the speed controller is required, please use additional processing (SCB).
*Different power ratings only affect the motor size. For dimension A, please refer to the table below. The external dimensions of other components remain the same.

Nut allocation table: L value (center distance unit: mm)

L600 to 999	L1000 to 1499	L1500 or more	Specifications/Model	Configuration Type
16PCS	24PCS	32PCS	M6 (T-type) / E-TNT8-30-6 (50)	Accessories

Nuts are shipped with the conveyor as accessories and are not shown in the CAD model.

Nuts order quantity 1 = 1 pack (50 pcs/pack)

■ Detailed table of A dimensions (variable speed/inverter motor)

Motor power	Motor		Reduction ratio	A
	Specifications	Manufacturer
60W	Inverter type	Taibang	3 to 18	L168
			25 to 180	L186
	Speed control type		3 to 18	L179.5
			25 to 180	L197.5
	Inverter type	Jingyan	3 to 18	L171
			25 to 180	L191
	Speed control type		3 to 18	L182
			25 to 180	L202
90W	Inverter type	Taibang	3 to 18	L183
			25 to 180	L201
	Speed control type		3 to 18	L194.5
			25 to 180	L212.5
	Inverter type	Jingyan	3 to 18	L186
			25 to 180	L206
	Speed control type		3 to 18	L197
			25 to 180	L217
120W	Inverter type	Taibang	3 to 18	L183
			25 to 180	L201
	Speed control type		3 to 18	L194.5
			25 to 180	L212.5
	Inverter type	Jingyan	3 to 18	L196
			25 to 180	L216
	Speed control type		3 to 18	L207
			25 to 180	L227
200W	Inverter type	Taibang	3 to 18	L230
			25 to 180	L230
	Speed control type		3 to 18	L240.5
			25 to 180	L240.5
	Inverter type	Jingyan	3 to 18	L219
			25 to 180	L243
	Speed control type		3 to 18	L231
			25 to 180	L255

■ Detailed table of A dimension (stepper motor)

Brand	Motor model	A
Leadshine stepper motor (open loop)	86CM45	L80
	86CM80	L98
	86CM120	L129

■ Detailed table of A dimension (servo motor)

Servo motor	Brand	A
750W servo motor	Leadshine servo motor	L95.7

■ Detailed Table of Dimension A (Planetary Gearbox)

Gear ratio (x)	Compatible motor specifications	A
3 5 10	With 750W servo motor	L110
15 20 25 30	With 750W servo motor	L130
3 5 10	With 86 stepper motor	L110
15 20 25 30	With 86 stepper motor	L130

When selecting a stepper or servo motor with a planetary gearbox, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary gearbox A dimension.

Material Specifications

■ Material Table

Part Name	Material	Surface Treatment
Profile	Aluminum	Anodized
Motor cover	Aluminum	Spray coating and baking
Pulley holder	Aluminum	Spray coating and baking

■ Flat belt width - Pulley center distance correspondence table

Model	Belt width B	Pulley center distance L
Model	Belt width B	L600 to 1000	L1005 to 1500	L1505 to 2000	L2005 to 2500	L2505 to 3000
E-CVSA E-CVSB	80 to 200	●	●	●	●	●
	205 to 300	●	●	●	●	●
	305 to 400	-	●	●	●	●
	405 to 500	-	●	●	●	●

Specification Table

Please follow the selection steps

, choose the type and parameters, and then place your order.

	Type	-	B Belt width	-	L Pulley center distance	-	Motor parameter selection					-	Belt specification	-	Motor brand
							Output power	-	Specifications	-	Reduction ratio
When there is no belt When there is no motor or gear head	E-CVSA E-CVSA E-CVSA	- - -	300 300 300	- - -	1500 1500 1500	- - -	60 60 60	- - -	SCM INV NM	- - -	25 25 NH	- - -	H20 J H20	- - -	G G R

■ Specifications

Type	Type	Machine Characteristics
E-CVSA	Arc-shaped roller anti-deviation	Good belt flatness and high surface accuracy
E-CVSB	Belt with guide strip for anti-deviation	Stable belt anti-deviation, but there is a slight bulge at the bonding area of the center guide strip on the flat belt

■ Speed control/inverter type

Type	B Specified unit: 5 mm	L Specified unit: 5 mm	Motor selection			Belt specification (Material is generally PU)	Motor
			Torque (N⋅m)//Power (W)	Specifications	Gear head reduction ratio
E-CVSA (Arc surface roller type) E-CVSB (With guide strip type)	80 to 500	600 to 3000	60 90 120 200 (Power W)	SCM (Single-phase 220 V variable speed type)	5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180	H20(General use · Green PVC) W20(General use · White PVC) U13(Sliding use · Green PVC) S13(Sliding use · White PVC) D20(Antistatic use · Green PVC) F15(Food conveying use · White PU) O14(Oil-resistant · Spec. · Green PU) Y20(General use · Yellow PVC) V20(General use · Red PVC) J(No belt)	G(Taibang motor) J(Jingyan motor)
				INV (Three-phase 220 V inverter type)
				NM(No motor)	NH(No gear head)		R(No motor · gear head)

When there is no gear head & the gear head reduction ratio is ≤ 10, the drive side uses synchronous belt transmission; when the gear head reduction ratio is > 10, the drive side uses chain transmission.

When selecting an INV variable frequency motor, the inverter is delivered as an accessory.

■ Stepper type

Type	B Specified unit: 5 mm	L Specified unit: 5 mm	Motor selection			Belt specification (Material is generally PU)	Motor
			Torque (N⋅m)//Power (W)	Specifications	Gear head reduction ratio
E-CVSA86 (Arc roller type) E-CVSB86 (With guide strip type)	80 to 500	600 to 3000	4.5 8.0 12.0 (86 stepper type / torque N⋅m)	MC(Pulse universal type) IO(IO control type) EC(Bus EtherCAT) RS(RS485)	3 5 10 15 20 25 30 NH(no gearhead) Note: 3 to 10 are single-pole	H20(general use · green PVC) W20(general use · white PVC) U13(for sliding · green PVC) S13(for sliding · white PVC) D20(anti-static · green PVC) F15(for food conveyance · white PU) O14(oil-resistant · green PU) Y20(general use · yellow PVC) V20(general use · red PVC) J(no belt)	LS (Leadshine motor)
				NM(no motor or driver)			R(no motor, driver, or gearhead)

When using an 86 stepper motor with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)

When using an 86 stepper motor with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports two types of input voltage: 24 V DC to 70 V DC or 48 V AC to 70 V AC. (Power supply not included)

The drive side uses synchronous belt transmission.

■ Servo type

Type	B selection Specified unit: 5 mm	L Specified unit: 5 mm	Motor selection			Belt specification (Material is generally PU)	Motor
			Torque (N⋅m)//Power (W)	Specifications/Drive method	Gear head reduction ratio
E-CVSA75 (Arc roller type) E-CVSB75 (With guide strip type)	80 to 500	600 to 3000	750 (Servo type, power W)	MC(Pulse universal type) EC(Bus EtherCAT)	3 5 10 15 20 25 30 NH(no gearhead) Note: 3 to 10 are single-pole	H20(general use · green PVC) W20(general use · white PVC) U13(for sliding · green PVC) S13(for sliding · white PVC) D20(anti-static · green PVC) F15(for food conveyance · white PU) O14(oil-resistant · green PU) Y20(general use · yellow PVC) V20(general use · red PVC) J(no belt)	LS (Leadshine motor)
				NM(no motor or driver)			R(no motor, driver, or gearhead)

When selecting a servo motor, the motor and driver are supplied by default with a single-phase 220 V power supply. In conveyor applications, a motor rated speed of 3000 r/min is used as the standard for calculating linear speed. During use, you can control it as needed through upper-level programming.

The drive side uses synchronous belt transmission.

The belt thickness is the nominal thickness; the actual thickness is one-tenth of that, in millimeters.

For oil-resistant specifications, only the conveying surface is oil-resistant. If oil gets on the back of the belt, it may not be usable.

When selecting without motor and without gear head, the motor mounting hole spacing will vary depending on the motor output power.

When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble according to the assembly instructions included in the same package.

For belts other than those above, please refer to the specifications overview by clicking

here.

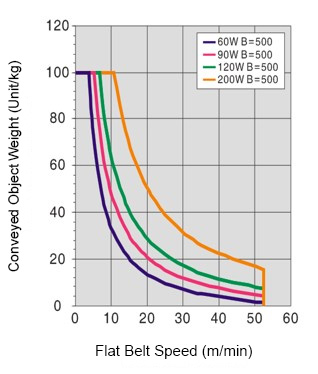

Table 1: Gearhead reduction ratio & conveying capacity (variable speed/inverter motor)

Test motor: Jingyan (J) timing pulley transmission ratio 1:1
Belt width: B = 500 mm, thickness 2.0 mm Roller center distance: L = 3000 mm

■ Gearhead reduction ratio

INV inverter type: When motor speed is 1300 rpm (50 Hz)
Reference values for flat belt speed.

Gearhead Reduction ratio	Flat belt speed (m/min)
Gearhead Reduction ratio	SCM variable speed type	INV inverter type
5	31.7 to 52.8	29.4 to 49.0
7.5	21.1 to 35.2	19.6 to 32.7
10	15.8 to 26.4	14.7 to 24.5
12.5	12.7 to 21.1	11.8 to 19.6
15	10.6 to 17.6	9.8 to 16.3
18	8.8 to 14.7	8.2 to 13.6
25	6.3 to 10.6	5.9 to 9.8
30	5.3 to 8.8	4.9 to 8.2
36	4.4 to 7.3	4.1 to 6.8
50	3.2 to 5.3	2.9 to 4.9
60	2.6 to 4.4	2.4 to 4.1
75	2.1 to 3.5	2.0 to 3.3
90	1.8 to 2.9	1.6 to 2.7
100	1.6 to 2.6	1.5 to 2.4
120	1.3 to 2.2	1.2 to 2.0
150	1.1 to 1.8	1.0 to 1.6
180	0.9 to 1.5	0.8 to 1.4

May decrease depending on load conditions

Table 2: Load and linear speed correspondence table (stepper motor)

*Reference value

Speed (rpm)	Gearhead Reduction ratio	Recommended maximum line speed (m/min)	Voltage 48 V DC (current 6 A)
			86CM45	86CM80	86CM120
			Load (kg)
100	NH	18.8	/	1.5	2.5
200	NH	28.3	/	0.5	1
200	3	12.6	8	19	23
	5	7.5	30	55	70
	10	3.8	95	100	100
	15	2.5	100	100	100
	20	1.9	100	100	100
	25	1.5	100	100	100
	30	1.3	100	100	100

Leadshine (LS) timing pulley transmission ratio 1:1
Belt width: B = 400 mm, thickness 2.0 mm Roller center distance: L = 1000 mm

Table 3: Correspondence Table of Load and Linear Speed (Servo Motor)

*Reference value

Speed (rpm)	Gear head reduction ratio	Recommended maximum linear speed (m/min)	Voltage 220 V AC
			750W
			Load (kg)
3000	NH	/	/
	3	120	25
	5	113.0	45
	10	56.5	90
	15	37.7	100
	20	28.3	100
	25	22.6	100
	30	18.8	100

Leadshine (LS) timing pulley transmission ratio 1:1
Belt width: B = 400 mm, thickness 2.0 mm Roller center distance: L = 1000 mm

Alterations

Type	-	B Belt width	-	L Pulley center distance	-	Motor parameter selection					-	Belt specification	-	Motor brand	-	Alteration
						Output power	-	Specifications	-	Reduction ratio
E-CVSA	-	300	-	1500	-	60	-	SCM	-	25	-	H20	-	G	-	MP300

Alterations

Code

Spec

Drive unit position specification

The drive unit installation position can be changed.
Ordering Code MP 180 ≤ MP ≤ L/2-120
*The minimum value of L is 615
Only the center drive type can be specified.

Mounting bracket for speed controller

SCB

Comes with a mounting bracket for the speed controller.
Ordering Code SCB

Reverse conveyor operation

Additional machining for MISUMI belt conveyor speed controller bracket

Not suitable for reverse operation when B value < 100 and L value > 1500

Reverse operation.
Ordering Code FX

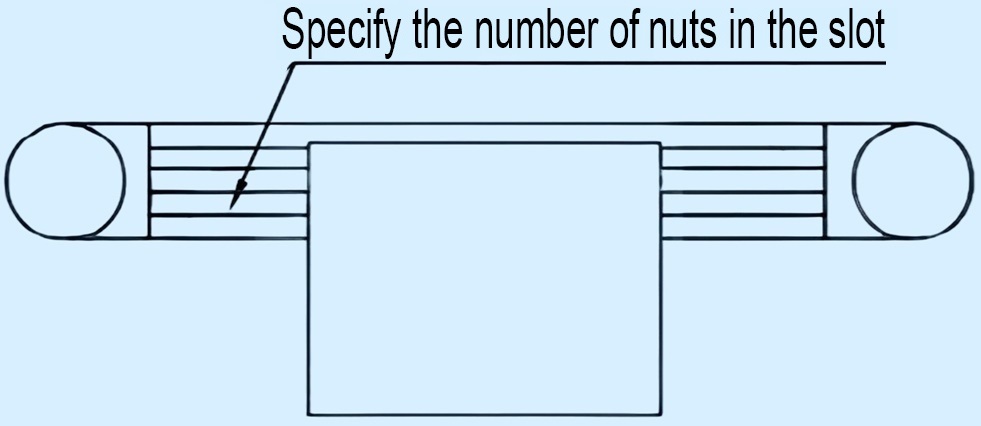

Increase the number of nuts

Select only when the standard quantity is insufficient (see dimensional drawing for standard quantity and specifications)

ANQ

Increase the number of nuts.
Ordering Code ANQ5

Code	Quantity (pcs)	Configuration type
ANQ	5 to 10	Accessories

Product Features

Feature 1: The main body of the conveyor is made of aluminum profiles, achieving a lightweight design for the entire machine.
Feature 2: The universal European standard 3060 profile makes it easy to build profile supports and is widely used in logistics lines.
Feature 3: The conveyor roller pitch offers a wide selection range and can be specified in 5 mm increments, with a maximum pitch of up to 3 meters.

Precautions

(1) Do not disassemble or modify the conveyor by yourself to avoid performance issues.
(2) Due to differences in the operating environment, MISUMI conveyors do not come with a power supply, cables, or switches.
(3) Due to issues with the structural strength and deformation of the conveyor body, please do not exceed the allowable load or length and width when selecting a model.
(4) The motor is available in two voltage specifications: single-phase 220 V and three-phase 220 V. Please select the voltage according to your requirements.
(5) Belt misalignment is a normal occurrence and is not considered a quality issue. Adjusting for misalignment is a part of routine maintenance.
(6) Misalignment tolerance: The distance between the belt and both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays exactly in the center of the aluminum frame. For the belt misalignment adjustment method, click

here.
(7) If the direction of operation is opposite to the standard direction, abnormal conditions such as belt misalignment, belt damage, noise, or jamming may occur. Please avoid using it in this way. (The standard transport direction is shown below)
MISUMI belt conveyor standard transport direction

MISUMI belt conveyor standard transport direction

Application Example

Equipment Manufacturing	Semiconductors	Lithium batteries

Food	Electronics and Electrical Appliances	Robotics

Related Documents Click

here

(1) Motor wiring method
(2) Flat belt specifications list
(3) Belt misalignment adjustment method
(4) Conveyor body weight

: 30; 45; 60

Part Number
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-D20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-F15-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-H20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-J-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-O14-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-S13-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-U13-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-V20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-W20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-[3,5,10,15,20,25,30]-Y20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-D20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-F15-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-H20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-J-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-O14-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-S13-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-U13-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-V20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-W20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-[EC,MC]-NH-Y20-[LS,R]
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-D20-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-F15-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-H20-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-J-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-O14-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-S13-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-U13-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-V20-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-W20-R
E-CVSA75-[80-500/5]-[600-3000/5]-750-NM-NH-Y20-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-D20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-F15-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-H20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-J-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-O14-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-S13-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-U13-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-V20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-W20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-Y20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-D20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-F15-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-H20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-J-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-O14-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-S13-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-U13-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-V20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-W20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-Y20-[LS,R]
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-D20-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-F15-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-H20-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-J-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-O14-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-S13-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-U13-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-V20-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-W20-R
E-CVSA86-[80-500/5]-[600-3000/5]-[4.5,8,12]-NM-NH-Y20-R

Standard Unit Price	Minimum order quantity	Days to Ship	Meandering Prevention	Type
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation
-	1 Piece(s)	13 Day(s) or more	Pulley crowned for meandering prevention	Arc-shaped roller anti-deviation

Basic Information

Drive Module Position	Center Drive	Belt Type	Flat Belt	Motor Voltage	Single-phase 200 V
Max. Mass of Conveyed Material(kg)	100	Tail Roller Dia. D (Tail Transfer Part R)(mm)	60	Drive Roller Dia.(mm)	60
Maximum Conveying Speed(m/min)	52.8

Configure

160 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Meandering Prevention
- With Meandering Prevention Crosspiece
- Pulley crowned for meandering prevention
Clear
Type
- Arc-shaped roller anti-deviation
- Belt with guide strip for anti-deviation
Clear
type
- E-CVSA
- E-CVSA75
- E-CVSA86
- E-CVSB
- E-CVSB75
- E-CVSB86
Clear
