Full Belt Conveyor, Head Drive, Backlight Type, Pulley Dia. 50 mm

Please follow the selection steps to , choose the type and parameters, and then place your order.

	Type	-	W	-	L	-	E	-	F	-	Motor Selection					-	Belt Specification	-	Motor Manufacturer Selection	-	Light Color
											Output Power	-	Specifications	-	Gear Head Reduction Ratio
When there is no belt When there is no motor or gear head	E-CVBTB E-CVBTB E-CVBTB	- - -	100 100 100	- - -	1000 1000 1000	- - -	90 90 90	- - -	100 100 100	- - -	25 25 25	- - -	SCM INV NM	- - -	25 25 NH	- - -	K9 J K9	- - -	G G R	- - -	H H H

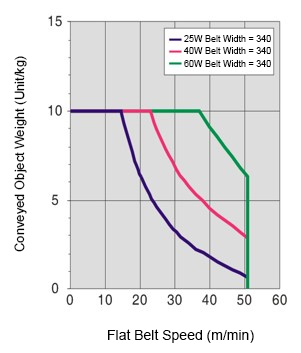

■ Specifications

Type	Type	Machine Characteristics

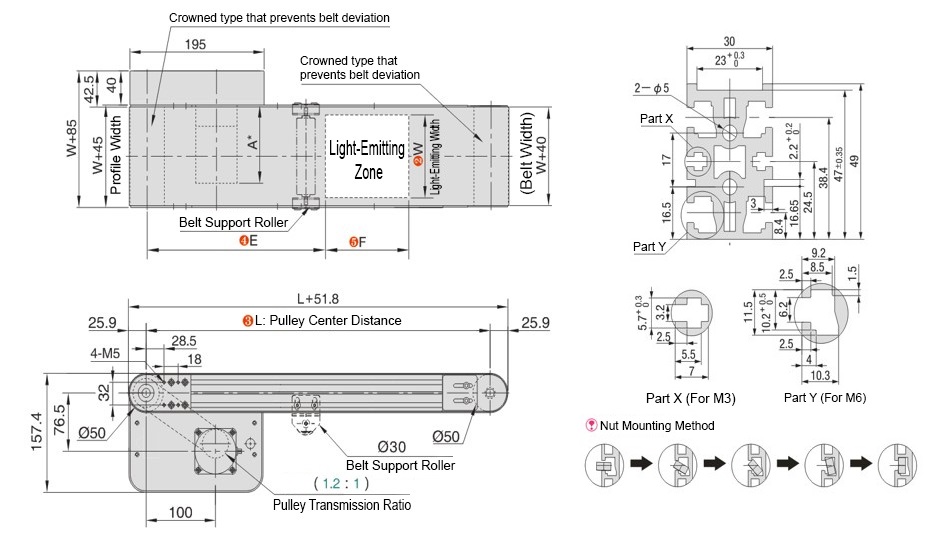

E-CVBTB	Arc-shaped roller anti-deviation	Good belt flatness and high surface accuracy


■ Speed control/inverter type

Type	W Selection	L Specified unit: 5 mm	E Light Source Position	F Light Source Length	Motor Selection			Belt Specification (Material is generally PU)	Motor	Light Color
					Torque (N⋅m)//Power (W)	Specifications	Gear Head Reduction Ratio
E-CVBTB (Arc-shaped roller type)	50	540 to 3000	80 to 2500	50 100	25 40 60 (Power W)	SCM (Single-phase 220 V variable speed type)	5 7.5 10 12.5 15  18 25 30 36 50 60 75 90 100 120 150 180	K9 (Translucent belt · White) J (No belt)	G (Taibang motor) J (Jingyan motor)	H (White) R (Red) G (Green) U (Blue) W (Infrared) Z (Ultraviolet)
	100			100 150
	150			200 250		INV (Three-phase 220 V inverter type)
	200			200 250
	250			250 300		NM (No motor)	NH (No gear head)		R (No motor or gear head)
	300			300 400

When selecting an INV variable frequency motor, the inverter is delivered as an accessory.

■ Stepper type

Type	W Selection	L Specified unit: 5 mm	E Light Source Position	F Light Source Length	Motor selection			Belt Specification (Material is generally PU)	Motor	Light Color
					Torque (N⋅m)//Power (W)	Specifications/Drive Method	Gear Head Reduction Ratio
E-CVBTB86 (Arc-shaped roller type)	50	540 to 3000	80 to 2500	50 100	4.5 8.0 (86 stepper type / torque N⋅m)	MC (Pulse general type) IO (IO control type) EC (EtherCAT bus) RS (RS485)	3 5 10 NH (No gearhead) Note: 3 to 10 are single-stage	K9 (Translucent belt · White) J (No belt)	LS (Leadshine motor)	H (White) R (Red) G (Green) U (Blue) W (Infrared) Z (Ultraviolet)
	100			100 150
	150			200 250
	200			200 250
	250			250 300		NM (No motor)			R (No motor, driver, or gearhead)
	300			300 400

When using an 86 stepper motor with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)
When using an 86 stepper motor with a torque of 8.0 N⋅m, the driver supports two types of input voltages: 24 V DC to 70 V DC or 48 V AC to 70 V AC. (Power supply not included)

■ Servo type

Type	W Selection	L Specified unit: 5 mm	E Light Source Position	F Light Source Length	Motor Selection			Belt Specification (Material is generally PU)	Motor	Light Color
					Torque (N⋅m)//Power (W)	Specifications/Drive Method	Gear Head Reduction Ratio
E-CVBTB4 E-CVBTB75 (Arc roller type)	50	540 to 3000	80 to 2500	50 100	400 750 (Servo type, power W)	MC (Pulse general type) EC (EtherCAT bus)	3 5 10 NH (No gearhead) Note: 3 to 10 are single-stage	K9 (Translucent belt · White) J (No belt)	LS (Leadshine motor)	H (White) R (Red) G (Green) U (Blue) W (Infrared) Z (Ultraviolet)
	100			100 150
	150			200 250
	200			200 250
	250			250 300		NM (No motor)			R (No motor, driver, or gearhead)
	300			300 400

When selecting a servo motor, the standard supply voltage for the motor and driver is single-phase 220 V by default. In conveyor applications, a motor rated speed of 3000 r/min is used as the standard for calculating linear speed. During use, control can be customized through upper-level programming.
The belt thickness is the nominal thickness; the actual thickness is one-tenth of that, in millimeters.
When selecting without motor and without gear head, the motor mounting hole spacing will vary depending on the motor output power.
When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble according to the assembly instructions included in the same package.
Backlit belt width B = illuminated width W + 40. For detailed specifications, please refer to the specification overview and click here.



Feature 1: Lightweight model with edge-sealed design for stable and reliable structure.
Feature 2: Equipped with a dedicated light-transmitting belt and a parallel surface light source under the belt to meet high-precision inspection requirements.
Feature 3: Widely used in inspection scenarios such as appearance, dimensions, and defects.

(1) Do not disassemble or modify the conveyor by yourself to avoid performance issues.
(2) Due to differences in the operating environment, MISUMI conveyors do not come with a power supply, cables, or switches.
(3) Due to issues with the structural strength and deformation of the conveyor body, please do not exceed the allowable load or length and width when selecting a model.
(4) The motor is available in two voltage specifications: single-phase 220 V and three-phase 220 V. Please select the voltage according to your requirements.
(5) Belt misalignment is a normal occurrence and is not considered a quality issue. Adjusting for misalignment is a part of routine maintenance.
(6) Misalignment tolerance: The distance between the belt and both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays exactly in the center of the aluminum frame. For the belt misalignment adjustment method, click here.
(7) If the direction of operation is opposite to the standard direction, abnormal conditions such as belt misalignment, belt damage, noise, or jamming may occur. Please avoid using it in this way. (The standard transport direction is shown below)
