Plastic Sprocket for Modular Belt 2400

Check FAQ of this product (2 items)

MISUMI

MiSUMi Economy

MISUMI

Part Number

Configured Part Number is shown.

Add
Download
Product Details
CAD Data unavailable

Drawing/Specifications
Part Numbers

Product Overview

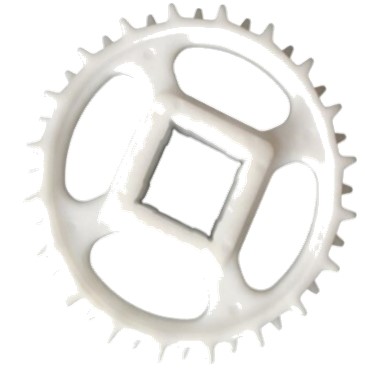

The 2400 series sprocket is an engineering plastic injection-molded sprocket specifically designed to match the 2400 series modular belt with a 25.4 mm pitch. It is integrally injection-molded from food-grade polymer material and meshes precisely with the belt hinges. It is mainly used for driving, reversing, and tensioning positions in modular belt conveyors, and is widely applied in lightweight and hygienic conveying equipment for food, beverage, baking, pharmaceuticals, and small package industries.

Dimensional Drawing

d D	14 25
The illustrated product has 20 teeth

Material Specifications

Material: Polyoxymethylene (POM)
Color: White
Processing method: Injection molding

Specification Table

		Type	-	Application + Processing Method	-	Category	-	Number of Teeth	-	Hole Shape + Diameter
		EA	-	MBMD	-	2400	-	16T	-	S40

Part Number							D (mm)	Weight (g)
Type	Application	Processing Method	Category	Number of Teeth	Hole Shape	Hole Diameter d (mm)
EA	MB: Sprocket for mesh belt	MD (Injection molding)	2400	16T (16 teeth)	S (round hole)	40	129.5	400
				20T (20 teeth)			163	400

* Shaft bore diameter tolerance：±0.05 mm

: 30; 45; 60

Part Number
EA-MBMD-2400-16T-S40
EA-MBMD-2400-20T-S40

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship	Number of Teeth	Hole Diameter (mm)
	-	1 Piece(s)		18 Day(s) or more	16 teeth	40
	-	1 Piece(s)		18 Day(s) or more	20 teeth	40

Basic Information

Model	Type 2400

Configure

2 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Number of Teeth
- 16 teeth
- 20 teeth
Clear
Hole Diameter(mm)
40
Clear

Days to Ship

All

18 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Frequently asked question (FAQ)

Question: Sprocket tooth profile wears out too quickly, causing skipped teeth or the chain catching on the belt?: Answer: This is often due to excessive tension or the presence of abrasives in the environment (such as sand or debris). Injection-molded materials are relatively soft, so once worn, the meshing accuracy will decrease. Solution: Regularly check the tension of the chain belt and clean any residual foreign objects between the sprocket teeth.
