Plastic Sprocket for Modular Belt 800

Check FAQ of this product (2 items)

MISUMI

MiSUMi Economy

MISUMI

Part Number

Configured Part Number is shown.

EA-MBMD-800-10T-S40

Add
Download
Product Details
CAD Data unavailable

Drawing/Specifications
Part Numbers

Product Overview

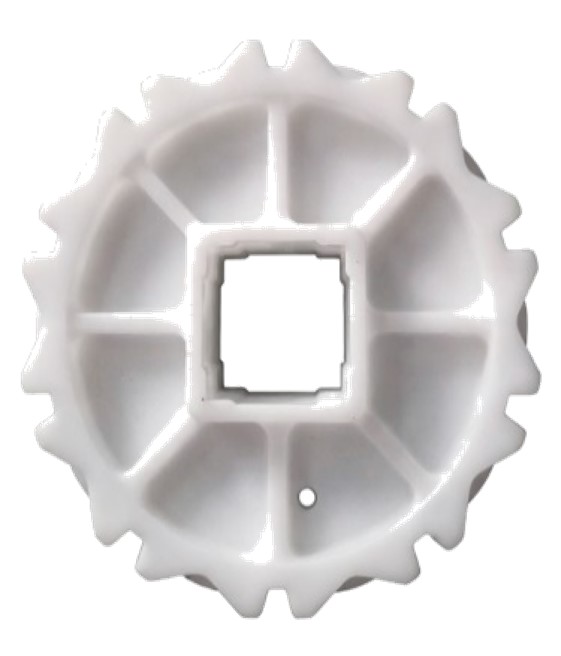

The 800 sprocket is a drive sprocket specifically designed to match the 800 series modular belt with a 50.8 mm pitch. It is made from high-strength engineering plastic using integrated injection molding, with tooth profiles that perfectly match the belt hinges. It is mainly used at the drive end, tensioning end, and steering mechanism of conveyors. With high strength, stable transmission, and excellent wear resistance, it is widely used in medium to heavy-duty conveying applications such as food, beverage, packaging, and logistics sorting. It is the standard matching drive component for the 800 series modular belt.

Dimensional Drawing

d D	27 51 41

Material Specifications

Material: POM
Color: White
Processing method: Injection molding

Specification Table

		Type	-	Application + Processing Method	-	Category	-	Number of Teeth	-	Hole Shape + Diameter
		EA	-	MBMD	-	800	-	10T	-	S40

Part Number							D (mm)	Weight (g)
Type	Application	Processing Method	Category	Number of Teeth	Hole Shape	Hole Diameter d (mm)	D (mm)	Weight (g)
EA	MB: Sprocket for mesh belt	MD (Injection molding)	800	10T (10 teeth)	S (square hole)	40	164	500

* Shaft bore diameter tolerance：±0.05 mm

: 30; 45; 60

Part Number
EA-MBMD-800-10T-S40

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship	Hole Diameter (mm)
	-	1 Piece(s)		18 Day(s) or more	40

Basic Information

Model	Type 800	Number of Teeth	10 teeth

Configure

1 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Hole Diameter(mm)
40
Clear

Days to Ship

All

18 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Frequently asked question (FAQ)

Question: Are there cracks or broken teeth at the root of the sprocket teeth?: Answer: The 800 series is typically used for heavy-duty conveying. If there are frequent instantaneous starts and stops or sudden increases in load, the tips of the injection-molded teeth will be subjected to significant shearing force, which can cause them to break. Recommendation: Add a soft start function to the motor controller and ensure that the selected sprocket has a sufficient number of teeth (the more teeth, the more evenly the force is distributed).
Question: Does the sprocket experience severe polygonal effects (vibration) during operation?: Answer: The 800 series has a large pitch (50.8 mm). If a sprocket with too few teeth is selected (such as 6 or 8 teeth), the mesh belt will move up and down during engagement. Recommendation: If space allows, give priority to sprockets with more teeth (such as 10 or 12 teeth or more) to improve operational stability.
