Timing Belt Conveyor, Single Track, Center Driver, Pulley Dia. 20mm
Click this image to zoom it.
Move the mouse over the image to zoom
- Economy
MiSUMi Economy
Economy series Belt Conveyor
(i)Caution
- This single-phase motor is specified for 220V ±10%,50Hz/60Hz. Please ensure it is used within the permissible voltage range.
Part Number
Configured Part Number is shown.
Product overview
Economical conveyor with a reasonable structure design, enabling localized production. Multiple types of models are available to meet customers' design requirements for different usage scenarios, providing better selection options.
E-CVSTR: This model uses a timing belt and is suitable for use in tight spaces.
E-CVSTR: This model uses a timing belt and is suitable for use in tight spaces.
Product feature
Feature 1: The conveyor pulley pitch can be specified in 5 mm units.
Feature 2: Narrow body design, suitable for use in tight spaces.
Feature 3: The conveyor body uses an aluminum profile, achieving overall lightweight construction.
Feature 4: Single row narrow-width timing belt with knife-edge transition joint design, widely used for conveyance of small type products and supports precise positioning conveyance.
Feature 2: Narrow body design, suitable for use in tight spaces.
Feature 3: The conveyor body uses an aluminum profile, achieving overall lightweight construction.
Feature 4: Single row narrow-width timing belt with knife-edge transition joint design, widely used for conveyance of small type products and supports precise positioning conveyance.
Specification overview
■ Material table
■ Timing belt center distance - pulley center distance correspondence table
| Part name |  Material |  Surface treatment |
| Profile | Aluminum | Electrophoresis |
| Motor cover | Aluminum | Painted baked paint |
| Pulley holder | Aluminum | Painted baked paint |
■ Timing belt center distance - pulley center distance correspondence table
| Model | Timing belt center distance B | Pulley center distance L | ||||
| L330 to 400 | L405 to 500 | L505 to 600 | L605 to 900 | L905 to 2000 | ||
| E-CVSTR | 10 | ● | ● | ● | ● | ● |
| 20 | ● | ● | ● | ● | ● | |
Dimensional drawing
E-CVSTR-10
Motor specification: 6W
E-CVSTR-20
Motor specification: 6W
When L ≤ 600, there is no countersunk hole at position F, and four nuts are pre-installed on one side in the aluminum profile groove;
When L>600, a countersunk hole for inserting nuts is reserved by default at position F, and no additional machining is required.
When selecting a speed control motor, the speed controller is supplied as an accessory, is not installed on the main unit, and does not include a mounting bracket.
If a bracket for the speed controller is required, please use the alteration (SCB).
Motor specification: 6W
E-CVSTR-20
Motor specification: 6W
When L ≤ 600, there is no countersunk hole at position F, and four nuts are pre-installed on one side in the aluminum profile groove;When L>600, a countersunk hole for inserting nuts is reserved by default at position F, and no additional machining is required.
When selecting a speed control motor, the speed controller is supplied as an accessory, is not installed on the main unit, and does not include a mounting bracket.If a bracket for the speed controller is required, please use the alteration (SCB).
Enlarged view of profile cross-section (left and right symmetrical)
Enlarged view of profile cross-section (left and right symmetrical)
Standard nut allocation table for profile groove: L value (center distance unit: mm)Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.
Enlarged view of profile cross-section (left and right symmetrical)
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model. | L330 to 999 | L1000 to 1499 | L1500 or more | Position | Specification | Configuration type |
| 4PCS | 6PCS | 8PCS | Section I, Section X (left and right) | M3 (hex) | Accessory |
| 4PCS | 6PCS | 8PCS | J section, Y section (left and right) | M6 (square) | Accessory |
■ A dimension detailed table (speed regulation/inverter motor)
| Motor power | Motor | Reduction ratio | A | |
| Specification | Manufacturer | |||
| 6W | Speed regulation type | GPG | 3 to 18 | L118 |
| 25 to 180 | L128.5 | |||
| JSCC | 3 to 18 | L118 | ||
| 25 to 180 | L130 | |||
■ A dimension detailed table (stepper motor)
■ A dimension detailed table (servo motor)
■ A dimension detail (planetary reducer)
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
| Name | Motor model | A |
| Leadshine stepper motor (open loop) | 57CM23 | L76 |
| 57CM26 | L85 | |
| 57CM31 | L88 |
■ A dimension detailed table (servo motor)
| Servo motor | Supported motor specification | A |
| 400W servo motor | Leadshine servo motor | L90.1 |
■ A dimension detail (planetary reducer)
| Gear ratio (x) | Supported motor specification | A |
| 3 5 10 | Equipped with a 400W servo motor | L77 |
| 3 5 10 | Equipped with a 57 stepper motor | L77 |
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.Specification table
Please follow the selection procedure
to
, select the type and parameters, and then proceed with ordering.
■ Specification table
■ Speed control/inverter type
■ Stepper type
When using a 57 stepper, the driver supports an input voltage of 24 V DC to 48 V DC. (Power supply not included)
■ Servo type
When a servo motor is selected, the motor and driver are supplied by default with a single-phase 220 V power supply. In conveyor applications, a motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During use, control can be customized through host computer programming.
When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.
When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
For belts other than those above, please refer to the specification overview by clicking
here.
Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
Table 2: Correspondence between load and linear speed (stepper motor)
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1
Timing belt width: 10 mm, thickness 2.2 mm Roller center distance: L = 1000 mm
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1
Timing belt width: 20 mm, thickness 2.2 mm Roller center distance: L = 1000 mm
Table 3: Correspondence table of load and linear speed (servo motor)
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1
Timing belt width: 10 mm, thickness: 2.2 mm Roller center distance: L = 1000 mm
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1
Timing belt width: 20 mm, thickness 2.2 mm Roller center distance: L = 1000 mm
The conveying capacity will vary depending on the operating condition.
The chart shows the transport capacity under horizontal conditions.
When selecting a speed regulation motor, the transmission capacity does not increase as the speed decreases during operation.
When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.
to
, select the type and parameters, and then proceed with ordering. | Type | - |  B | - |  L | - | Motor selection | - |  Belt specification | - | Motor manufacturer selection | ||||
 Output power | - |  Specification | - |  Gear head reduction ratio | |||||||||||
| When there is no pulley When there is no motor or gear head | E-CVSTR E-CVSTR E-CVSTR | - - - | 10 10 10 | - - - | 1000 1000 1000 | - - - | 6 6 6 | - - - | SCM SCM NM | - - - | 25 30 NH | - - - | H J H | - - - | G G R |
■ Specification table
| Type | Type | Machine characteristics |
| E-CVSTR | Light load retaining edge guiding type | Tooth surface lining cloth for noise reduction, supports precise positioning conveyance |
■ Speed control/inverter type
| Type | B | L Specified unit 5 mm | Motor selection | Belt specification (Material defaults to PU) | Motor | ||
| Output power (W) | Specification | Gear head reduction ratio | |||||
| E-CVSTR | 10 | 330 to 2000 | 6 | SCM (Single-phase 220 V speed regulation type) | 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | G(GPG - Taiban motor) J(JSCC - Jingyan motor) |
| NM(without motor) | NH(without gear head) | R(without motor and gear head) | |||||
■ Stepper type
| Type | B | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m) Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVSTR57 | 10 20 | 330 to 2000 | 2.3 2.6 3.1 (57 stepper type / torque N⋅m) | MC(pulse universal type) IO(IO control type) EC(bus EtherCAT) RS(RS485) | 3 5 10 NH(without gear head) Caution: 3 to 10 are single pole | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | LS (Leisai motor) |
| NM(No motor · drive) | R (without motor, driver, and gear head) | ||||||
When using a 57 stepper, the driver supports an input voltage of 24 V DC to 48 V DC. (Power supply not included)■ Servo type
| Type | B | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m) Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
E-CVSTR4 | 10 20 | 330 to 2000 | 400 (servo type power W) | MC(pulse universal type) EC(Bus EtherCAT) | 3 5 10 NH(without gear head) Caution: 3 to 10 are single pole | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | LS (Leadshine motor) |
| NM(No motor · drive) | R (without motor, driver, and gear head) | ||||||
When a servo motor is selected, the motor and driver are supplied by default with a single-phase 220 V power supply. In conveyor applications, a motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During use, control can be customized through host computer programming.When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.For belts other than those above, please refer to the specification overview by clicking
here.Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1
Timing belt width: 10 mm, thickness 2.2 mm Roller center distance: L = 2000 mm
Timing belt width: 20 mm, thickness 2.2 mm Roller center distance: L = 2000 mm
Test motor: JSCC (J) timing pulley transmission ratio 1:1Timing belt width: 10 mm, thickness 2.2 mm Roller center distance: L = 2000 mm
Timing belt width: 20 mm, thickness 2.2 mm Roller center distance: L = 2000 mm
| Gear head reduction ratio | Timing belt speed (m/min) |
| 12.5 | 6.5 to 10.9 |
| 15 | 5.4 to 9.0 |
| 18 | 4.5 to 7.5 |
| 25 | 3.3 to 5.4 |
| 30 | 2.7 to 4.5 |
| 36 | 2.3 to 3.8 |
| 50 | 1.6 to 2.7 |
| 60 | 1.4 to 2.3 |
| 75 | 1.1 to 1.8 |
| 90 | 0.9 to 1.5 |
| 100 | 0.8 to 1.4 |
| 120 | 0.7 to 1.1 |
| 150 | 0.5 to 0.9 |
| 180 | 0.5 to 0.8 |
Table 2: Correspondence between load and linear speed (stepper motor)
*Reference value
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 24 V DC (current 5 A) | ||
| 57CM23 | 57CM26 | 57CM31 | |||
| Load (kg) | |||||
| 100 | NH | 10 | 4.5 | 5 | 5 |
| 200 | 20 | 3.5 | 4 | 5 | |
| 200 | 3 | 6.7 | 5 | 5 | 5 |
| 5 | 4.0 | 5 | 5 | 5 | |
| 10 | 2.0 | 5 | 5 | 5 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 10 mm, thickness 2.2 mm Roller center distance: L = 1000 mm
*Reference value
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 24 V DC (current 5 A) | ||
| 57CM23 | 57CM26 | 57CM31 | |||
| Load (kg) | |||||
| 100 | NH | 10 | 4.5 | 5 | 8 |
| 200 | 20 | 3.5 | 4 | 6.5 | |
| 200 | 3 | 6.7 | 10 | 10 | 10 |
| 5 | 4.0 | 10 | 10 | 10 | |
| 10 | 2.0 | 10 | 10 | 10 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 20 mm, thickness 2.2 mm Roller center distance: L = 1000 mm
Table 3: Correspondence table of load and linear speed (servo motor)
*Reference value
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 220 V AC |
| 400W | |||
| Load (kg) | |||
| 3000 | NH | 40 | 5 |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 10 mm, thickness: 2.2 mm Roller center distance: L = 1000 mm
*Reference value
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 220 V AC |
| 400W | |||
| Load (kg) | |||
| 3000 | NH | 40 | 6.5 |
| 3 | 40 | 10 | |
| 5 | 40 | 10 | |
| 10 | 30 | 10 |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 20 mm, thickness 2.2 mm Roller center distance: L = 1000 mm
The conveying capacity will vary depending on the operating condition.The chart shows the transport capacity under horizontal conditions.When selecting a speed regulation motor, the transmission capacity does not increase as the speed decreases during operation.When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.Alteration
 | Type | - | B | - | L | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Alteration | ||||
| Output power | - | Specification | - | Gear head reduction ratio | |||||||||||||
| E-CVSTR | - | 10 | - | 1000 | - | 6 | - | SCM | - | 25 | - | H | - | G | - | MP200 | |
| Alterations | Code | Spec | ||||||

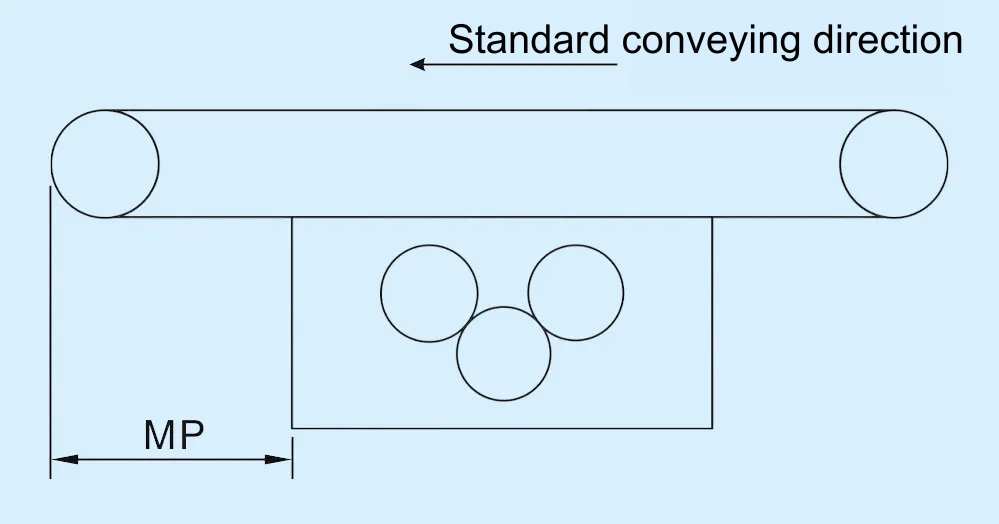

Driving part position specification | MP | The motor installation position can be changed. Ordering code MP350 180 ≤ MP ≤ L-255 *The minimum value of L is 435 Only the center drive type can be specified. | ||||||
Mounting bracket for speed controller | SCB | Comes with a mounting bracket for the speed controller. Ordering code SCB | ||||||
Conveyor belt reverse conveyance | FX | Reverse conveyance. Ordering code FX | ||||||
Conveyor belt bidirectional conveyance Only supports models with guide strips | SX | Bidirectional conveyance. Ordering codeSX | ||||||
Increase the number of nuts in the profile groove. Select only when the standard quantity is insufficient (see dimensional drawing information for standard quantity and specification) | ANQ | Increase the quantity of nuts in the profile groove. Ordering codeANQ5
|
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-CVSTR4-[10,20]-[330-2000/5]-400-[EC,MC]-[3,5,10]-[D,H,J,S]-[LS,R] |
| E-CVSTR4-[10,20]-[330-2000/5]-400-[EC,MC]-NH-[D,H,J,S]-[LS,R] |
| E-CVSTR4-[10,20]-[330-2000/5]-400-NM-NH-[D,H,J,S]-R |
| E-CVSTR57-[10,20]-[330-2000/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-[D,H,J,S]-[LS,R] |
| E-CVSTR57-[10,20]-[330-2000/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-[D,H,J,S]-[LS,R] |
| E-CVSTR57-[10,20]-[330-2000/5]-[2.3,2.6,3.1]-NM-NH-[D,H,J,S]-R |
| E-CVSTR-[10,20]-[330-2000/5]-6-[NM,SCM]-NH-[D,H,J,S]-[G,J,R] |
| E-CVSTR-[10,20]-[330-2000/5]-6-SCM-[12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[D,H,J,S]-[G,J,R] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conveyance Length | Belt Width/Belt Pitch B (mm) | Motor Output (W) | Specifications | Gear Head Reduction Ratio | Belt Specifications | Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 | - | - | - | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 | - | - | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 | - | NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 | - | - | - | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 | - | - | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 | - | NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 ～ 20 | 6 | SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 330 ～ 2000 | 10 ～ 20 | 6 | SCM (Single-phase 220 V Speed Control Type) | 12.5 ～ 180 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) |
Loading...
Application Industry
| Equipment Production | Semiconductor | Lithium Battery | ||
 |  |  | ||
| Food | Electronic & Electrical | Robot | ||
 |  |  |
Precaution
(1) In application, due to issues with the structural strength of the machine type and the amount of body deformation, please do not exceed the load specification or the length and width when selecting a model. Since the turning radius of the timing belt is limited, the timing belt tooth profile specification should be kept within T5.
(2) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(3) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(4) If operated in the opposite direction of the standard running direction, phenomena such as belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
(2) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(3) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(4) If operated in the opposite direction of the standard running direction, phenomena such as belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
Related Documents Click here
here Related product
| Economy conveyor timing belt single row head drive pulley diameter 19 mm, 20 mm | Economy conveyor timing belt double row middle drive Pulley diameter 30 mm | Economy conveyor timing belt double row middle drive pulley diameter 50 mm | ||
 |  |  | ||
| Representative model: E-CVSTC | Representative model: E-CVGTN | Representative model: E-CVGTP |
Basic Information
| Drive Module Position | Center Drive | Belt Type | Timing belt | Meandering Prevention | Pulley crowned for meandering prevention |
|---|---|---|---|---|---|
| Features | Width Narrow | Motor Voltage | 220 V | Max. Mass of Conveyed Material(kg) | 10 |
| Tail Roller Dia. D (Tail Transfer Part R)(mm) | 20 | Drive Roller Dia.(mm) | 20 | Type | Light load retaining edge guiding type |
| Maximum conveying speed of this series(m/min) | 40 |
Specification/Dimensions
-
Conveyance Length
-
Belt Width/Belt Pitch B(mm)
-
Motor Output(W)
-
Specifications
- SCM (Single-phase 220 V Speed Control Type)
- NM (No Motor)
-
Gear Head Reduction Ratio
-
Belt Specifications
- Anti-static · Black Double-sided Fabric
- For Sliding · Green Double-sided Tape
- General Use · White Tooth Surface Cloth Tape
- No belt
-
Motor
- G (GPG Motor)
- J (JSCC Motor)
- R (No Motor · Gear Head)
-
type
- E-CVSTR
- E-CVSTR4
- E-CVSTR57
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 17 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: Can the conveyor's operating direction be set to reverse?
- Answer: The current conveyor does not support reverse operation. If reverse operation is required, please contact customer service for customization.
- Question: Conveyor belt deviation is a product characteristic. How can the frequency of deviation be reduced?
- Answer: The main methods to prevent conveyor belt deviation are arc-shaped rollers and belts with guide strips. Curved rollers are suitable for lengths up to 2000 mm; belts with guide strips are suitable for long distances over 2000 mm.
- Question: If the existing standard models cannot meet your requirements and you need to modify the model but are concerned about debugging issues, do you have any good suggestions?
- Answer: For this situation, please contact customer service for customization to meet your individual needs.
- Question: If I need a stepper motor or a servo motor, can you provide them?
- Answer: You can select a conveyor model without a motor or speed controller and purchase a motor separately for assembly.
Additional Products in this Category
- Flat Belt Conveyor SV Series - With Meandering Prevention Crosspiece, Center Drive, 2-Groove Frame (Pulley Dia. 30mm)
- Flat Belt Conveyor High Power Type - With Meandering Prevention Crosspiece, Center Drive, 3-Groove Frame (Pulley Dia. 30mm)
- Timing Belt Conveyors Narrow Type - Single Track, Center Drive, 2- / 3-Groove Frame
- Flat Belt Conveyors - Center Drive, 2-Groove Frame (Pulley Dia. 30mm)
- Flat Belt Conveyors - Motor Mounting Position Selectable - Head Drive, 2-Groove Frame
- Timing Belt Conveyor, Dual Track, Center Driver, Pulley Dia. 30mm
- Job conveyor roller edge type belt conveyor
- Belt Conveyors Plastic Chain Conveyor (2-Point Carrier Type)
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
