Timing Belt Conveyor, Dual Track, Center Driver, Pulley Dia. 30mm
Click this image to zoom it.
Move the mouse over the image to zoom
- Economy
MiSUMi Economy
Economy series Belt Conveyor
(i)Caution
- This single-phase motor is specified for 220V ±10%,50Hz/60Hz. Please ensure it is used within the permissible voltage range.
Part Number
Configured Part Number is shown.
Product overview
Economical conveyor with a reasonable structure design, enabling localized production. Multiple types of models are available to meet customers' design requirements for different usage scenarios, providing better selection options.
E-CVGTN: Double-row timing belt conveyor, utilizing a motor + timing belt driven method to achieve synchronous rotation of two timing belts. Suitable for conveyor pallet transfer and integration into equipment.
E-CVGTN: Double-row timing belt conveyor, utilizing a motor + timing belt driven method to achieve synchronous rotation of two timing belts. Suitable for conveyor pallet transfer and integration into equipment.
Product feature
Feature 1: Simplifies the belt replacement step, improving maintenance.
Feature 2: The conveyor body uses an aluminum profile, achieving an overall lightweight design.
Feature 3: The center distance of the timing belt can be specified in 5 mm units, and the pitch between pulleys can also be specified in 5 mm units.
Feature 4: Double-row narrow-width tooth profile belt, suitable for conveyance of jig pallet products, supports precise positioning conveyance.
Feature 2: The conveyor body uses an aluminum profile, achieving an overall lightweight design.
Feature 3: The center distance of the timing belt can be specified in 5 mm units, and the pitch between pulleys can also be specified in 5 mm units.
Feature 4: Double-row narrow-width tooth profile belt, suitable for conveyance of jig pallet products, supports precise positioning conveyance.
Specification overview
■ Material table
■ Timing belt center distance - pulley center distance correspondence table
| Part name |  Material |  Surface treatment |
| Profile | Aluminum | Electrophoresis |
| Motor cover | Aluminum | Painted baked paint |
| Pulley holder | Aluminum | Painted baked paint |
■ Timing belt center distance - pulley center distance correspondence table
| Model | Timing belt center distance B | Pulley center distance L | |||||
| L365 to 500 | L505 to 600 | L605 to 800 | L805 to 900 | L905 to 1000 | L1005 to 2000 | ||
| E-CVGTN | 80 to 110 | ● | ● | ● | ● | ● | ● |
| 115 to 160 | ● | ● | ● | ● | ● | ● | |
| 165 to 210 | ● | ● | ● | ● | ● | ● | |
| 215 to 260 | ● | ● | ● | ● | ● | ● | |
| 265 to 300 | ● | ● | ● | ● | ● | ● | |
Dimensional drawing
E-CVGTNMotor specification: 6W*
Support assembly notes:
When L < 1000, there are two sets of support assemblies in total.
When L is 1000 to 1500, there are three sets of support assemblies in total.
When L > 1500, there are four sets of support assemblies in total.
When L ≤ 700, there is no countersunk hole at position F, and four nuts are pre-installed on one side inside the aluminum profile groove.
When L > 700, a countersunk hole for nut insertion is reserved by default at position F, and no additional machining is required.
When selecting a speed control motor, the speed controller will not be installed on the main unit, and no mounting bracket is included.
If a bracket for the speed controller is required, please use additional machining (SCB).
*Differences in power only affect the motor size. For the A dimension, please refer to the table below; the external dimensions of the other components remain the same.
Support assembly notes:When L < 1000, there are two sets of support assemblies in total.
When L is 1000 to 1500, there are three sets of support assemblies in total.
When L > 1500, there are four sets of support assemblies in total.
When L ≤ 700, there is no countersunk hole at position F, and four nuts are pre-installed on one side inside the aluminum profile groove.When L > 700, a countersunk hole for nut insertion is reserved by default at position F, and no additional machining is required.
When selecting a speed control motor, the speed controller will not be installed on the main unit, and no mounting bracket is included.If a bracket for the speed controller is required, please use additional machining (SCB).
*Differences in power only affect the motor size. For the A dimension, please refer to the table below; the external dimensions of the other components remain the same.
Enlarged view of profile cross-section (left and right symmetrical)
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.| L365 to 999 | L1000 to 1499 | L1500 or more | Position | Specification | Configuration type |
| 4PCS | 6PCS | 8PCS | Section I (left and right) | M3 (hex) | Accessory |
| 4PCS | 6PCS | 8PCS | Section J (left and right) | M6 (square) | Accessory |
■ Detailed A dimension table (speed regulation/inverter motor)
| Motor power | Motor | Reduction ratio | A | |
| Specification | Manufacturer | |||
| 6W | Speed regulation type | GPG | 3 to 18 | L118 |
| 25 to 180 | L128.5 | |||
| JSCC | 3 to 18 | L118 | ||
| 25 to 180 | L130 | |||
| 25W | Inverter type | GPG | 3 to 18 | L118 |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L141 | |||
| Inverter type | JSCC | 3 to 18 | L119 | |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L140 | |||
■ A dimension detail table (stepper motor)
■ A dimension detailed table (servo motor)
■ A dimension detail table (planetary reducer)
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
| Name | Motor model | A |
| Leadshine stepper motor (open loop) | 57CM23 | L76 |
| 57CM26 | L85 | |
| 57CM31 | L88 |
■ A dimension detailed table (servo motor)
| Servo motor | Brand | A |
| 400W servo motor | Leadshine servo motor | L90.1 |
■ A dimension detail table (planetary reducer)
| Gear ratio (x) | Supported motor specification | A |
| 3 5 10 | Equipped with 400W servo motor | L77 |
| 3 5 10 | Equipped with a 57 stepper motor | L77 |
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.Specification table
Please follow the selection procedure
to
, select the type and parameters, and then proceed with ordering.
■ Specification table
■ Speed control/inverter type
When selecting the INV inverter motor, the inverter is delivered together as an accessory.
■ Stepper type
When using a 57 stepper, the driver supports an input voltage of 24 V DC to 48 V DC. (Power supply not included)
■ Servo type
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.
When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.
When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
For belts other than those above, please refer to the specification overview by clicking
here.
■ Gear head reduction ratio
Table 2: Correspondence table of load and linear speed (stepper motor)
to
, select the type and parameters, and then proceed with ordering. | Type | - |  B | - |  L | - | Motor selection | - |  Belt specification | - | Motor manufacturer selection | ||||
 Output power | - |  Specification | - |  Gear head reduction ratio | |||||||||||
| When there is no pulley When there is no motor or gear head | E-CVGTN E-CVGTN E-CVGTN | - - - | 120 120 120 | - - - | 1000 1000 1000 | - - - | 6 25 25 | - - - | SCM SCM NM | - - - | 25 30 NH | - - - | H J H | - - - | G G R |
■ Specification table
| Type | Type | Machine characteristics |
| E-CVGTN | Light load retaining edge guiding type | Tooth surface lining cloth for noise reduction, supports precise positioning conveyance |
■ Speed control/inverter type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Motor selection | Belt specification | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVGTN | 80 to 300 | 365 to 2000 | 6 25 (Power W) Caution: 6 is not suitable for variable frequency | SCM (Single-phase 220 V speed regulation type) | 5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 Caution: When the output power is 6, 5–10 are not applicable. | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | G(GPG - Taiban motor) J(JSCC - Jingyan motor) |
| INV (3-phase 220 V inverter type) | |||||||
| NM(without motor) | NH(without gear head) | R(without motor and gear head) | |||||
When selecting the INV inverter motor, the inverter is delivered together as an accessory.■ Stepper type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Motor selection | Belt specification | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVGTN57 | 80 to 300 | 365 to 2000 | 2.3 2.6 3.1 (57 stepper type torque N⋅m) | MC (pulse universal type) IO (IO control type) EC (EtherCAT bus) RS (RS485 communication) | 3 5 10 NH(no gear head) Caution: 3 to 10 are single pole | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | LS (Leadshine motor) |
| NM (without motor and driver) | R (without motor, driver, and gear head) | ||||||
When using a 57 stepper, the driver supports an input voltage of 24 V DC to 48 V DC. (Power supply not included)■ Servo type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Motor selection | Belt specification | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVGTN4 | 80 to 300 | 365 to 2000 | 400 (servo type power W) | MC(pulse universal type) EC(EtherCAT bus) | 3 5 10 NH(no gear head) Caution: 3 to 10 are single pole | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | LS (Leadshine motor) |
| NM (without motor and driver) | R (without motor, driver, and gear head) | ||||||
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.For belts other than those above, please refer to the specification overview by clicking
here.Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1
Timing belt width: 2×10 mm, thickness 2.2 mm Roller center distance: L=2000 mm
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1Timing belt width: 2×10 mm, thickness 2.2 mm Roller center distance: L=2000 mm
■ Gear head reduction ratio
| Gear head reduction ratio | Timing belt speed (m/min) | |
| SCM speed regulation type | INV inverter type | |
| 5 | 25.4 to 42.4 | 52.8 |
| 7.5 | 17.0 to 28.3 | 35.2 |
| 10 | 12.7 to 21.2 | 26.4 |
| 12.5 | 10.2 to 17.0 | 21.1 |
| 15 | 8.5 to 14.1 | 17.6 |
| 18 | 7.1 to 11.8 | 14.7 |
| 25 | 5.1 to 8.5 | 10.6 |
| 30 | 4.2 to 7.1 | 8.8 |
| 36 | 3.5 to 5.9 | 7.3 |
| 50 | 2.5 to 4.2 | 5.3 |
| 60 | 2.1 to 3.5 | 4.4 |
| 75 | 1.7 to 2.8 | 3.5 |
| 90 | 1.4 to 2.4 | 2.9 |
| 100 | 1.3 to 2.1 | 2.6 |
| 120 | 1.1 to 1.8 | 2.2 |
| 150 | 0.8 to 1.4 | 1.8 |
| 180 | 0.7 to 1.2 | 1.5 |
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 24 V DC (current 5 A) | ||
| 57CM23 | 57CM26 | 57CM31 | |||
| Load (kg) | |||||
| 100 | NH | 16 | 1.5 | 1.5 | 2.5 |
| 200 | 32 | 1.0 | 1.0 | 2 | |
| 200 | 3 | 10.7 | 6 | 6.5 | 10 |
| 5 | 6.4 | 10 | 10 | 10 | |
| 10 | 3.2 | 10 | 10 | 10 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 2×10 mm, thickness 2.2 mm Roller center distance: L=1000 mm
Table 3: Corresponding table of load and linear speed (servo motor)
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 220 V AC |
| 400W | |||
| Load (kg) | |||
| 3000 | NH | 60 | 2 |
| 3 | 60 | 10 | |
| 5 | 60 | 10 | |
| 10 | 48 | 10 |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 2×10 mm, thickness 2.2 mm Roller center distance: L=1000 mm
The transmission capacity will vary depending on the operating condition.The chart shows the transmission capacity under horizontal condition.When selecting a speed regulation motor, the transmission capacity does not increase as the speed decreases.When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.Alteration
 | Type | - | B | - | L | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Alteration | ||||
| Output power | - | Specification | - | Gear head reduction ratio | |||||||||||||
| E-CVGTN | - | 120 | - | 1000 | - | 6 | - | SCM | - | 25 | - | H | - | G | - | MP200 | |
| Alterations | Code | Spec | ||||||

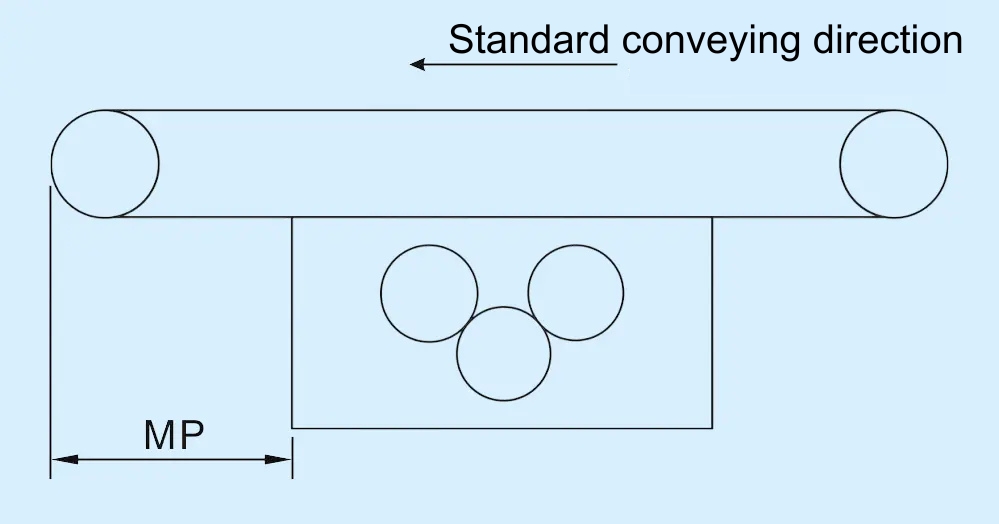

Driving part position specification | MP | The mounting position of the driving part can be changed. Ordering code MP500 170 ≤ MP ≤ L-330 *The minimum value of L is 500 Only the center drive type can be specified. | ||||||
Mounting bracket for speed controller | SCB | Comes with a mounting bracket for the speed controller. Ordering code SCB | ||||||

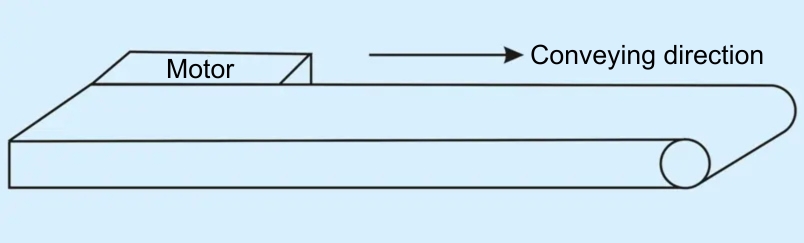

Conveyor belt reverse conveyance | FX | Includes reverse conveyance. Ordering code FX | ||||||

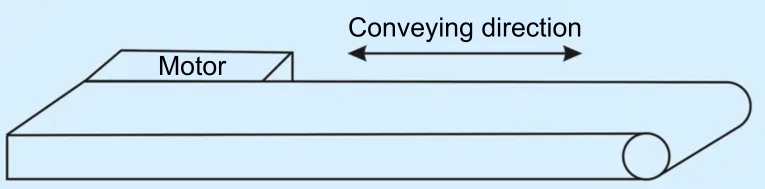

Conveyor belt bidirectional conveyance | SX | Bidirectional conveyance. Ordering code SX | ||||||

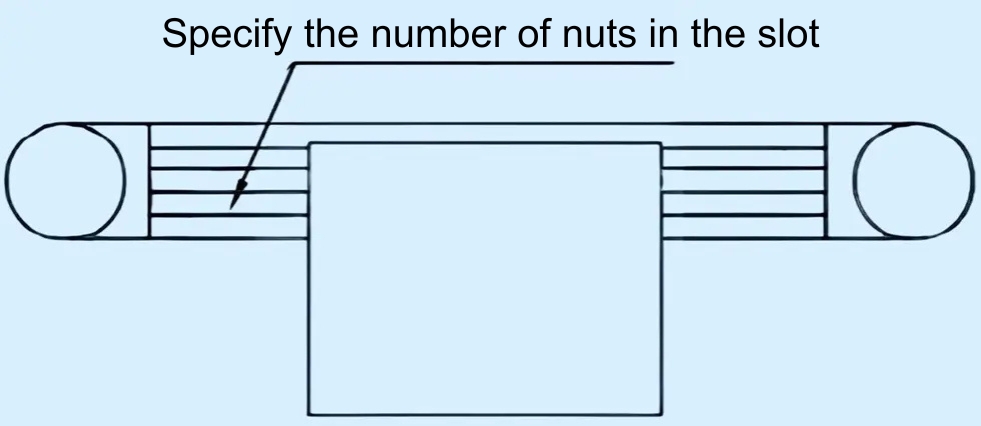

Increase the number of nuts in the profile groove. Select only when the standard quantity is insufficient (for standard quantity, see dimensional drawing information). | ANQ | Increase the quantity of nuts in the profile groove. Ordering code ANQ5
|
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-CVGTN4-[80-300/5]-[365-2000/5]-400-[EC,MC]-[3,5,10]-[D,H,J,S]-[LS,R] |
| E-CVGTN4-[80-300/5]-[365-2000/5]-400-[EC,MC]-NH-[D,H,J,S]-[LS,R] |
| E-CVGTN4-[80-300/5]-[365-2000/5]-400-NM-NH-[D,H,J,S]-R |
| E-CVGTN57-[80-300/5]-[365-2000/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-[D,H,J,S]-[LS,R] |
| E-CVGTN57-[80-300/5]-[365-2000/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-[D,H,J,S]-[LS,R] |
| E-CVGTN57-[80-300/5]-[365-2000/5]-[2.3,2.6,3.1]-NM-NH-[D,H,J,S]-R |
| E-CVGTN-[80-300/10]-[365-2000/5]-6-[NM,SCM]-NH-[D,H,J,S]-[G,J,R] |
| E-CVGTN-[80-300/10]-[365-2000/5]-6-SCM-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[D,H,J,S]-[G,J,R] |
| E-CVGTN-[80-300/10]-[365-2000/5]-25-[INV,NM,SCM]-NH-[D,H,J,S]-[G,J,R] |
| E-CVGTN-[80-300/10]-[365-2000/5]-25-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[D,H,J,S]-[G,J,R] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conveyance Length | Belt Width/Belt Pitch B (mm) | Output Power (W) | Specifications | Gear Head Reduction Ratio | Belt Specifications | Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | - | - | 5 ～ 10 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | - | - | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | - | NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | - | - | 5 ～ 10 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | - | - | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | - | NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | 6 | SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | 6 | SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | 25 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 365 ～ 2000 | 80 ～ 300 | 25 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) |
Loading...
Application Industry
| Equipment Production | Semiconductor | Lithium Battery | ||
 |  |  | ||
| Food | Electronic & Electrical | Robot | ||
 |  |  |
Precaution
(1) When installing onto equipment, ensure the flatness of the aluminum profile is maintained.
(2) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(3) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(4) In application, due to issues with the structural strength of the model and the amount of deformation of the body, do not exceed the allowable load or length and width when selecting a model.
(5) Even when the motor is operating in a normal state, its surface temperature may sometimes exceed 70℃. Please exercise caution to avoid burns.
(6) If operated in the opposite direction of the standard running direction, phenomena such as belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid such use. (The standard transport direction is shown in the figure below)
(2) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(3) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(4) In application, due to issues with the structural strength of the model and the amount of deformation of the body, do not exceed the allowable load or length and width when selecting a model.
(5) Even when the motor is operating in a normal state, its surface temperature may sometimes exceed 70℃. Please exercise caution to avoid burns.
(6) If operated in the opposite direction of the standard running direction, phenomena such as belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid such use. (The standard transport direction is shown in the figure below)
Related Documents Click here
here Related product
| Economy conveyor timing belt double row head drive pulley diameter 30 mm | Economy conveyor timing belt single row middle drive Pulley diameter 19 mm, 20 mm | Economy conveyor timing belt double row middle drive pulley diameter 50 mm | ||
 |  |  | ||
| Representative model: E-CVGTA | Representative model: E-CVSTR | Representative model: E-CVGTP |
Basic Information
| Drive Module Position | Multi-Track Center Drive | Belt Type | Timing belt | Meandering Prevention | Pulley crowned for meandering prevention |
|---|---|---|---|---|---|
| Motor Voltage | 220 V | Max. Mass of Conveyed Material(kg) | 10 | Tail Roller Dia. D (Tail Transfer Part R)(mm) | 30 |
| Drive Roller Dia.(mm) | 50 | Type | Light load retaining edge guiding type | Maximum conveying speed of this series(m/min) | 60 |
Specification/Dimensions
-
Conveyance Length
-
Belt Width/Belt Pitch B(mm)
-
Output Power (W)
-
Specifications
- INV (Three-phase 220 V Inverter Type)
- SCM (Single-phase 220 V Speed Control Type)
- NM (No Motor)
-
Gear Head Reduction Ratio
-
Belt Specifications
- Anti-static · Black Double-sided Fabric
- For Sliding · Green Double-sided Tape
- General Use · White Tooth Surface Cloth Tape
- No belt
-
Motor
- G (GPG Motor)
- J (JSCC Motor)
- R (No Motor · Gear Head)
-
type
- E-CVGTN
- E-CVGTN4
- E-CVGTN57
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 17 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: Can the conveyor's operating direction be set to reverse?
- Answer: The current conveyor does not support reverse operation. If reverse operation is required, please contact customer service for customization.
- Question: Conveyor belt deviation is a product characteristic. How can the frequency of deviation be reduced?
- Answer: The main methods to prevent conveyor belt deviation are arc-shaped rollers and belts with guide strips. Curved rollers are suitable for lengths up to 2000 mm; belts with guide strips are suitable for long distances over 2000 mm.
- Question: If the existing standard models cannot meet your requirements and you need to modify the model but are concerned about debugging issues, do you have any good suggestions?
- Answer: For this situation, please contact customer service for customization to meet your individual needs.
- Question: If I need a stepper motor or a servo motor, can you provide them?
- Answer: You can select a conveyor model without a motor or speed controller and purchase a motor separately for assembly.
Additional Products in this Category
- Flat Belt Conveyor High Power Type - Head Drive, 3-Groove Frame
- Timing Belt Conveyors - Dual Track, Head Drive, 2-Groove Frame
- Flat Belt Conveyor, Center Drive, Full Profile
- Belt Conveyor Mini III Head Drive Standard Type Belt Conveyor DHH
- Jabcon meandering-less type belt conveyor center drive
- Belgotch TYPE34 Belt Cleat Type (Head Drive)
- Belcon Mini for Incorporation Into Equipments and Machines PETA-CON 40 Standard Type DHQ
- Fine Conveyor II, for Straight Transport, Center Drive, Meandering-Less Type, FBG
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
