Timing Belt Conveyor, Dual Track, Head Driver, Pulley Dia. 70mm
Click this image to zoom it.
Move the mouse over the image to zoom
- Economy
MiSUMi Economy
Economy series Belt Conveyor
(i)Caution
- This single-phase motor is specified for 220V ±10%,50Hz/60Hz. Please ensure it is used within the permissible voltage range.
Part Number
Configured Part Number is shown.
Product overview
Economical conveyor with a reasonable structure design, enabling localized production. Multiple types of models are available to meet customers' design requirements for different usage scenarios, providing better selection options.
E-CVGTC: Medium and heavy load type, double-row narrow-width toothed belt, suitable for conveyance of fixture and pallet products, supports precise positioning conveyance.
E-CVGTC: Medium and heavy load type, double-row narrow-width toothed belt, suitable for conveyance of fixture and pallet products, supports precise positioning conveyance.
Product feature
Feature 1: The conveyor body uses an aluminum profile, achieving an overall lightweight design.
Feature 2: Double-row narrow-width tooth profile belt, suitable for conveyance of fixture pallet products, supports precise positioning conveyance.
Feature 3: The center distance of the timing belt can be specified in 10 mm units, and the pitch of the pulley can be specified in 5 mm units.
Feature 2: Double-row narrow-width tooth profile belt, suitable for conveyance of fixture pallet products, supports precise positioning conveyance.
Feature 3: The center distance of the timing belt can be specified in 10 mm units, and the pitch of the pulley can be specified in 5 mm units.
Specification overview
■ Material table
■ Flat belt width - pulley center distance correspondence table
| Part name |  Material |  Surface treatment |
| Profile | Aluminum | Anodized |
| Motor cover | Aluminum | Painted baked paint |
| Pulley holder | Aluminum | Painted baked paint |
■ Flat belt width - pulley center distance correspondence table
| Model | Belt width B | Pulley center distance L | ||
| L500 to 1000 | L1005 to 2000 | L2005 to 3000 | ||
| E-CVGTC | 150 to 300 | ● | ● | ● |
| 310 to 400 | ● | ● | ● | |
| 410 to 500 | ● | ● | ● | |
| 510 to 600 | ● | ● | ● | |
Dimensional drawing
E-CVGTC
When L > 2000, one set (2 pieces) of belt support rollers is included.
Support assembly notes:
When L < 1500, there are two sets of support assemblies.
When L is 1500 to 2500, there are three sets of support assemblies.
When L > 2500, there are four sets of support assemblies.
When selecting a speed control motor, the speed controller is provided as an accessory, is not installed on the main unit, and does not include a mounting bracket.
If a bracket for the speed controller is required, please use additional machining (SCB).
*Differences in power only affect the motor size. For the A dimension, please refer to the table below; the external dimensions of the other components remain the same.
Standard nut allocation table for profile groove: L value (center distance unit: mm)Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.
Motor specification: 90W*
When L > 2000, one set (2 pieces) of belt support rollers is included.Support assembly notes:
When L < 1500, there are two sets of support assemblies.
When L is 1500 to 2500, there are three sets of support assemblies.
When L > 2500, there are four sets of support assemblies.
When selecting a speed control motor, the speed controller is provided as an accessory, is not installed on the main unit, and does not include a mounting bracket.If a bracket for the speed controller is required, please use additional machining (SCB).
*Differences in power only affect the motor size. For the A dimension, please refer to the table below; the external dimensions of the other components remain the same.
Enlarged view of profile cross-section (left and right symmetrical)
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model. | L500 to 999 | L1000 to 1499 | L1500 or more | Position | Specification | Configuration type |
| 16PCS | 24PCS | 32PCS | - | M6 (T shape) | Accessory |
■ A dimension detailed table (speed regulation/inverter motor)
| Motor power | Motor | Reduction ratio | A | |
| Specification | Manufacturer | |||
| 60W | Inverter type | GPG | 3 to 18 | L168 |
| 25 to 180 | L186 | |||
| Speed regulation type | 3 to 18 | L179.5 | ||
| 25 to 180 | L197.5 | |||
| Inverter type | JSCC | 3 to 18 | L171 | |
| 25 to 180 | L191 | |||
| Speed regulation type | 3 to 18 | L182 | ||
| 25 to 180 | L202 | |||
| 90W | Inverter type | GPG | 3 to 18 | L183 |
| 25 to 180 | L201 | |||
| Speed regulation type | 3 to 18 | L194.5 | ||
| 25 to 180 | L212.5 | |||
| Inverter type | JSCC | 3 to 18 | L186 | |
| 25 to 180 | L206 | |||
| Speed regulation type | 3 to 18 | L197 | ||
| 25 to 180 | L217 | |||
| 120W | Inverter type | GPG | 3 to 18 | L183 |
| 25 to 180 | L201 | |||
| Speed regulation type | 3 to 18 | L194.5 | ||
| 25 to 180 | L212.5 | |||
| Inverter type | JSCC | 3 to 18 | L196 | |
| 25 to 180 | L216 | |||
| Speed regulation type | 3 to 18 | L207 | ||
| 25 to 180 | L227 | |||
■ A dimension detail table (stepper motor)
■ A dimension detailed table (servo motor)
■ A dimension detail table (planetary reducer)
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
| Brand | Motor model | A |
| Leadshine stepper motor (open loop) | 86CM45 | L80 |
| 86CM80 | L98 | |
| 86CM120 | L129 |
■ A dimension detailed table (servo motor)
| Servo motor | Brand | A |
| 750W servo motor | Leadshine servo motor | L95.7 |
■ A dimension detail table (planetary reducer)
| Gear ratio (x) | Supported motor specification | A |
| 3 5 10 | Equipped with a 750W servo motor | L110 |
| 15 20 | L130 | |
| 3 5 10 | Equipped with an 86 stepper motor | L110 |
| 15 20 | L130 |
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.Specification table
Please follow the selection procedure
to
, select the type and parameters, and then proceed with ordering.
■ Specification table
■ Speed control/inverter type
When selecting the INV inverter motor, the inverter is delivered together as an accessory.
■ Stepper type
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)
When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC—two types of power supply voltage. (Power supply not included)
■ Servo type
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.
When selecting without a motor and without a gear head, the motor installation hole pitch will vary depending on the motor output power.
When selecting None for both motor and gear head, the main unit will be delivered as a part. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
For belts other than those above, please refer to the belt specification overview. Click
here
■ Gear head reduction ratio - speed correspondence table
INV inverter type: Reference value of timing belt speed when motor speed is 1300 rpm (50 Hz).
May decrease depending on the load stateTable 2: Correspondence table of load and linear speed (stepper motor)
to
, select the type and parameters, and then proceed with ordering. | Type | - |  B | - |  L | - | Motor selection | - |  Belt specification | - | Motor manufacturer selection | ||||
 Output power | - |  Specification | - |  Gear head reduction ratio | |||||||||||
| When there is no pulley When there is no motor or gear head | E-CVGTC E-CVGTC E-CVGTC | - - - | 200 200 200 | - - - | 2000 2000 2000 | - - - | 60 60 60 | - - - | SCM INV NM | - - - | 25 30 NH | - - - | H J H | - - - | G G R |
■ Specification table
| Type | Type | Machine characteristics |
| E-CVGTC | Abrasion resistant groove strip guiding type | Tooth surface lining cloth for noise reduction, supports precise positioning conveyance |
■ Speed control/inverter type
| Type | B Specified unit 10 mm | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVGTC | 150 to 600 | 500 to 3000 | 60 90 120 (Power W) | SCM (Single-phase 220 V speed regulation type) | 5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | G(GPG - Taiban motor) J(JSCC - Jingyan motor) |
| INV (3-phase 220 V inverter type) | |||||||
| NM(without motor) | NH(without gear head) | R(without motor and gear head) | |||||
When selecting the INV inverter motor, the inverter is delivered together as an accessory.■ Stepper type
| Type | B Specified unit 10 mm | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVGTC86 | 150 to 600 | 500 to 3000 | 4.5 8.0 12.0 (86 stepper type / torque N⋅m) | MC (pulse universal type) IO (IO control type) EC (EtherCAT bus) RS (RS485 communication) | 3 5 10 15 20 NH (without gear head) Caution: 3 to 10 are single pole | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | LS (Leadshine motor) |
| NM (without motor and driver) | R (without motor, driver, and gear head) | ||||||
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC—two types of power supply voltage. (Power supply not included)■ Servo type
| Type | B Specified unit 10 mm | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVGTC75 | 150 to 600 | 500 to 3000 | 750 (Servo type power W) | MC(Pulse universal type) EC(EtherCAT bus) | 3 5 10 15 20 NH (without gear head) Caution: 3 to 10 are single pole | H(General use · White tooth surface lining cloth) S(Sliding · Green both side cloth lined type) D(Anti-static · Black both side cloth lined type) J(Without belt) | LS (Leadshine motor) |
| NM (without motor and driver) | R (without motor, driver, and gear head) | ||||||
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.When selecting without a motor and without a gear head, the motor installation hole pitch will vary depending on the motor output power.When selecting None for both motor and gear head, the main unit will be delivered as a part. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.For belts other than those above, please refer to the belt specification overview. Click
hereTable 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1
Timing belt width: 2×50 mm, thickness 4.5 mm Roller center distance: L=3000 mm
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1Timing belt width: 2×50 mm, thickness 4.5 mm Roller center distance: L=3000 mm
■ Gear head reduction ratio - speed correspondence table
INV inverter type: Reference value of timing belt speed when motor speed is 1300 rpm (50 Hz).| Gear head reduction ratio | Timing belt speed (m/min) | |
| SCM speed regulation type | INV inverter type | |
| 5 | 38.7 to 64.4 | 80.2 |
| 7.5 | 25.8 to 43.0 | 53.5 |
| 10 | 19.3 to 32.2 | 40.1 |
| 12.5 | 15.5 to 25.8 | 32.1 |
| 15 | 12.9 to 21.5 | 26.7 |
| 18 | 10.7 to 17.9 | 22.3 |
| 25 | 7.7 to 12.9 | 16.0 |
| 30 | 6.4 to 10.7 | 13.4 |
| 36 | 5.4 to 8.9 | 11.1 |
| 50 | 3.9 to 6.4 | 8.0 |
| 60 | 3.2 to 5.4 | 6.7 |
| 75 | 2.6 to 4.3 | 5.3 |
| 90 | 2.1 to 3.6 | 4.5 |
| 100 | 1.9 to 3.2 | 4.0 |
| 120 | 1.6 to 2.7 | 3.3 |
| 150 | 1.3 to 2.1 | 2.7 |
| 180 | 1.1 to 1.8 | 2.2 |
May decrease depending on the load state| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 48 V DC (current 6 A) | ||
| 86CM45 | 86CM80 | 86CM120 | |||
| Load (kg) | |||||
| 100 | NH | 24 | 1 | 3 | 3.5 |
| 200 | 48 | 0.5 | 2 | 2.5 | |
| 200 | 3 | 16 | 7 | 14 | 28 |
| 5 | 9.6 | 22 | 40 | 95 | |
| 10 | 4.8 | 70 | 85 | 100 | |
| 15 | 3.2 | 100 | 100 | 100 | |
| 20 | 2.4 | 100 | 100 | 100 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 2×50 mm, thickness 4.5 mm Roller center distance: L=1000 mm
Table 3: Correspondence table of load and linear speed (servo motor)
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 220 V AC |
| 750W | |||
| Load (kg) | |||
| 3000 | NH | 100 | 15 |
| 3 | 100 | 23 | |
| 5 | 100 | 38 | |
| 10 | 72 | 75 | |
| 15 | 48 | 100 | |
| 20 | 36 | 100 |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Timing belt width: 2×50 mm, thickness 4.5 mm Roller center distance: L=1000 mm
The chart shows the transport capacity under horizontal conditions.The transport capacity will vary depending on the operating condition.When selecting a speed regulation motor, the transport capacity does not increase as the speed decreases.When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.Alteration
 | Type | - | B | - | L | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Alteration | ||||
| Output power | - | Specification | - | Gear head reduction ratio | |||||||||||||
| E-CVGTC | - | 200 | - | 2000 | - | 60 | - | SCM | - | 25 | - | H | - | G | - | MK | |
| Alterations | Code | Spec | ||||||

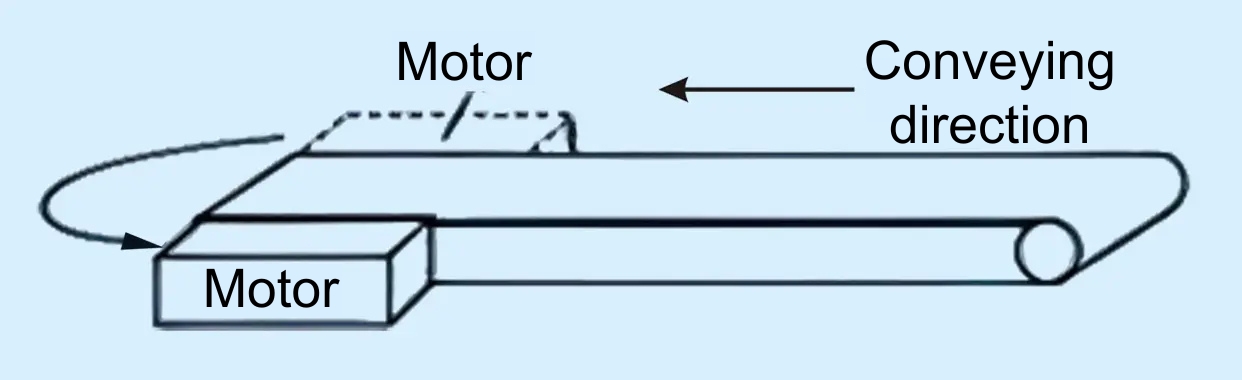

Reverse motor installation position | MK | The motor installation position can be changed. Ordering code MK Can only be specified for head drive type. | ||||||
Mounting bracket for speed controller | SCB | Comes with a mounting bracket for the speed controller. Ordering code SCB | ||||||

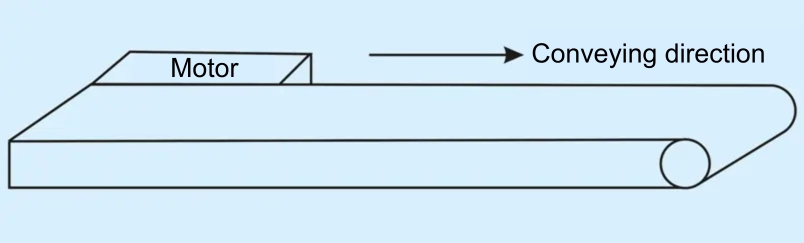

Conveyor belt reverse conveyance | FX | Reverse conveyance. Ordering code FX | ||||||

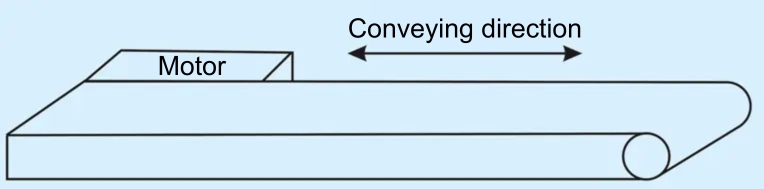

Conveyor belt bidirectional conveyance | SX | Bidirectional conveyance. Ordering code SX | ||||||
Increase the quantity of nuts in the profile groove Select only when the standard quantity is insufficient (see dimensional drawing information for standard quantity and specification) | ANQ | Increase the quantity of nuts in the profile groove. Ordering code ANQ5
|
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-CVGTC75-[150-600/10]-[500-3000/5]-750-[EC,MC]-[3,5,10,15,20]-[D,H,J,S]-[LS,R] |
| E-CVGTC75-[150-600/10]-[500-3000/5]-750-[EC,MC]-NH-[D,H,J,S]-[LS,R] |
| E-CVGTC75-[150-600/10]-[500-3000/5]-750-NM-NH-[D,H,J,S]-R |
| E-CVGTC86-[150-600/10]-[500-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20]-[D,H,J,S]-[LS,R] |
| E-CVGTC86-[150-600/10]-[500-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-[D,H,J,S]-[LS,R] |
| E-CVGTC86-[150-600/10]-[500-3000/5]-[4.5,8,12]-NM-NH-[D,H,J,S]-R |
| E-CVGTC-[150-600/10]-[500-3000/5]-[60,90,120]-[INV,NM,SCM]-NH-[D,H,J,S]-[G,J,R] |
| E-CVGTC-[150-600/10]-[500-3000/5]-[60,90,120]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-[D,H,J,S]-[G,J,R] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conveyance Length | Belt Width/Belt Pitch B (mm) | Output Power (W) | Specifications | Gear Head Reduction Ratio | Belt Specifications | Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | - | - | 5 ～ 15 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | - | - | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | - | NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | - | - | 5 ～ 15 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | - | - | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | - | NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | 60 ～ 120 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 500 ～ 3000 | 150 ～ 600 | 60 ～ 120 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | Anti-static · Black Double-sided Fabric / For Sliding · Green Double-sided Tape / General Use · White Tooth Surface Cloth Tape / No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) |
Loading...
Application Industry
| Equipment Production | Semiconductor | Lithium Battery | ||
 |  |  | ||
| Food | Electronic & Electrical | Robot | ||
 |  |  |
Precaution
(1) When installing onto equipment, ensure the flatness of the aluminum profile is maintained.
(2) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(3) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(4) In application, due to issues with the structural strength of the model and the amount of deformation of the body, do not exceed the allowable load or length and width when selecting a model.
(5) Even when the motor is operating in a normal state, its surface temperature may sometimes exceed 70℃. Please exercise caution to avoid burns.
(6) If operated in the opposite direction of the standard running direction, phenomena such as belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid such use. (The standard transport direction is shown in the figure below)
(2) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(3) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(4) In application, due to issues with the structural strength of the model and the amount of deformation of the body, do not exceed the allowable load or length and width when selecting a model.
(5) Even when the motor is operating in a normal state, its surface temperature may sometimes exceed 70℃. Please exercise caution to avoid burns.
(6) If operated in the opposite direction of the standard running direction, phenomena such as belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid such use. (The standard transport direction is shown in the figure below)
Related Documents Click
here
here Related product
| Economy conveyor double-row timing belt head drive Pulley diameter 70 mm built-in motor | Economy conveyor timing belt double row head drive Pulley diameter 50 mm | Economy conveyor flat belt built-in motor drive Pulley diameter 70 mm | ||
 |  |  | ||
| Representative model: E-CVGTE | Representative model: E-CVGTB | Representative model: E-CVSMA |
Basic Information
| Drive Module Position | Multi-Track Head Drive | Belt Type | Timing belt | Meandering Prevention | Pulley crowned for meandering prevention |
|---|---|---|---|---|---|
| Motor Voltage | 220 V | Max. Mass of Conveyed Material(kg) | 100 | Tail Roller Dia. D (Tail Transfer Part R)(mm) | 70 |
| Drive Roller Dia.(mm) | 70 | Type | Abrasion resistant groove strip guiding type | Maximum conveying speed of this series(m/min) | 100 |
Specification/Dimensions
-
Conveyance Length
-
Belt Width/Belt Pitch B(mm)
-
Output Power (W)
-
Specifications
- INV (Three-phase 220 V Inverter Type)
- SCM (Single-phase 220 V Speed Control Type)
- NM (No Motor)
-
Gear Head Reduction Ratio
-
Belt Specifications
- Anti-static · Black Double-sided Fabric
- For Sliding · Green Double-sided Tape
- General Use · White Tooth Surface Cloth Tape
- No belt
-
Motor
- G (GPG Motor)
- J (JSCC Motor)
- R (No Motor · Gear Head)
-
type
- E-CVGTC
- E-CVGTC75
- E-CVGTC86
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 17 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: Can the conveyor's operating direction be set to reverse?
- Answer: The current conveyor does not support reverse operation. If reverse operation is required, please contact customer service for customization.
- Question: Conveyor belt deviation is a product characteristic. How can the frequency of deviation be reduced?
- Answer: The main methods to prevent conveyor belt deviation are arc-shaped rollers and belts with guide strips. Curved rollers are suitable for lengths up to 2000 mm; belts with guide strips are suitable for long distances over 2000 mm.
- Question: If the existing standard models cannot meet your requirements and you need to modify the model but are concerned about debugging issues, do you have any good suggestions?
- Answer: For this situation, please contact customer service for customization to meet your individual needs.
- Question: If I need a stepper motor or a servo motor, can you provide them?
- Answer: You can select a conveyor model without a motor or speed controller and purchase a motor separately for assembly.
Additional Products in this Category
- Flat Belt Conveyor SV Series - With Meandering Prevention Crosspiece, Head Drive, 2-Groove Frame (Pulley Dia. 30mm)
- Timing Belt Conveyors Narrow Type - Single Track, Center Drive, 2- / 3-Groove Frame
- Flat Belt Conveyors - With Meandering Prevention Crosspiece, Center Drive, 2-Groove Frame
- Timing Belt Conveyors - Dual Track, Head Drive, 2-Groove Frame
- Flat Belt Conveyors - Built-in Motor Type - 2-Groove Frame
- Flat Belt Conveyor with Backlight, Head Drive, Pulley Dia. 50mm
- Flat Belt Conveyor With Ribs, Head Drive, High Load Type Pulley, Dia. 50mm
- Belt Conveyor Mini III Knife Edge Type Belt Conveyor DMS
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
