Economy series Belt Conveyor
(i)Caution
- This single-phase motor is specified for 220V ±10%,50Hz/60Hz. Please ensure it is used within the permissible voltage range.
Part Number
Configured Part Number is shown.
Product overview
Economical conveyor with a reasonable structure design, enabling localized production. Multiple types of models are available to meet customers' design requirements for different usage scenarios, providing better selection options.
E-CVDSA: Equipped with a flat belt with transverse ribs to form a grille, suitable for small workpiece transportation or inclined conveying.
E-CVDSA: Equipped with a flat belt with transverse ribs to form a grille, suitable for small workpiece transportation or inclined conveying.
Product feature
Feature 1: The belt can be equipped with various customized distance baffles to distinguish different conveyed materials and stacking processes.
Feature 2: The belt width can be specified in 5 mm units, and the pulley distance can also be specified in 5 mm units.
Feature 3: Using crown type flat-belt pulleys and idlers effectively prevents flat belt deviation. (Except in cases of extreme deviation)
Feature 2: The belt width can be specified in 5 mm units, and the pulley distance can also be specified in 5 mm units.
Feature 3: Using crown type flat-belt pulleys and idlers effectively prevents flat belt deviation. (Except in cases of extreme deviation)
Specification overview
■ Material table
■ Flat belt width - pulley center distance correspondence table
Dimensional drawing| Part name |  Material |  Surface treatment |
| Profile | Aluminum | Electrophoresis |
| Motor cover | Aluminum | Painted baked paint |
| Pulley holder | Aluminum | Painted baked paint |
■ Flat belt width - pulley center distance correspondence table
| Model | Belt width B | Pulley center distance L | |||||
| L350 to 500 | L505 to 600 | L605 to 800 | L805 to 900 | L905 to 1000 | L1005 to 2000 | ||
| E-CVDSA | 50 to 110 | ● | ● | ● | ● | ● | ● |
| 115 to 160 | ● | ● | ● | ● | ● | ● | |
| 165 to 210 | - | ● | ● | ● | ● | ● | |
| 215 to 260 | - | - | ● | ● | ● | ● | |
| 265 to 300 | - | - | ● | ● | ● | ● | |
E-CVDSA
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are supplied as accessories with the conveyor and are not displayed in the CAD model.
Motor specification: 60W*
*Differences in power only affect the motor size. For the A dimension, please refer to the table below. The external dimensions of the other parts remain the same.
Enlarged view of profile cross-section (left and right symmetrical)
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are supplied as accessories with the conveyor and are not displayed in the CAD model.| L350 to 999 | L1000 to 1499 | L1500 or more | Position | Specification | Configuration type |
| 4PCS | 6PCS | 8PCS | X section (left and right) | M3 (hex) | Accessory |
| 4PCS | 6PCS | 8PCS | Y section (left and right) | M6 (square) | Accessory |
■ A dimension detail table (speed regulation/inverter motor)
| Motor power | Motor | Reduction ratio | A | |
| Specification | Manufacturer | |||
| 25W | Inverter type | GPG | 3 to 18 | L118 |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L141 | |||
| Inverter type | JSCC | 3 to 18 | L119 | |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L140 | |||
| 40W | Inverter type | GPG | 3 to 18 | L148 |
| 25 to 180 | L166 | |||
| Speed regulation type | 3 to 18 | L159 | ||
| 25 to 180 | L177 | |||
| Inverter type | JSCC | 3 to 18 | L152 | |
| 25 to 180 | L172 | |||
| Speed regulation type | 3 to 18 | L162 | ||
| 25 to 180 | L182 | |||
| 60W | Inverter type | GPG | 3 to 18 | L168 |
| 25 to 180 | L186 | |||
| Speed regulation type | 3 to 18 | L179.5 | ||
| 25 to 180 | L197.5 | |||
| Inverter type | JSCC | 3 to 18 | L171 | |
| 25 to 180 | L191 | |||
| Speed regulation type | 3 to 18 | L182 | ||
| 25 to 180 | L202 | |||
■ A dimension detail table (stepper motor)
■ A dimension detailed table (servo motor)
■ A dimension detail table (planetary reducer)
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
| Name | Motor model | A |
| Leadshine stepper motor (open loop) | 86CM45 | L80 |
| 86CM80 | L98 | |
| 86CM120 | L129 |
■ A dimension detailed table (servo motor)
| Servo motor | Brand | A |
| 400W servo motor | Leadshine servo motor | L90.1 |
| 750W servo motor | L95.7 |
■ A dimension detail table (planetary reducer)
| Gear ratio (x) | Supported motor specification | A |
| 3 5 10 | Equipped with a 400W servo motor | L77 |
| 3 5 10 | Equipped with a 750W servo motor | L110 |
| 3 5 10 | Equipped with an 86 stepper motor | L110 |
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.Specification table
Please follow the selection procedure
to
, select the type and parameters, and then proceed with ordering.
■ Specification table
■ Speed control/inverter type
When selecting the INV inverter motor, the inverter is delivered together as an accessory.
■ Stepper type
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)
When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltage. (Power supply not included)
■ Servo type
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.
The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.
When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.
When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
For belts other than those above, please refer to the specification overview by clicking
here.
Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Deceleration head reduction ratio-speed correspondence table
INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).
to
, select the type and parameters, and then proceed with ordering. | Type | - |  B | - |  L | - |  Number of baffles | - |  H | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | ||||
 Output power | - |  Specification | - |  Gear head reduction ratio | |||||||||||||||
| When there is no pulley When there is no motor or gear head | E-CVDSA E-CVDSA E-CVDSA | - - - | 200 200 200 | - - - | 1000 1000 1000 | - - - | 26 26 26 | - - - | 20 20 20 | - - - | 25 25 25 | - - - | SCM INV NM | - - - | 25 25 NH | - - - | H20 J H20 | - - - | G G R |
■ Specification table
| Type | Type | Machine characteristics |
| E-CVDSA | Add guide strip for deviation prevention | The baffle is welded onto the flat belt, with a welding position at the base. Sufficient pitch must be reserved. |
■ Speed control/inverter type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Quantity of baffles Specified unit 1 piece | Height H baffle height | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||||
| E-CVDSA (With guide strip type) | 50 to 300 | 350 to 2000 | 5 to 150 Note: Number of baffles ≤ (2 L+160)/50 | 10 20 30 40 50 Note: T=5 baffle thickness | 25 40 60 (Power W) | SCM (Single-phase 220 V speed regulation type) | 5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 | H20(General use · green PVC) F15(Food use · white PU) J(No belt) | G(GPG - Taiban motor) J(JSCC - Jingyan motor) |
| INV (3-phase 220 V inverter type) | |||||||||
| NM(without motor) | NH(without gear head) | R(without motor and gear head) | |||||||
When selecting the INV inverter motor, the inverter is delivered together as an accessory.■ Stepper type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Quantity of baffles Specified unit 1 piece | Height H baffle height | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||||
| E-CVDSA86 (with guide strip type) | 50 to 300 | 350 to 2000 | 5 to 150 Note: Number of baffles ≤ (2 L+160)/50 | 10 20 30 40 50 Note: T=5 baffle thickness | 4.5 8.0 12.0 (86 stepper type / torque N⋅m) | MC (pulse universal type) IO (IO control type) EC (EtherCAT bus) RS (RS485 communication) | 3 5 10 NH (without gear head) Caution: 3 to 10 are single pole | H20(General use · green PVC) F15(Food use · white PU) J(No belt) | LS (Leadshine motor) |
| NM (without motor and driver) | R (without motor, driver, and gear head) | ||||||||
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltage. (Power supply not included)■ Servo type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Quantity of baffles Specified unit 1 piece | Height H baffle height | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)/Power (W) | Specification/Drive method | Gear head reduction ratio | |||||||
| E-CVDSA4 E-CVDSA75 (with guide strip type) | 50 to 300 | 350 to 2000 | 5 to 150 Note: Number of baffles ≤ (2 L+160)/50 | 10 20 30 40 50 Note: T=5 baffle thickness | 400 750 (servo type power W) | MC(pulse universal type) EC(bus EtherCAT) | 3 5 10 NH (without gear head) Caution: 3 to 10 are single pole | H20(General use · green PVC) F15(Food use · white PU) J(No belt) | LS (Leadshine motor) |
| NM (without motor and driver) | R (without motor, driver, and gear head) | ||||||||
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.For belts other than those above, please refer to the specification overview by clicking
here.Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1.2:1
Belt width: B = 300 mm, thickness 2 mm, baffle height 30 mm, number of baffles 10
Roller center distance: L = 2000 mm
Test motor: JSCC (J) timing pulley transmission ratio 1.2:1Belt width: B = 300 mm, thickness 2 mm, baffle height 30 mm, number of baffles 10
Roller center distance: L = 2000 mm
■ Deceleration head reduction ratio-speed correspondence table
INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).| Gear head reduction ratio | Flat belt speed (m/min) | |
| SCM speed regulation type | INV inverter type | |
| 5 | 30.5 to 50.9 | 63.3 |
| 7.5 | 20.3 to 33.9 | 42.2 |
| 10 | 15.3 to 25.4 | 31.7 |
| 12.5 | 12.2 to 20.3 | 25.3 |
| 15 | 10.2 to 17.0 | 21.1 |
| 18 | 8.5 to 14.1 | 17.6 |
| 25 | 6.1 to 10.2 | 12.7 |
| 30 | 5.1 to 8.5 | 10.6 |
| 36 | 4.2 to 7.1 | 8.8 |
| 50 | 3.1 to 5.1 | 6.3 |
| 60 | 2.5 to 4.2 | 5.3 |
| 75 | 2.0 to 3.4 | 4.2 |
| 90 | 1.7 to 2.8 | 3.5 |
| 100 | 1.5 to 2.5 | 3.2 |
| 120 | 1.3 to 2.1 | 2.6 |
| 150 | 1.0 to 1.7 | 2.1 |
| 180 | 0.8 to 1.4 | 1.8 |
Table 2: Correspondence table of load and linear speed (stepper motor)
Test motor: Leadshine (LS) Timing pulley transmission ratio 1:1
Belt width: B = 200 mm, thickness 2 mm, baffle height 30 mm, number of baffles 10, roller center distance: L = 1000 mm
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 48 V DC (current 6 A) | ||
| 86CM45 | 86CM80 | 86CM120 | |||
| Load (kg) | |||||
| 100 | NH | 15.7 | 2.5 | 6.5 | 8 |
| 200 | 31.4 | 1 | 4.5 | 6 | |
| 200 | 3 | 10.5 | 16 | 20 | 20 |
| 5 | 6.3 | 20 | 20 | 20 | |
| 10 | 3.1 | 20 | 20 | 20 | |
Test motor: Leadshine (LS) Timing pulley transmission ratio 1:1Belt width: B = 200 mm, thickness 2 mm, baffle height 30 mm, number of baffles 10, roller center distance: L = 1000 mm
Table 3: Corresponding table of load and linear speed (servo motor)
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1
belt width: B = 200 mm, thickness 2 mm, baffle height 30 mm, number of baffles 10
roller center distance: L = 1000 mm
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 220 V AC | |
| 400W | 750W | |||
| Load (kg) | ||||
| 3000 | NH | 60 | / | 4 |
| 3 | 60 | 16 | 20 | |
| 5 | 60 | 20 | 20 | |
| 10 | 47.1 | 20 | 20 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1belt width: B = 200 mm, thickness 2 mm, baffle height 30 mm, number of baffles 10
roller center distance: L = 1000 mm
The chart shows the transport capacity under horizontal conditions.The transport capacity will vary depending on the operating condition.When selecting a speed regulation motor, the transport capacity does not increase as the speed decreases.When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.Alteration
 | Type | - | B | - | L | - | Number of baffles | - | H | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Alteration | ||||
| Output power | - | Specification | - | Gear head reduction ratio | |||||||||||||||||
| E-CVDSA | - | 200 | - | 1000 | - | 26 | - | 20 | - | 25 | - | SCM | - | 25 | - | H20 | - | G | - | MK | |
| Alterations | Code | Spec | ||||||

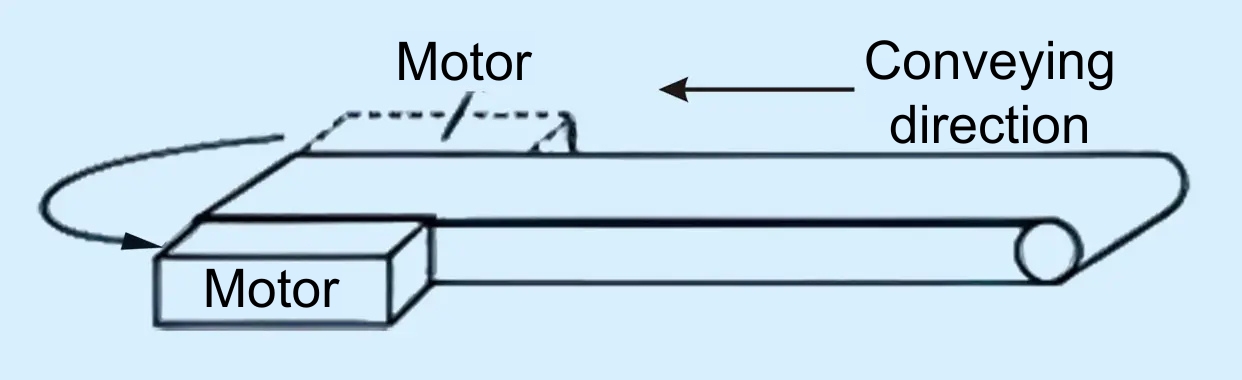

Reverse motor installation position | MK | The motor installation position can be changed. Ordering code MK Can only be specified for head drive type. | ||||||

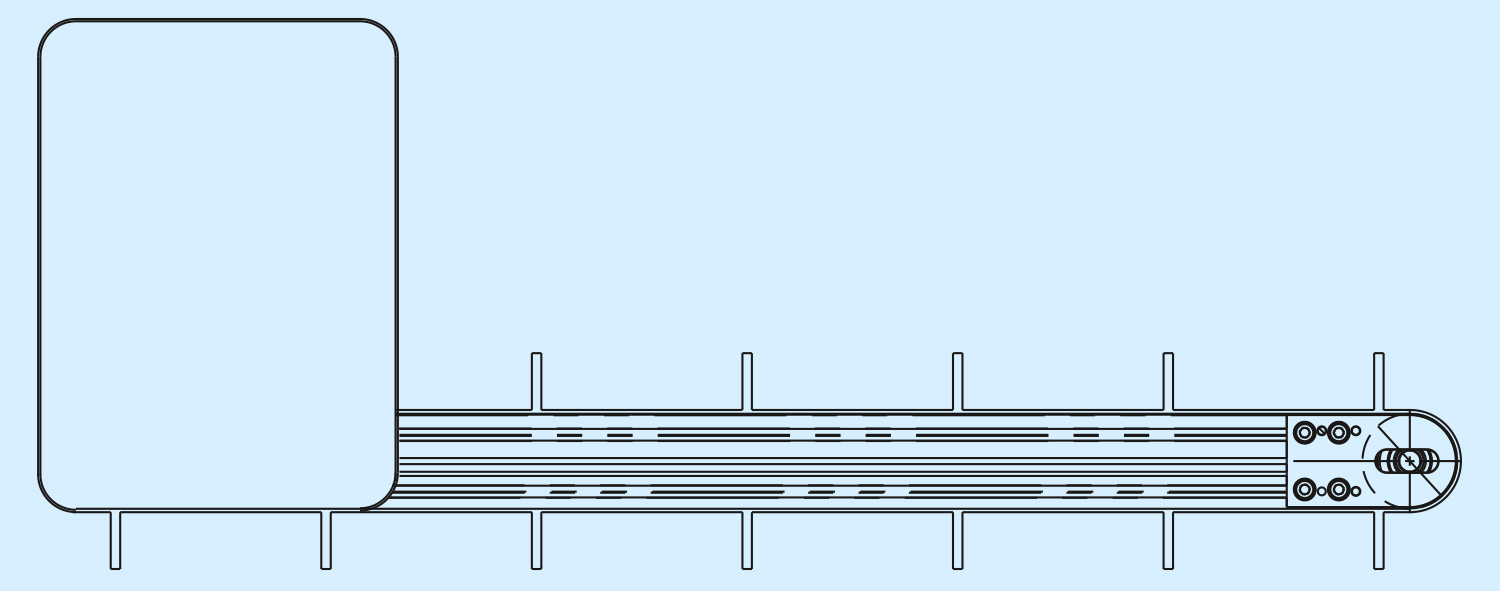

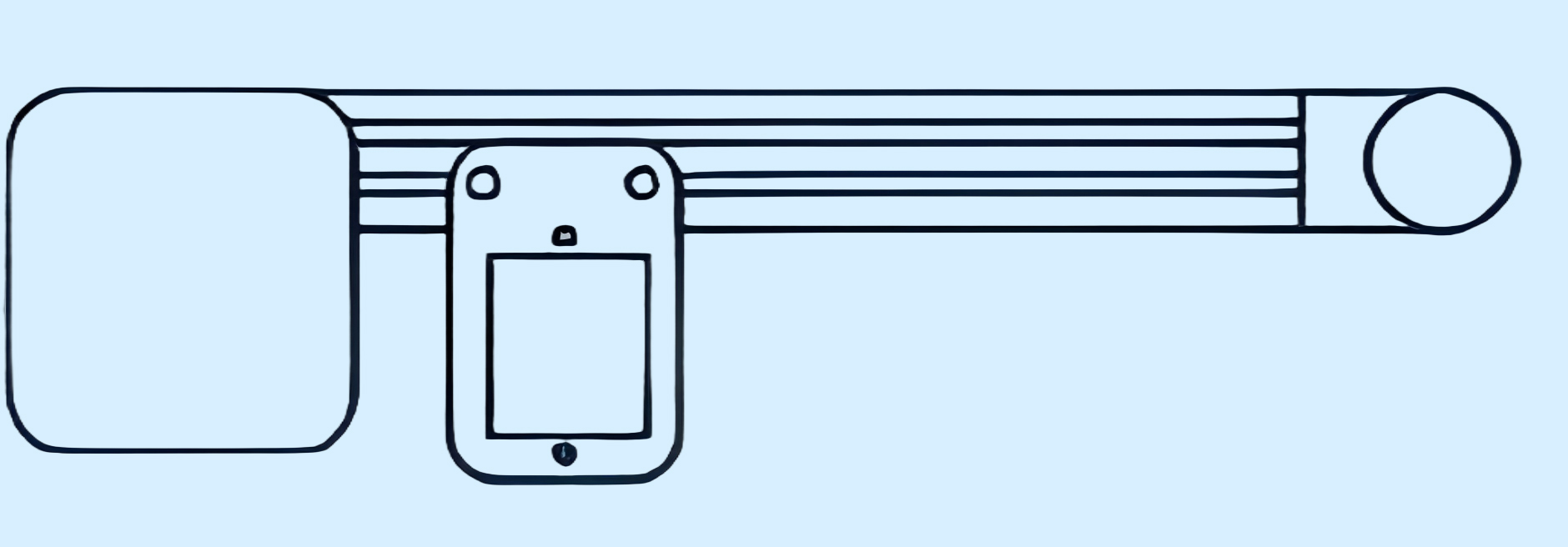

Mounting bracket for speed controller | SCB | Comes with a mounting bracket for the speed controller. Ordering code SCB | ||||||

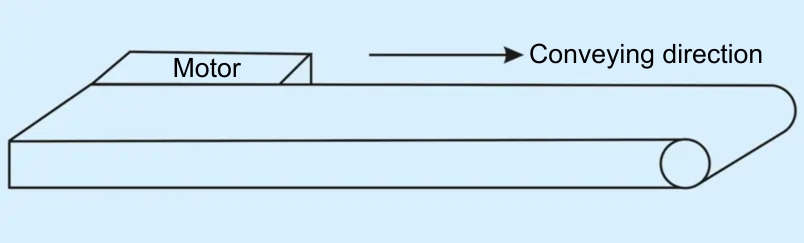

Conveyor belt reverse conveyance | FX | Reverse conveyance. Ordering code FX | ||||||
Increase the number of nuts in the profile groove. Select only when the standard quantity is insufficient (see dimensional drawing information for standard quantity and specification) | ANQ | Increase the quantity of nuts in the profile groove. Ordering code ANQ5
| ||||||
Motor installation position upward | SZ | The motor mounting direction can be changed. Ordering codeSZ |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-[EC,MC]-[3,5,10]-F15-[LS,R] |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-[EC,MC]-[3,5,10]-H20-[LS,R] |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-[EC,MC]-[3,5,10]-J-[LS,R] |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-[EC,MC]-NH-F15-[LS,R] |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-[EC,MC]-NH-H20-[LS,R] |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-[EC,MC]-NH-J-[LS,R] |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-NM-NH-F15-R |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-NM-NH-H20-R |
| E-CVDSA4-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-400-NM-NH-J-R |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-[EC,MC]-[3,5,10]-F15-[LS,R] |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-[EC,MC]-[3,5,10]-H20-[LS,R] |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-[EC,MC]-[3,5,10]-J-[LS,R] |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-[EC,MC]-NH-F15-[LS,R] |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-[EC,MC]-NH-H20-[LS,R] |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-[EC,MC]-NH-J-[LS,R] |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-NM-NH-F15-R |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-NM-NH-H20-R |
| E-CVDSA75-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-750-NM-NH-J-R |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10]-F15-[LS,R] |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10]-H20-[LS,R] |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10]-J-[LS,R] |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-[EC,IO,MC,RS]-NH-F15-[LS,R] |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-[EC,IO,MC,RS]-NH-H20-[LS,R] |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-[EC,IO,MC,RS]-NH-J-[LS,R] |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-NM-NH-F15-R |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-NM-NH-H20-R |
| E-CVDSA86-[50-300/5]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[4.5,8,12]-NM-NH-J-R |
| E-CVDSA-[50-300/10]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[25,40,60]-[INV,NM,SCM]-NH-F15-[G,J,R] |
| E-CVDSA-[50-300/10]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[25,40,60]-[INV,NM,SCM]-NH-H20-[G,J,R] |
| E-CVDSA-[50-300/10]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[25,40,60]-[INV,NM,SCM]-NH-J-[G,J,R] |
| E-CVDSA-[50-300/10]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[25,40,60]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-F15-[G,J,R] |
| E-CVDSA-[50-300/10]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[25,40,60]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-H20-[G,J,R] |
| E-CVDSA-[50-300/10]-[350-2000/5]-[5-150/1]-[10,20,30,40,50]-[25,40,60]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-J-[G,J,R] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conveyance Length | Belt Width/Belt Pitch B (mm) | Number of Baffles (pcs) | H Ribs Height (mm) | Output Power (W) | Specifications | Gear Head Reduction Ratio | Belt Specifications | Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | For Food Use · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | - | NM (No Motor) | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | 25 ～ 60 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | For Food Use · White PU | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | 25 ～ 60 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | General Use · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | 25 ～ 60 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | 25 ～ 60 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | For Food Use · White PU | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | 25 ～ 60 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | General Use · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 350 ～ 2000 | 50 ～ 300 | 5 ～ 150 | 10 ～ 50 | 25 ～ 60 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) |
Loading...
Application Industry
| Equipment Production | Semiconductor | Lithium Battery | ||
 |  |  | ||
| Food | Electronic & Electrical | Robot | ||
 |  |  |
Precaution
(1) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance. Clickhere.
(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance. Click
here.(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
Related Documents Click here
here Related product
Basic Information
| Drive Module Position | Head Drive | Belt Type | Flat Belt | Meandering Prevention | With Meandering Prevention Crosspiece |
|---|---|---|---|---|---|
| Motor Voltage | 220 V | Max. Mass of Conveyed Material(kg) | 20 | Tail Roller Dia. D (Tail Transfer Part R)(mm) | 50 |
| Drive Roller Dia.(mm) | 30 | Type | Add guide strip for deviation prevention | Maximum conveying speed of this series(m/min) | 63.3 |
Specification/Dimensions
-
Conveyance Length
-
Belt Width/Belt Pitch B(mm)
-
Number of Baffles(pcs)
-
H Ribs Height(mm)
-
Output Power (W)
-
Specifications
- INV (Three-phase 220 V Inverter Type)
- SCM (Single-phase 220 V Speed Control Type)
- NM (No Motor)
-
Gear Head Reduction Ratio
-
Belt Specifications
- For Food Use · White PU
- General Use · Green PVC
- No belt
-
Motor
- G (GPG Motor)
- J (JSCC Motor)
- R (No Motor · Gear Head)
-
type
- E-CVDSA
- E-CVDSA4
- E-CVDSA75
- E-CVDSA86
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 17 Day(s) or Less
- 20 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: Can the conveyor's operating direction be set to reverse?
- Answer: The current conveyor does not support reverse operation. If reverse operation is required, please contact customer service for customization.
- Question: Conveyor belt deviation is a product characteristic. How can the frequency of deviation be reduced?
- Answer: The main methods to prevent conveyor belt deviation are arc-shaped rollers and belts with guide strips. Curved rollers are suitable for lengths up to 2000 mm; belts with guide strips are suitable for long distances over 2000 mm.
- Question: If the existing standard models cannot meet your requirements and you need to modify the model but are concerned about debugging issues, do you have any good suggestions?
- Answer: For this situation, please contact customer service for customization to meet your individual needs.
- Question: If I need a stepper motor or a servo motor, can you provide them?
- Answer: You can select a conveyor model without a motor or speed controller and purchase a motor separately for assembly.
Additional Products in this Category
- Flat Belt Conveyor Full Belt Type - With Meandering Prevention Crosspiece, Head Drive, 2-Groove Frame (Pulley Dia. 30mm)
- Flat Belt Conveyor High Power Type - With Meandering Prevention Crosspiece, Head Drive, 3-Groove Frame (Pulley Dia. 60mm / 30mm)
- Flat Belt Conveyor High Power Type - Center Drive, 3-Groove Frame
- Timing Belt Conveyors - Dual Track, Head Drive, 2-Groove Frame
- Timing Belt Conveyors - Dual Track, Head Drive, 3-Groove Frame
- Flat Belt Conveyor, Head driver, Pulley Dia. 30mm
- Conveyor with double-row plastic chain, head drive, pulley diameter 69.7 mm
- Fine Conveyor II, Rotary Table RT
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
