Flat Belt Conveyor, Center Drive, Pulley Dia. 30mm, Short Body
Click this image to zoom it.
Move the mouse over the image to zoom
- Economy
MiSUMi Economy
Economy series Belt Conveyor
(i)Caution
- This single-phase motor is specified for 220V ±10%,50Hz/60Hz. Please ensure it is used within the permissible voltage range.
Part Number
Configured Part Number is shown.
Product overview
Economical conveyor with a reasonable structure design, enabling localized production. Multiple types of models are available to meet customers' design requirements for different usage scenarios, providing better selection options.
E-CVSJA: This model features a short body and is suitable for transportation applications where distance is limited.
E-CVSJA: This model features a short body and is suitable for transportation applications where distance is limited.
Product feature
Feature 1: Short body, suitable for transportation applications with limited distance in equipment.
Feature 2: Supports freely specified length and width, with the motor positioned underneath to minimize horizontal space occupation.
Feature 3: Belt width can be specified in 5 mm units, and pulley distance can also be specified in 5 mm units.
Feature 2: Supports freely specified length and width, with the motor positioned underneath to minimize horizontal space occupation.
Feature 3: Belt width can be specified in 5 mm units, and pulley distance can also be specified in 5 mm units.
Specification overview
■ Material table
■ Flat belt width - pulley center distance correspondence table
| Part name |  Material |  Surface treatment |
| Profile | Aluminum | Electrophoresis |
| Motor cover | Aluminum | Painted baked paint |
| Pulley holder | Aluminum | Painted baked paint |
■ Flat belt width - pulley center distance correspondence table
| Model | Belt width B | Pulley center distance L | |||||
| L220 to 250 | L255 to 275 | L280 to 300 | L305 to 325 | L330 to 375 | L380 to 600 | ||
| E-CVSJA | 50 to 110 | ● | ● | ● | ● | ● | ● |
| 115 to 150 | ● | ● | ● | ● | ● | ● | |
| 155 to 200 | ● | ● | ● | ● | ● | ● | |
| 205 to 250 | - | ● | ● | ● | ● | ● | |
| 255 to 300 | - | - | - | ● | ● | ● | |
Dimensional drawing
E-CVSJA
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.
Motor specification: 6W*
*Differences in power only affect the motor size. For the A dimension, please refer to the table below. The external dimensions of the other parts remain the same.
Enlarged view of profile cross-section (left and right symmetrical)
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.| L220 to 600 | Position | Specification | Configuration type |
| 4PCS | Section I (left and right) | M3 (hex) | Pre-installed (single slot) |
| 4PCS | Section J (left and right) | M6 (square) | Pre-installed (single slot) |
■ A dimension detailed table (speed regulation/inverter motor)
| Motor power | Motor | Reduction ratio | A | |
| Specification | Manufacturer | |||
| 6W | Speed regulation type | GPG | 3 to 18 | L118 |
| 25 to 180 | L128.5 | |||
| JSCC | 3 to 18 | L118 | ||
| 25 to 180 | L130 | |||
| 25W | Inverter type | GPG | 3 to 18 | L118 |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L141 | |||
| Inverter type | JSCC | 3 to 18 | L119 | |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L140 | |||
| 40W | Inverter type | GPG | 3 to 18 | L148 |
| 25 to 180 | L166 | |||
| Speed regulation type | 3 to 18 | L159 | ||
| 25 to 180 | L177 | |||
| Inverter type | JSCC | 3 to 18 | L152 | |
| 25 to 180 | L172 | |||
| Speed regulation type | 3 to 18 | L162 | ||
| 25 to 180 | L182 | |||
■ A dimension detailed table (stepper motor)
■ A dimension detailed table (servo motor)
■ A dimension detail (planetary reducer)
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
| Name | Motor model | A |
| Open-loop stepper motor | 57CM23 | L76 |
| 57CM26 | L85 | |
| 57CM31 | L88 | |
| 86CM45 | L80 | |
| 86CM80 | L98 |
■ A dimension detailed table (servo motor)
| Servo motor | Brand | A |
| 400W servo motor | Leadshine servo motor | L90.1 |
■ A dimension detail (planetary reducer)
| Gear ratio (x) | Supported motor specification | A |
| 3 5 10 | Equipped with a 400W servo motor | L77 |
| 3 5 10 | Equipped with a 57 stepper motor | L77 |
| 3 5 10 | Equipped with an 86 stepper motor | L110 |
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.Specification table
Please follow the selection procedure
to
, select the type and parameters, and then proceed with ordering.
■ Specification table
■ Speed control/inverter type
When selecting the INV inverter motor, the inverter is delivered together as an accessory.
■ Stepper type
When using a 57 stepper, the driver supports an input voltage of 24 V DC to 48 V DC. (Power supply not included)
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)
When using an 86 stepper with a torque of 8.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltages. (Power supply not included)
■ Servo type
When a servo motor is selected, the motor and driver are supplied by default with a single-phase 220 V power supply. In conveyor applications, a motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During use, control can be customized through host computer programming.
The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.
For oil resistance specifications, only the transmission surface is oil resistant. If oil gets on the back of the belt, it may become unusable.
When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.
When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
For belts other than those above, please refer to the specification overview by clicking
here.
to
, select the type and parameters, and then proceed with ordering. | Type | - |  B | - |  L | - | Motor selection | - |  Belt specification | - | Motor manufacturer selection | ||||
 Output power | - |  Specification | - |  Gear head reduction ratio | |||||||||||
| When there is no pulley When there is no motor or gear head | E-CVSJA E-CVSJA E-CVSJA | - - - | 100 100 100 | - - - | 500 500 500 | - - - | 25 25 25 | - - - | SCM INV NM | - - - | 25 25 NH | - - - | H9 J H9 | - - - | G G R |
■ Specification table
| Type | Type | Machine characteristics |
| E-CVSJA | Belt with guide strip for deviation prevention | Belt deviation prevention is stable, but there is a slight bulge at the bonding area of the center guide strip on the flat belt |
■ Speed control/inverter type
 Type |  B selectionSpecified unit 5 mm |  LSpecified unit 5 mm | Motor selection |  Belt specification(Material is generally PU) |  Motor | ||
 Torque (N⋅m) Power (W) |  Specification/Drive method |  Gear head reduction ratio | |||||
| E-CVSJA (With guide strip type) | 50 to 300 | 220 to 600 | 6 25 40 (Power W) Caution: 6 is not suitable for variable frequency | SCM (Single-phase 220 V speed regulation type) | 5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 Caution: When the output power is 6, 5–10 are not applicable. | H9(general use · green) W9(general use · white) U5(sliding · green) S5(sliding · white) D9(anti-static · black) F12(for food conveyance · white) O9(oil-resistant specification · green) Q10(for inclined use · green) Y12(general use · yellow PVC) V12(general use · red PVC) J(without belt) | G(GPG - Taiban motor) J(JSCC - Jingyan motor) |
| INV (3-phase 220 V inverter type) | |||||||
| NM(without motor) | NH(without gear head) | R(without motor and gear head) | |||||
When selecting the INV inverter motor, the inverter is delivered together as an accessory.■ Stepper type
| Type | B selection Specified unit 5 mm | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m) Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVSJA57 E-CVSJA86 (with guide bar type) | 50 to 300 | 220 to 600 | 2.3 2.6 3.1 (57 stepper type / torque N⋅m) | MC(pulse universal type) IO(IO control type) EC(bus EtherCAT) RS(RS485) | 3 5 10 NH(without gear head) Caution: 3 to 10 are single pole | H9(general use · green) W9(general use · white) U5(sliding · green) S5(sliding · white) D9(anti-static · black) F12(for food conveyance · white) O9(oil-resistant specification · green) Q10(for inclined use · green) Y12(general use · yellow PVC) V12(general use · red PVC) J(without belt) | LS (Leisai motor) |
| 4.5 8.0 (86 stepper type / torque N⋅m) | |||||||
| NM(No motor · drive) | R (without motor, driver, and gear head) | ||||||
When using a 57 stepper, the driver supports an input voltage of 24 V DC to 48 V DC. (Power supply not included)When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)When using an 86 stepper with a torque of 8.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltages. (Power supply not included)■ Servo type
| Type | B selection Specified unit 5 mm | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m) Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVSJA4 (with guide bar type) | 50 to 300 | 220 to 600 | 400 (servo type power W) | MC(pulse universal type) EC(EtherCAT bus) | 3 5 10 NH(without gear head) Caution: 3 to 10 are single N pole | H9(general use · green) W9(general use · white) U5(sliding · green) S5(sliding · white) D9(anti-static · black) F12(for food conveyance · white) O9(oil-resistant specification · green) Q10(for inclined use · green) Y12(general use · yellow PVC) V12(general use · red PVC) J(without belt) | LS (Leadshine motor) |
| NM(No motor · drive) | R(without motor, drive, or gear head) | ||||||
When a servo motor is selected, the motor and driver are supplied by default with a single-phase 220 V power supply. In conveyor applications, a motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During use, control can be customized through host computer programming.The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.For oil resistance specifications, only the transmission surface is oil resistant. If oil gets on the back of the belt, it may become unusable.When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.For belts other than those above, please refer to the specification overview by clicking
here.Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1
Belt width: B = 300 mm, thickness 0.9 mm, roller center distance: L = 600 mm
Test motor: JSCC (J) timing pulley transmission ratio 1:1Belt width: B = 300 mm, thickness 0.9 mm, roller center distance: L = 600 mm
| Gear head reduction ratio | Flat belt speed (m/min) | |
| SCM speed regulation type | INV inverter type | |
| 5 | 25.4 to 42.4 | 52.8 |
| 7.5 | 17.0 to 28.3 | 35.2 |
| 10 | 12.7 to 21.2 | 26.4 |
| 12.5 | 10.2 to 17.0 | 21.1 |
| 15 | 8.5 to 14.1 | 17.6 |
| 18 | 7.1 to 11.8 | 14.7 |
| 25 | 5.1 to 8.5 | 10.6 |
| 30 | 4.2 to 7.1 | 8.8 |
| 36 | 3.5 to 5.9 | 7.3 |
| 50 | 2.5 to 4.2 | 5.3 |
| 60 | 2.1 to 3.5 | 4.4 |
| 75 | 1.7 to 2.8 | 3.5 |
| 90 | 1.4 to 2.4 | 2.9 |
| 100 | 1.3 to 2.1 | 2.6 |
| 120 | 1.1 to 1.8 | 2.2 |
| 150 | 0.8 to 1.4 | 1.8 |
| 180 | 0.7 to 1.2 | 1.5 |
Table 2: Correspondence between load and linear speed (stepper motor)
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 24 V DC (current 5 A) | Voltage 48 V DC (current 6 A) | |||
| 57CM23 | 57CM26 | 57CM31 | 86CM45 | 86CM80 | |||
| Load (kg) | |||||||
| 100 | NH | 15.7 | 0.5 | 1 | 2 | 4.5 | 8.5 |
| 200 | 31.4 | 0.5 | 0.5 | 1.5 | 3 | 6.5 | |
| 200 | 3 | 10.5 | 5.5 | 6 | 10 | 15 | 15 |
| 5 | 6.3 | 15 | 15 | 15 | 15 | 15 | |
| 10 | 3.1 | 15 | 15 | 15 | 15 | 15 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Belt width: B=200 mm, thickness 0.9 mm, roller center distance: L=600 mm
Table 3: Correspondence table of load and linear speed (servo motor)
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 220 V AC |
| 400W | |||
| Load (kg) | |||
| 3000 | NH | 100 | 1 |
| 3 | 100 | 15 | |
| 5 | 94.2 | 15 | |
| 10 | 47.1 | 15 |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Belt width: B=200 mm, thickness 0.9 mm, roller center distance: L=600 mm
The transmission capacity will vary depending on the operating condition.The chart shows the transmission capacity under horizontal conditions.When selecting a speed regulation motor, the transmission capacity does not increase as the speed decreases.When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.Alteration
 | Type | - | B | - | L | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Alteration | ||||
| Output power | - | Specification | - | Gear head reduction ratio | |||||||||||||
| E-CVSJA | - | 100 | - | 500 | - | 25 | - | SCM | - | 25 | - | H9 | - | G | - | MP170 | |
| Alterations | Code | Spec | ||||||
Driving part position specification | MP | The motor installation position can be changed. Ordering code MP200 155 ≤ MP ≤ L-235 *The minimum value of L is 390 Only the center drive type can be specified. | ||||||
Mounting bracket for speed controller | SCB | Comes with a mounting bracket for the speed controller. Ordering code SCB | ||||||

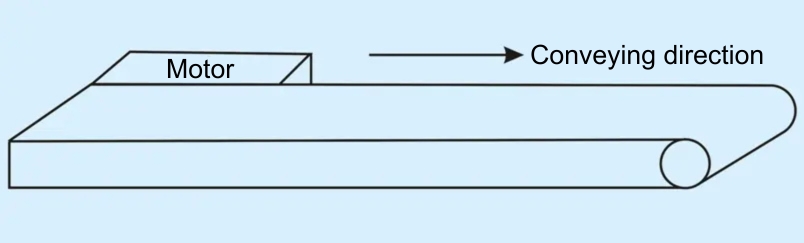

Conveyor belt reverse conveyance | FX | Reverse conveyance. Ordering code FX | ||||||
Increase the number of nuts in the profile groove. Select only when the standard quantity is insufficient (see dimensional drawing information for standard quantity and specification) | ANQ | Increase the quantity of nuts in the profile groove. Ordering codeANQ5
|
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-D9-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-F12-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-H9-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-J-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-O14-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-Q10-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-S5-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-U5-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-V12-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-W9-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-[3,5,10]-Y12-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-D9-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-F12-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-H9-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-J-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-O14-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-Q10-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-S5-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-U5-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-V12-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-W9-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-[EC,MC]-NH-Y12-[LS,R] |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-D9-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-F12-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-H9-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-J-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-O14-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-Q10-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-S5-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-U5-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-V12-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-W9-R |
| E-CVSJA4-[50-300/5]-[220-600/5]-400-NM-NH-Y12-R |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-D9-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-F12-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-H9-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-J-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-O14-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-Q10-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-S5-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-U5-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-V12-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-W9-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-[3,5,10]-Y12-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-D9-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-F12-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-H9-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-J-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-O14-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-Q10-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-S5-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-U5-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-V12-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-W9-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-[EC,IO,MC,RS]-NH-Y12-[LS,R] |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-NM-NH-D9-R |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-NM-NH-F12-R |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-NM-NH-H9-R |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-NM-NH-J-R |
| E-CVSJA57-[50-300/5]-[220-600/5]-[2.3,2.6,3.1]-NM-NH-O14-R |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conveyance Length | Belt Width/Belt Pitch B (mm) | Specifications | Output Power (W) | Gear Head Reduction Ratio | Belt Specifications | Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Anti-Static Use · Black | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Food Conveyance · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | Oil-resistant Type · Green PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Incline · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Sliding · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Sliding · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Anti-Static Use · Black | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Food Conveyance · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | Oil-resistant Type · Green PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Incline · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Sliding · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Sliding · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | For Anti-Static Use · Black | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | For Food Conveyance · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | General Use · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | Oil-resistant Type · Green PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | For Incline · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | For Sliding · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | For Sliding · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | General Use · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Anti-Static Use · Black | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Food Conveyance · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | Oil-resistant Type · Green PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Incline · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Sliding · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | For Sliding · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | 5 ～ 10 | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Anti-Static Use · Black | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Food Conveyance · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | Oil-resistant Type · Green PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Incline · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Sliding · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | For Sliding · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | - | - | NH (Gearless Head) | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | For Anti-Static Use · Black | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | For Food Conveyance · White | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | General Use · Green | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 220 ～ 600 | 50 ～ 300 | NM (No Motor) | - | NH (Gearless Head) | Oil-resistant Type · Green PU | R (No Motor · Gear Head) |
Loading...
Application Industry
| Equipment Production | Semiconductor | Lithium Battery | ||
 |  |  | ||
| Food | Electronic & Electrical | Robot | ||
 |  |  |
Precaution
(1) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.
Clickhere.
(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.
Click
here.(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
Related Documents Click here
here Related product
Basic Information
| Drive Module Position | Center Drive | Belt Type | Flat Belt | Meandering Prevention | With Meandering Prevention Crosspiece |
|---|---|---|---|---|---|
| Motor Voltage | 220 V | Max. Mass of Conveyed Material(kg) | 15 | Tail Roller Dia. D (Tail Transfer Part R)(mm) | 30 |
| Drive Roller Dia.(mm) | 30 | Reverse Switch Option | Not Provided | Type | Belt with guide strip for deviation prevention |
| Maximum conveying speed of this series(m/min) | 100 |
Specification/Dimensions
-
Conveyance Length
-
Belt Width/Belt Pitch B(mm)
-
Specifications
- INV (Three-phase 220 V Inverter Type)
- SCM (Single-phase 220 V Speed Control Type)
- NM (No Motor)
-
Output Power (W)
-
Gear Head Reduction Ratio
-
Belt Specifications
-
Motor
- G (GPG Motor)
- J (JSCC Motor)
- R (No Motor · Gear Head)
-
type
- E-CVSJA
- E-CVSJA4
- E-CVSJA57
- E-CVSJA86
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 17 Day(s) or Less
- 18 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: Can the conveyor's operating direction be set to reverse?
- Answer: The current conveyor does not support reverse operation. If reverse operation is required, please contact customer service for customization.
- Question: Conveyor belt deviation is a product characteristic. How can the frequency of deviation be reduced?
- Answer: The main methods to prevent conveyor belt deviation are arc-shaped rollers and belts with guide strips. Curved rollers are suitable for lengths up to 2000 mm; belts with guide strips are suitable for long distances over 2000 mm.
- Question: If the existing standard models cannot meet your requirements and you need to modify the model but are concerned about debugging issues, do you have any good suggestions?
- Answer: For this situation, please contact customer service for customization to meet your individual needs.
- Question: If I need a stepper motor or a servo motor, can you provide them?
- Answer: You can select a conveyor model without a motor or speed controller and purchase a motor separately for assembly.
Additional Products in this Category
- Flat Belt Conveyor SV Series - With Meandering Prevention Crosspiece, Center Drive, 2-Groove Frame (Pulley Dia. 30mm)
- Flat Belt Conveyor Short Length Type - With Meandering Prevention Crosspiece, Center Drive, 2-Groove Frame (Pulley Dia. 30mm)
- Timing Belt Conveyors - Dual Track, Center Drive, 2-Groove Frame
- Timing Belt Conveyors - Dual Track, Center Drive, 3-Groove Frame
- Flat Belt Conveyors - Guided, Head Drive, 3-Slot Frame (Pulley Dia. 50mm)
- Timing Belt Conveyor, Dual Track, Head Driver, Pulley Dia. 50mm, Built-in Motor
- Flat Belt Conveyor, Head driver, Pulley Dia. 30mm
- Belcon Mini Equipment for Incorporation Into Equipments and Machines PETA-CON 40 Roller Edge Type DHQR
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
