Flat Belt Conveyor, Head driver, High Load Type, Pulley Dia. 50mm
Click this image to zoom it.
Move the mouse over the image to zoom
- Economy
MiSUMi Economy
Economy series Belt Conveyor
(i)Caution
- This single-phase motor is specified for 220V ±10%,50Hz/60Hz. Please ensure it is used within the permissible voltage range.
Part Number
Configured Part Number is shown.
Product overview
Economical conveyor with a reasonable structure design, enabling localized production. Multiple types of models are available to meet customers' design requirements for different usage scenarios, providing better selection options.
E-CVSG: This model uses a European standard 4080 profile, with a conveyance load of up to 200 kg.
E-CVSG: This model uses a European standard 4080 profile, with a conveyance load of up to 200 kg.
Product feature
Feature 1: The conveyor body uses an aluminum profile, achieving an overall lightweight design.
Feature 2: Medium and heavy load, universal European standard 4080 profile makes it easy to build profile brackets, and is widely used in logistics lines.
Feature 3: The conveyor belt roller pitch has a wide selection range, can be specified in 5 mm increments, with a maximum pitch of up to 3 meters.
Feature 2: Medium and heavy load, universal European standard 4080 profile makes it easy to build profile brackets, and is widely used in logistics lines.
Feature 3: The conveyor belt roller pitch has a wide selection range, can be specified in 5 mm increments, with a maximum pitch of up to 3 meters.
Specification overview
■ Material table
■ Flat belt width - pulley center distance correspondence table
| Part name |  Material |  Surface treatment |
| Profile | Aluminum | Anodized |
| Motor cover | Aluminum | Painted baked paint |
| Pulley holder | Aluminum | Painted baked paint |
■ Flat belt width - pulley center distance correspondence table
| Model | Belt width B | Pulley center distance L | |||
| L600 to 1500 | L1505 to 2000 | L2005 to 2500 | L2505 to 3000 | ||
| E-CVSG | 100 to 200 | ● | ● | ● | ● |
| 205 to 400 | ● | ● | ● | ● | |
| 405 to 600 | ● | ● | ● | ● | |
| 605 to 800 | ● | ● | ● | ● | |
Dimensional drawing
E-CVSG
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.
Test motor: Leadshine (LS) Timing pulley transmission ratio 1:1
Belt width: B=400 mm, thickness 2.0 mm Roller center distance: L=1000 mm
The chart shows the transport capacity under horizontal conditions.
The transport capacity will vary depending on the operating condition.
When selecting a speed regulation motor, the transport capacity does not increase as the speed decreases.
When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.
Motor specification: 200W*
*Differences in power only affect the motor size. For the A dimension, please refer to the table below. The external dimensions of the other parts remain the same.
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.| L600 to 999 | L1000 to 1499 | L1500 or more | Specification | Configuration type |
| 16PCS | 24PCS | 32PCS | M6 (T shape) | Accessory |
■ A dimension detail table (speed regulation/inverter motor)
| Motor power | Motor | Reduction ratio | A | |
| Specification | Manufacturer | |||
| 120W | Inverter type | GPG | 3 to 18 | L183 |
| 25 to 180 | L201 | |||
| Speed regulation type | 3 to 18 | L194.5 | ||
| 25 to 180 | L212.5 | |||
| Inverter type | JSCC | 3 to 18 | L196 | |
| 25 to 180 | L216 | |||
| Speed regulation type | 3 to 18 | L207 | ||
| 25 to 180 | L227 | |||
| 200W | Inverter type | GPG | 3 to 18 | L230 |
| 25 to 180 | L230 | |||
| Speed regulation type | 3 to 18 | L240.5 | ||
| 25 to 180 | L240.5 | |||
| Inverter type | JSCC | 3 to 18 | L219 | |
| 25 to 180 | L243 | |||
| Speed regulation type | 3 to 18 | L231 | ||
| 25 to 180 | L255 | |||
■ A dimension detail table (stepper motor)
■ A dimension detail table (planetary reducer)
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
| Brand | Motor model | A |
| Leadshine stepper motor (open loop) | 86CM45 | L80 |
| 86CM80 | L98 | |
| 86CM120 | L129 |
■ A dimension detail table (planetary reducer)
| Gear ratio (x) | Supported motor specification | A |
| 3 5 10 | Equipped with an 86 stepper motor | L110 |
| 15 20 25 30 | L130 |
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.Specification table
Please follow the selection procedure
to
, select the type and parameters, and then proceed with ordering.
■ Specification table
■ Speed control/inverter type
When there is no gear head and the gear head reduction ratio is ≤ 10, the drive side uses timing belt transmission; when the gear head reduction ratio is > 10, the drive side uses chain transmission.
When selecting the INV inverter motor, the inverter is delivered together as an accessory.
■ Stepper type
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)
When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltage. (Power supply not included)
The drive side uses timing belt transmission.
The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.
For oil resistance specifications, only the transmission surface is oil resistant. If oil gets on the back of the belt, it may become unusable.
When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.
When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
For belts other than those above, please refer to the specification overview by clicking
here.
Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Deceleration head reduction ratio-speed correspondence table
INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).
Table 2: Correspondence table of load and linear speed (stepper motor)
to
, select the type and parameters, and then proceed with ordering. | Type | - |  B | - |  L | - | Motor selection | - |  Belt specification | - | Motor manufacturer selection | ||||
 Output power | - |  Specification | - |  Gear head reduction ratio | |||||||||||
| When there is no pulley When there is no motor or gear head | E-CVSG E-CVSG E-CVSG | - - - | 300 300 300 | - - - | 2000 2000 2000 | - - - | 120 120 120 | - - - | SCM INV NM | - - - | 25 25 NH | - - - | H20 J H20 | - - - | G G R |
■ Specification table
| Type | Type | Machine characteristics |
| E-CVSG | Belt with guide strip for deviation prevention | Belt deviation prevention is stable, but there is a slight bulge at the bonding area of the center guide strip on the flat belt |
■ Speed control/inverter type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)//Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVSG (With guide strip type) | 100 to 800 | 600 to 3000 | 120 200 (Power W) | SCM (Single-phase 220 V speed regulation type) | 5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 | H20(general use · green PVC) W20(general use · white PVC) U13(sliding · green PVC) S13(sliding · white PVC) D20(anti-static · green PVC) F15(for food conveying · white PU) O14(oil-resistant specification · green PU) Y20(general use · yellow PVC) V20(general use · red PVC) J(without belt) | G(GPG - Taiban motor) J(JSCC - Jingyan motor) |
| INV (3-phase 220 V inverter type) | |||||||
| NM(without motor) | NH(without gear head) | R(without motor and gear head) | |||||
When there is no gear head and the gear head reduction ratio is ≤ 10, the drive side uses timing belt transmission; when the gear head reduction ratio is > 10, the drive side uses chain transmission. When selecting the INV inverter motor, the inverter is delivered together as an accessory.■ Stepper type
| Type | B Specified unit 5 mm | L Specified unit 5 mm | Motor selection | Belt specification (Material is generally PU) | Motor | ||
| Torque (N⋅m)//Power (W) | Specification/Drive method | Gear head reduction ratio | |||||
| E-CVSG86 (with guide strip type) | 100 to 800 | 600 to 3000 | 4.5 8.0 12.0 (86 stepper type / torque N⋅m) | MC (pulse universal type) IO (IO control type) EC (EtherCAT bus) RS (RS485 communication) | 3 5 10 15 20 25 30 NH (without gear head) Caution: 3 to 10 are single stage | H20(general use · green PVC) W20(general use · white PVC) U13(sliding · green PVC) S13(sliding · white PVC) D20(anti-static · green PVC) F15(for food conveying · white PU) O14(oil-resistant specification · green PU) Y20(general use · yellow PVC) V20(general use · red PVC) J(without belt) | LS (Leadshine motor) |
| NM (without motor and driver) | R (without motor, driver, and gear head) | ||||||
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltage. (Power supply not included)The drive side uses timing belt transmission.The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.For oil resistance specifications, only the transmission surface is oil resistant. If oil gets on the back of the belt, it may become unusable.When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.For belts other than those above, please refer to the specification overview by clicking
here.Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1
Belt width: B=600 mm, thickness 2.0 mm Roller center distance: L=3000 mm
Test motor: JSCC (J) timing pulley transmission ratio 1:1Belt width: B=600 mm, thickness 2.0 mm Roller center distance: L=3000 mm
■ Deceleration head reduction ratio-speed correspondence table
INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).| Gear head reduction ratio | Flat belt speed (m/min) | |
| SCM speed regulation type | INV inverter type | |
| 5 | 40.7 to 67.8 | 84.4 |
| 7.5 | 27.1 to 45.2 | 56.3 |
| 10 | 20.3 to 33.9 | 42.2 |
| 12.5 | 16.3 to 27.1 | 33.8 |
| 15 | 13.6 to 22.6 | 28.1 |
| 18 | 11.3 to 18.8 | 23.4 |
| 25 | 8.1 to 13.6 | 16.9 |
| 30 | 6.8 to 11.3 | 14.1 |
| 36 | 5.7 to 9.4 | 11.7 |
| 50 | 4.1 to 6.8 | 8.4 |
| 60 | 3.4 to 5.7 | 7.0 |
| 75 | 2.7 to 4.5 | 5.6 |
| 90 | 2.3 to 3.8 | 4.7 |
| 100 | 2.0 to 3.4 | 4.2 |
| 120 | 1.7 to 2.8 | 3.5 |
| 150 | 1.4 to 2.3 | 2.8 |
| 180 | 1.1 to 1.9 | 2.3 |
| Speed (rpm) | Gear head reduction ratio | Max. linear speed (m/min) | Voltage 48 V DC (current 6 A) | ||
| 86CM45 | 86CM80 | 86CM120 | |||
| Load (kg) | |||||
| 100 | NH | 25.1 | / | / | / |
| 150 | 37.7 | / | / | / | |
| 200 | 3 | 16.7 | / | 6 | 8 |
| 5 | 10.0 | 13 | 30 | 35 | |
| 10 | 5.0 | 70 | 85 | 160 | |
| 15 | 3.3 | 110 | 130 | 200 | |
| 20 | 2.5 | 150 | 180 | 200 | |
| 25 | 2.0 | 185 | 200 | 200 | |
| 30 | 1.7 | 200 | 200 | 200 | |
Test motor: Leadshine (LS) Timing pulley transmission ratio 1:1Belt width: B=400 mm, thickness 2.0 mm Roller center distance: L=1000 mm
The chart shows the transport capacity under horizontal conditions.The transport capacity will vary depending on the operating condition.When selecting a speed regulation motor, the transport capacity does not increase as the speed decreases.When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.Alteration
 | Type | - | B | - | L | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Alteration | ||||
| Output power | - | Specification | - | Gear head reduction ratio | |||||||||||||
| E-CVSG | - | 300 | - | 2000 | - | 120 | - | SCM | - | 25 | - | H20 | - | G | - | MK | |
| Alterations | Code | Spec | ||||||

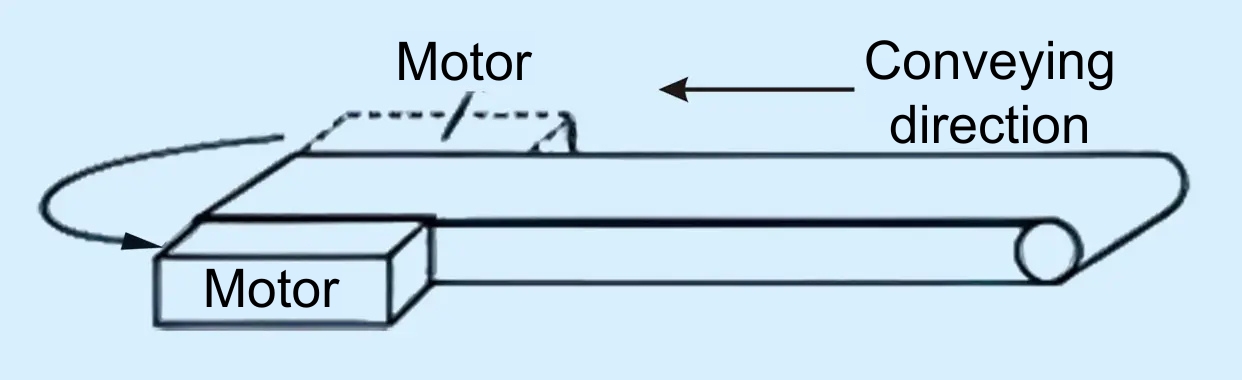

Reverse motor installation position | MK | The motor installation position can be changed. Ordering code MK Can only be specified for head drive type. | ||||||
Mounting bracket for speed controller | SCB | Comes with a mounting bracket for the speed controller. Ordering code SCB | ||||||

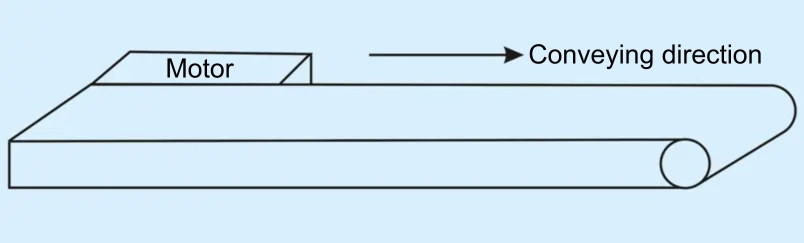

Conveyor belt reverse conveyance | FX | Reverse conveyance. Ordering code FX | ||||||
Conveyor belt bidirectional conveyance Only supports models with guide strips | SX | Bidirectional conveyance. Ordering code SX | ||||||
Increase the quantity of nuts in the profile groove Select only when the standard quantity is insufficient (see dimensional drawing information for standard quantity and specification) | ANQ | Increase the quantity of nuts in the profile groove. Ordering code ANQ5
|
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-D20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-F15-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-H20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-J-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-O14-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-S13-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-U13-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-V20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-W20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-[3,5,10,15,20,25,30]-Y20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-D20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-F15-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-H20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-J-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-O14-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-S13-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-U13-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-V20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-W20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-[EC,IO,MC,RS]-NH-Y20-[LS,R] |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-D20-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-F15-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-H20-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-J-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-O14-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-S13-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-U13-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-V20-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-W20-R |
| E-CVSG86-[100-800/5]-[600-3000/5]-[4.5,8,12]-NM-NH-Y20-R |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-D20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-F15-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-H20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-J-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-O14-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-S13-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-U13-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-V20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-W20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,NM,SCM]-NH-Y20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-D20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-F15-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-H20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-J-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-O14-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-S13-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-U13-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-V20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-W20-[G,J,R] |
| E-CVSG-[100-800/10]-[600-3000/5]-[120,200]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-Y20-[G,J,R] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conveyance Length | Belt Width/Belt Pitch B (mm) | Output Power (W) | Specifications | Gear Head Reduction Ratio | Belt Specifications | Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | Anti-static · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | For Food Conveyance · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | Oil-resistant Specification · Green PU) | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | For Sliding · White PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | For Sliding · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | General Purpose · White PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | 5 ～ 30 | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | Anti-static · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | For Food Conveyance · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | Oil-resistant Specification · Green PU) | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | For Sliding · White PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | For Sliding · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | General Purpose · White PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | - | NH (Gearless Head) | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | Anti-static · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | For Food Conveyance · White PU | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | General Use · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | Oil-resistant Specification · Green PU) | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | For Sliding · White PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | For Sliding · Green PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | General Use · Red PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | General Purpose · White PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 17 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | - | NM (No Motor) | NH (Gearless Head) | General Use · Yellow PVC | R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | Anti-static · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | For Food Conveyance · White PU | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | General Use · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | Oil-resistant Specification · Green PU) | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | For Sliding · White PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | For Sliding · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | General Use · Red PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | General Purpose · White PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | General Use · Yellow PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | Anti-static · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | For Food Conveyance · White PU | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | General Use · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | Oil-resistant Specification · Green PU) | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | For Sliding · White PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | For Sliding · Green PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | General Use · Red PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | General Purpose · White PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | ||
- | 1 Piece(s) | 20 Day(s) or more | 600 ～ 3000 | 100 ～ 800 | 120 ～ 200 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | General Use · Yellow PVC | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) |
Loading...
Application Industry
| Equipment Production | Semiconductor | Lithium Battery | ||
 |  |  | ||
| Food | Electronic & Electrical | Robot | ||
 |  |  |
Precaution
(1) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model. For the deviation adjustment method, clickhere.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.
(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model. For the deviation adjustment method, click
here.(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.
(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
Related Documents Click here
here Related product
| Economy conveyor flat belt head drive Pulley diameter 60 mm high output type | Economy conveyor flat belt built-in motor drive Pulley diameter 70 mm | Economy conveyor double-row timing belt head drive Pulley diameter 70 mm built-in motor | ||
 |  |  | ||
| Representative model: E-CVSE | Representative model: E-CVSMA | Representative model: E-CVGTE |
Basic Information
| Drive Module Position | Head Drive | Belt Type | Flat Belt | Meandering Prevention | With Meandering Prevention Crosspiece |
|---|---|---|---|---|---|
| Motor Voltage | 220 V | Max. Mass of Conveyed Material(kg) | 200 | Tail Roller Dia. D (Tail Transfer Part R)(mm) | 80 |
| Drive Roller Dia.(mm) | 80 | Type | Belt with guide strip for deviation prevention | Maximum conveying speed of this series(m/min) | 84.4 |
Specification/Dimensions
-
Conveyance Length
-
Belt Width/Belt Pitch B(mm)
-
Output Power (W)
-
Specifications
- INV (Three-phase 220 V Inverter Type)
- SCM (Single-phase 220 V Speed Control Type)
- NM (No Motor)
-
Gear Head Reduction Ratio
-
Belt Specifications
-
Motor
- G (GPG Motor)
- J (JSCC Motor)
- R (No Motor · Gear Head)
-
type
- E-CVSG
- E-CVSG86
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 17 Day(s) or Less
- 20 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: Can the conveyor's operating direction be set to reverse?
- Answer: The current conveyor does not support reverse operation. If reverse operation is required, please contact customer service for customization.
- Question: Conveyor belt deviation is a product characteristic. How can the frequency of deviation be reduced?
- Answer: The main methods to prevent conveyor belt deviation are arc-shaped rollers and belts with guide strips. Curved rollers are suitable for lengths up to 2000 mm; belts with guide strips are suitable for long distances over 2000 mm.
- Question: If the existing standard models cannot meet your requirements and you need to modify the model but are concerned about debugging issues, do you have any good suggestions?
- Answer: For this situation, please contact customer service for customization to meet your individual needs.
- Question: If I need a stepper motor or a servo motor, can you provide them?
- Answer: You can select a conveyor model without a motor or speed controller and purchase a motor separately for assembly.
Additional Products in this Category
- Flat Belt Conveyor High Power Type - Head Drive, 3-Groove Frame
- Flat Belt Conveyors - Head Drive, 2-Groove Frame (Pulley Dia.30mm)
- Timing Belt Conveyors - Dual Track, Head Drive, 3-Groove Frame
- Timing Belt Conveyor, Dual Track, Head Driver, Pulley Dia. 70mm
- Flat Belt Conveyor, Head driver, Pulley Dia. 50mm
- Timing Belt Conveyor, Single Track, Head Driver, Pulley Dia. 20mm
- Jabcon meandering-less type belt conveyor head drive
- Belcon Mini III Short Machine Length Knife Edge Type for Transferring Small Items Between Conveyors DMJS
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
