Flat Belt Conveyor with Backlight, Center Drive, Pulley Dia. 50mm
Click this image to zoom it.
Move the mouse over the image to zoom
- Economy
MiSUMi Economy
Economy series Belt Conveyor
(i)Caution
- This single-phase motor is specified for 220V ±10%,50Hz/60Hz. Please ensure it is used within the permissible voltage range.
Part Number
Configured Part Number is shown.
Product overview
Economical conveyor with a reasonable structure design, enabling localized production. Multiple types of models are available to meet customers' design requirements for different usage scenarios, providing better selection options.
E-CVBTN: LED backlight type used for foreign object inspection.
E-CVBTN: LED backlight type used for foreign object inspection.
Product feature
Feature 1: The conveyor body uses an aluminum profile, achieving an overall lightweight design.
Feature 2: The conveyor pulley pitch offers a wide selection range and can be specified in 5 mm increments, with a maximum pitch of up to 3 meters.
Feature 3: Uses a specialized light transmission belt, with a parallel light source on the underside of the belt. It is widely used in industries for appearance, external dimension, and defect detection, and also facilitates multi-line connection.
Feature 2: The conveyor pulley pitch offers a wide selection range and can be specified in 5 mm increments, with a maximum pitch of up to 3 meters.
Feature 3: Uses a specialized light transmission belt, with a parallel light source on the underside of the belt. It is widely used in industries for appearance, external dimension, and defect detection, and also facilitates multi-line connection.
Specification overview
■ Material table
| Part name |  Material |  Surface treatment |
| Profile | Aluminum | Electrophoresis |
| Motor cover | Aluminum | Painted baked paint |
| Pulley holder | Aluminum | Painted baked paint |
Dimensional drawing
E-CVBTN
When L > 2000, one belt support roller is included.
The dimensions shown in the drawing are for belt specification K9 (thickness 0.9 mm).
When selecting a speed control motor, the speed controller is supplied as an accessory, is not installed on the main unit, and does not include a mounting bracket.
If a bracket for the speed controller is required, please use additional processing (SCB). Click
here
*Differences in power only affect the motor size. For the A dimension, please refer to the table below. The external dimensions of the other components remain the same.
Standard nut allocation table for profile groove: L value (center distance unit: mm)Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.
Motor specification: 25W*
When L > 2000, one belt support roller is included.The dimensions shown in the drawing are for belt specification K9 (thickness 0.9 mm).When selecting a speed control motor, the speed controller is supplied as an accessory, is not installed on the main unit, and does not include a mounting bracket.If a bracket for the speed controller is required, please use additional processing (SCB). Click
here*Differences in power only affect the motor size. For the A dimension, please refer to the table below. The external dimensions of the other components remain the same.
Enlarged view of profile cross-section (left and right symmetrical)
Standard nut allocation table for profile groove: L value (center distance unit: mm)
Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model. | L540 to 999 | L1000 to 1499 | L1500 or more | Position | Specification | Configuration type |
| 4PCS | 6PCS | 8PCS | X section (left and right) | M3 (hex) | Accessory |
| 4PCS | 6PCS | 8PCS | Y section (left and right) | M6 (square) | Accessory |
■ A dimension detail table (speed regulation/inverter motor)
| Motor power | Motor | Reduction ratio | A | |
| Specification | Manufacturer | |||
| 25W | Inverter type | GPG | 3 to 18 | L118 |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L141 | |||
| Inverter type | JSCC | 3 to 18 | L119 | |
| 25 to 180 | L130 | |||
| Speed regulation type | 3 to 18 | L129 | ||
| 25 to 180 | L140 | |||
| 40W | Inverter type | GPG | 3 to 18 | L148 |
| 25 to 180 | L166 | |||
| Speed regulation type | 3 to 18 | L159 | ||
| 25 to 180 | L177 | |||
| Inverter type | JSCC | 3 to 18 | L152 | |
| 25 to 180 | L172 | |||
| Speed regulation type | 3 to 18 | L162 | ||
| 25 to 180 | L182 | |||
| 60W | Inverter type | GPG | 3 to 18 | L168 |
| 25 to 180 | L186 | |||
| Speed regulation type | 3 to 18 | L179.5 | ||
| 25 to 180 | L197.5 | |||
| Inverter type | JSCC | 3 to 18 | L171 | |
| 25 to 180 | L191 | |||
| Speed regulation type | 3 to 18 | L182 | ||
| 25 to 180 | L202 | |||
■ A dimension detail table (stepper motor)
■ A dimension detailed table (servo motor)
■ A dimension detail table (planetary reducer)
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
| Name | Motor model | A |
| Leadshine stepper motor (open loop) | 86CM45 | L80 |
| 86CM80 | L98 |
| Servo motor | Brand | A |
| 400W servo motor | Leadshine servo motor | L90.1 |
| 750W servo motor | L95.7 |
| Gear ratio (x) | Supported motor specification | A |
| 3 5 10 | Equipped with 400W servo motor | L77 |
| 3 5 10 | Equipped with a 750W servo motor | L110 |
| 3 5 10 | Equipped with an 86 stepper motor | L110 |
When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.Specification table
Please follow the selection procedure
to
, select the type and parameters, and then proceed with ordering.
■ Specification table
■ Speed control/inverter type
When selecting the INV inverter motor, the inverter is delivered together as an accessory.
■ Stepper type
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)
When using an 86 stepper with a torque of 8.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltages. (Power supply not included)
■ Servo type
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.
The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.
When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.
When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
For backlit type, belt width B = illuminated width W + 40. For detailed specification, please refer to the specification overview.
■ Deceleration head reduction ratio-speed correspondence table
INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).
Table 2: Correspondence table of load and linear speed (stepper motor)
to
, select the type and parameters, and then proceed with ordering. | Type | - |  W | - |  L | - |  E | - |  F | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Light color | ||||
 Output power | - |  Specification | - |  Gear head reduction ratio | |||||||||||||||||
| When there is no pulley When there is no motor or gear head | E-CVBTN E-CVBTN E-CVBTN | - - - | 100 100 100 | - - - | 1000 1000 1000 | - - - | 90 90 90 | - - - | 100 100 100 | - - - | 25 25 25 | - - - | SCM INV NM | - - - | 25 25 NH | - - - | K9 J K9 | - - - | G G R | - - - | H H H |
■ Specification table
| Type | Type | Machine characteristics |
| E-CVBTN | Arc surface roller deviation prevention | Good flat belt surface contact, high flatness precision |
■ Speed control/inverter type
| Type | W Selection | L Specified unit 5 mm | E Light source position | F Light source length | Motor selection | Belt specification (Material is generally PU) | Motor | Light color | ||
| Torque/Power (W) | Specification/Drive method | Gear head reduction ratio | ||||||||
| E-CVBTN (Arc surface roller type) | 50 | 540 to 3000 | 80 to 2500 | 50 100 | 25 40 60 (Power W) | SCM (Single-phase 220 V speed regulation type) INV (3-phase 220 V inverter type) | 5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 | K9(Translucent belt · White) J(No belt) | G(GPG - Taiban motor) J(JSCC - Jingyan motor) | H(White) R(Red) G(Green) U(Blue) W(Infrared) Z(Ultraviolet) |
| 100 | 100 150 | |||||||||
| 150 | 200 250 | |||||||||
| 200 | 200 250 | |||||||||
| 250 | 250 300 | |||||||||
| 300 | 300 400 | NM(without motor) | NH(without gear head) | R(without motor and gear head) | ||||||
When selecting the INV inverter motor, the inverter is delivered together as an accessory.■ Stepper type
| Type | W Selection | L Specified unit 5 mm | E Light source position | F Light source length | Motor selection | Belt specification (Material is generally PU) | Motor | Light color | ||
| Torque/Power (W) | Specification/Drive method | Gear head reduction ratio | ||||||||
| E-CVBTN86 (Arc surface roller type) | 50 | 540 to 3000 | 80 to 2500 | 50 100 | 4.5 8.0 (86 stepper type / torque N⋅m) | MC (pulse universal type) IO (IO control type) EC (EtherCAT bus) RS (RS485 communication) | 3 5 10 NH(no gear head) Caution: 3 to 10 are single pole | K9(Translucent belt · White) J(No belt) | LS (Leisai motor) | H(White) R(Red) G(Green) U(Blue) W(Infrared) Z(Ultraviolet) |
| 100 | 100 150 | |||||||||
| 150 | 200 250 | |||||||||
| 200 | 200 250 | |||||||||
| 250 | 250 300 | |||||||||
| 300 | 300 400 | NM (without motor and driver) | R (without motor, driver, and gear head) | |||||||
When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)When using an 86 stepper with a torque of 8.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltages. (Power supply not included)■ Servo type
| Type | W Selection | L Specified unit 5 mm | E Light source position | F Light source length | Motor selection | Belt specification (Material is generally PU) | Motor | Light color | ||
| Torque/Power (W) | Specification/Drive method | Gear head reduction ratio | ||||||||
| E-CVBTN4 E-CVBTN75 (Arc surface roller type) | 50 | 540 to 3000 | 80 to 2500 | 50 100 | 400 750 (servo type power W) | MC(pulse universal type) EC(EtherCAT bus) | 3 5 10 NH(no gear head) Caution: 3 to 10 are single pole | K9(Translucent belt · White) J(No belt) | LS (Leisai motor) | H(White) R(Red) G(Green) U(Blue) W(Infrared) Z(Ultraviolet) |
| 100 | 100 150 | |||||||||
| 150 | 200 250 | |||||||||
| 200 | 200 250 | |||||||||
| 250 | 250 300 | |||||||||
| 300 | 300 400 | NM (without motor and driver) | R (without motor, driver, and gear head) | |||||||
When selecting a servo motor, the motor and driver are supplied with a default power supply voltage of single-phase 220 V. In conveyor applications, the motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During operation, control can be customized through host computer programming.The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.For backlit type, belt width B = illuminated width W + 40. For detailed specification, please refer to the specification overview.Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1
Belt width: B=340 mm, thickness 0.9 mm Roller center distance: L=3000 mm
■ Transmission capacity
Test motor: JSCC (J) timing pulley transmission ratio 1:1Belt width: B=340 mm, thickness 0.9 mm Roller center distance: L=3000 mm
■ Deceleration head reduction ratio-speed correspondence table
INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).| Gear head reduction ratio | Flat belt speed (m/min) | |
| SCM speed regulation type | INV inverter type | |
| 5 | 25.4 to 42.4 | 52.8 |
| 7.5 | 17.0 to 28.3 | 35.2 |
| 10 | 12.7 to 21.2 | 26.4 |
| 12.5 | 10.2 to 17.0 | 21.1 |
| 15 | 8.5 to 14.1 | 17.6 |
| 18 | 7.1 to 11.8 | 14.7 |
| 25 | 5.1 to 8.5 | 10.6 |
| 30 | 4.2 to 7.1 | 8.8 |
| 36 | 3.5 to 5.9 | 7.3 |
| 50 | 2.5 to 4.2 | 5.3 |
| 60 | 2.1 to 3.5 | 4.4 |
| 75 | 1.7 to 2.8 | 3.5 |
| 90 | 1.4 to 2.4 | 2.9 |
| 100 | 1.3 to 2.1 | 2.6 |
| 120 | 1.1 to 1.8 | 2.2 |
| 150 | 0.8 to 1.4 | 1.8 |
| 180 | 0.7 to 1.2 | 1.5 |
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 48 V DC (current 6 A) | ||
| 86CM45 | 86CM80 | 86CM120 | |||
| Load (kg) | |||||
| 100 | NH | 15.7 | 4 | 8 | 9.5 |
| 200 | 31.4 | 2.5 | 6 | 7.5 | |
| 200 | 3 | 10.5 | 10 | 10 | 10 |
| 5 | 6.3 | 10 | 10 | 10 | |
| 10 | 3.1 | 10 | 10 | 10 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Belt width: B = 190 mm, thickness 0.9 mm Roller center distance: L = 1000 mm
Table 3: Corresponding table of load and linear speed (servo motor)
| Speed (rpm) | Gear head reduction ratio | Recommended Max. linear speed (m/min) | Voltage 220 V AC | |
| 400W | 750W | |||
| Load (kg) | Load (kg) | |||
| 3000 | NH | 120 | 1 | 5.5 |
| 3 | 120 | 10 | 10 | |
| 5 | 94.2 | 10 | 10 | |
| 10 | 47.1 | 10 | 10 | |
Test motor: Leadshine (LS) timing pulley transmission ratio 1:1Belt width: B = 190 mm, thickness 0.9 mm Roller center distance: L = 1000 mm
The transport capacity will vary depending on the operating condition.The chart shows the transport capacity under horizontal conditions.When selecting a speed regulation motor, the transport capacity does not increase as the speed decreases.When selecting a speed regulation motor, the transport capacity will vary depending on the motor brand.Alteration
 | Type | - | W | - | L | - | E | - | F | - | Motor selection | - | Belt specification | - | Motor manufacturer selection | - | Light color | - | Alteration | ||||
| Output power | - | Specification | - | Gear head reduction ratio | |||||||||||||||||||
| E-CVBTN | - | 100 | - | 1000 | - | 90 | - | 100 | - | 25 | - | SCM | - | 25 | - | K9 | - | G | - | H | - | MP240 | |
| Alterations | Code | Spec | ||||||
Driving part position specification | MP | The mounting position of the driving part can be changed. Ordering code MP350 180 ≤ MP ≤ L-400 *The minimum value of L is 580 Only the center drive type can be specified. | ||||||
Mounting bracket for speed controller  | SCB | Comes with a mounting bracket for the speed controller. Ordering code SCB | ||||||

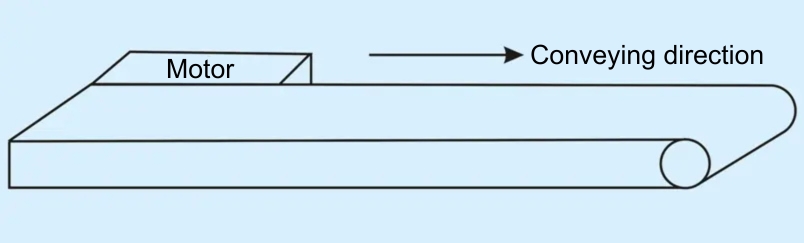

Conveyor belt reverse conveyance  Reverse conveyance is not suitable when the B value is less than 100 or the L value is greater than 1500. | FX | Reverse conveyance. Ordering code FX | ||||||
Increase the number of nuts in the profile groove.  Select only when the standard quantity is insufficient (for standard quantity, see dimensional drawing information). | ANQ | Increase the quantity of nuts in the profile groove. Ordering code ANQ5
|
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| E-CVBTN4-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-400-[EC,MC]-[3,5,10]-J-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN4-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-400-[EC,MC]-[3,5,10]-K9-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN4-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-400-[EC,MC]-NH-J-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN4-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-400-[EC,MC]-NH-K9-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN4-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-400-NM-NH-J-R-[G,H,R,U,W,Z] |
| E-CVBTN4-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-400-NM-NH-K9-R-[G,H,R,U,W,Z] |
| E-CVBTN75-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-750-[EC,MC]-[3,5,10]-J-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN75-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-750-[EC,MC]-[3,5,10]-K9-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN75-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-750-[EC,MC]-NH-J-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN75-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-750-[EC,MC]-NH-K9-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN75-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-750-NM-NH-J-R-[G,H,R,U,W,Z] |
| E-CVBTN75-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-750-NM-NH-K9-R-[G,H,R,U,W,Z] |
| E-CVBTN86-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[4.5,8]-[EC,IO,MC,RS]-[3,5,10]-J-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN86-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[4.5,8]-[EC,IO,MC,RS]-[3,5,10]-K9-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN86-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[4.5,8]-[EC,IO,MC,RS]-NH-J-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN86-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[4.5,8]-[EC,IO,MC,RS]-NH-K9-[LS,R]-[G,H,R,U,W,Z] |
| E-CVBTN86-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[4.5,8]-NM-NH-J-R-[G,H,R,U,W,Z] |
| E-CVBTN86-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[4.5,8]-NM-NH-K9-R-[G,H,R,U,W,Z] |
| E-CVBTN-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[25,40,60,90]-[INV,NM,SCM]-NH-J-[G,J,R]-[G,H,R,U,W,Z] |
| E-CVBTN-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[25,40,60,90]-[INV,NM,SCM]-NH-K9-[G,J,R]-[G,H,R,U,W,Z] |
| E-CVBTN-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[25,40,60,90]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-J-[G,J,R]-[G,H,R,U,W,Z] |
| E-CVBTN-[50,100,150,200,250,300]-[540-3000/5]-[80-2500/1]-[50,100,150,200,250,300,400]-[25,40,60,90]-[INV,SCM]-[5,7.5,10,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180]-K9-[G,J,R]-[G,H,R,U,W,Z] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conveyance Length | Belt Width/Belt Pitch B (mm) | Light Source Position (mm) | Light Source Length (mm) | Output Power (W) | Specifications | Gear Head Reduction Ratio | Belt Specifications | Motor | Light Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | 5 ～ 10 | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | NH (Gearless Head) | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | NM (No Motor) | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | NM (No Motor) | NH (Gearless Head) | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | 5 ～ 10 | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | NH (Gearless Head) | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | NM (No Motor) | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | NM (No Motor) | NH (Gearless Head) | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | 5 ～ 10 | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | 5 ～ 10 | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | - | NH (Gearless Head) | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | NM (No Motor) | NH (Gearless Head) | No belt | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 17 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | - | NM (No Motor) | NH (Gearless Head) | Light Transmission Band · White | R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 20 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | 25 ～ 90 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 20 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | 25 ～ 90 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) / NM (No Motor) | NH (Gearless Head) | Light Transmission Band · White | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 20 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | 25 ～ 90 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | No belt | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White | ||
- | 1 Piece(s) | 20 Day(s) or more | 540 ～ 3000 | 50 ～ 300 | 80 ～ 2500 | 50 ～ 400 | 25 ～ 90 | INV (Three-phase 220 V Inverter Type) / SCM (Single-phase 220 V Speed Control Type) | 5 ～ 180 | Light Transmission Band · White | G (GPG Motor) / J (JSCC Motor) / R (No Motor · Gear Head) | Blue / Green / Infrared / Red / Ultraviolet / White |
Loading...
Application Industry
| Equipment Production | Semiconductor | Lithium Battery | ||
 |  |  | ||
| Food | Electronic & Electrical | Robot | ||
 |  |  |
Precaution
(1) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model.
For the deviation adjustment method, refef to the manual.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.
(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model.
For the deviation adjustment method, refef to the manual.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.
(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
Related Documents Click here
here Related product
| Economy conveyor flat belt head drive Pulley diameter 50 mm backlight type | Economy conveyor flat belt head drive Pulley diameter 30 mm with cross ribs | Economy conveyor flat belt head drive Pulley diameter 80 mm high output type | ||
 |  |  | ||
| Representative model: E-CVBTA | Representative model: E-CVDSA | Representative model: E-CVSG |
Basic Information
| Drive Module Position | Center Drive | Belt Type | Flat Belt | Meandering Prevention | Pulley crowned for meandering prevention |
|---|---|---|---|---|---|
| Motor Voltage | 220 V | Max. Mass of Conveyed Material(kg) | 10 | Tail Roller Dia. D (Tail Transfer Part R)(mm) | 50 |
| Drive Roller Dia.(mm) | 50 | Type | Arc surface roller deviation prevention | Maximum conveying speed of this series(m/min) | 120 |
Specification/Dimensions
-
Conveyance Length
-
Belt Width/Belt Pitch B(mm)
-
Light Source Position(mm)
-
Light Source Length(mm)
-
Output Power (W)
-
Specifications
- INV (Three-phase 220 V Inverter Type)
- SCM (Single-phase 220 V Speed Control Type)
- NM (No Motor)
-
Gear Head Reduction Ratio
-
Belt Specifications
-
Motor
- G (GPG Motor)
- J (JSCC Motor)
- R (No Motor · Gear Head)
-
Light Color
- Blue
- Green
- Infrared
- Red
- Ultraviolet
- White
-
type
- E-CVBTN
- E-CVBTN4
- E-CVBTN75
- E-CVBTN86
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 17 Day(s) or Less
- 20 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: Can the conveyor's operating direction be set to reverse?
- Answer: The current conveyor does not support reverse operation. If reverse operation is required, please contact customer service for customization.
- Question: Conveyor belt deviation is a product characteristic. How can the frequency of deviation be reduced?
- Answer: The main methods to prevent conveyor belt deviation are arc-shaped rollers and belts with guide strips. Curved rollers are suitable for lengths up to 2000 mm; belts with guide strips are suitable for long distances over 2000 mm.
- Question: If the existing standard models cannot meet your requirements and you need to modify the model but are concerned about debugging issues, do you have any good suggestions?
- Answer: For this situation, please contact customer service for customization to meet your individual needs.
- Question: If I need a stepper motor or a servo motor, can you provide them?
- Answer: You can select a conveyor model without a motor or speed controller and purchase a motor separately for assembly.
Additional Products in this Category
- Flat Belt Conveyor Full Belt Type - With Meandering Prevention Crosspiece, Head Drive, 2-Groove Frame (Pulley Dia. 30mm)
- Stainless Steel Belt Conveyor - Head Drive, 3-Groove Frame (Pulley Dia. 50mm)
- Flat Belt Conveyors - Head Drive, 3-Groove Frame (Pulley Dia. 50mm)
- Timing Belt Conveyors - Dual Track, Head Drive, 3-Groove Frame
- Flat Belt Conveyor, Head Drive, Full Profile
- Belt Conveyor Mini Extension Type Belt Conveyor
- Belgotch MODEL34 Dacow-Less Model
- Belcon Mini III Belt width = Frame Width Type for Transferring Small Items Between Conveyors DMJW
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
