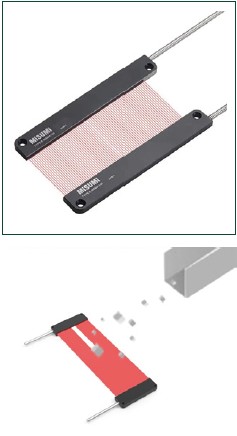

Fiber Sensor, Wide Area, Through Beam Type

Click this image to zoom it.

Move the mouse over the image to zoom

Volume Discount

MISUMI

MiSUMi Economy

MISUMI

This is an economy item, The price is cheaper than the MISUMI standard product.

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers

Product feature

Optical fiber type structure: Since there are no electrical components in the detection section (optical fiber), it offers excellent environment resistance, including resistance to interference.

Product overview

The optical fiber is composed of a core in the center and an outer metal part with a lower refractive index.

Product overview

Specification overview

Used for workpiece transfer	The indicated detection distance value applies when using the fiber optic amplifier E-MSMFA11/41.
	Model	Specification	Detection width (mm)	Shape (mm)	Detection distance (mm)	Bending radius (mm)	Connection cable length
	E-MSMA30	Through-beam type	30			R25	1.5 m
	E-MSMA50		50
	E-MSMA100		100
	E-MSMFUA05		6				2 m
	E-MSMFUA10		10.5				1.5 m
	E-MSMFU12		11
	E-MSMFS11		7
	E-MSME11		11			R15	2 m
	E-MSME40		40			R15	2 m
	E-MSMFUA05D	Reflection type	10.5			R25	1.5 m
	E-MSMFU17		50
	E-MSMFU11		12.5

Dimensional drawing

■ Through-beam type
Detection width: 30 mm E-MSMA30	Detection width: 50 mm E-MSMA50
Note: The shapes of the light-emitting side and the light-receiving side are identical. Note: To protect the spiral tube, cutting this product is strictly prohibited.	Note: The shapes of the light-emitting side and the light-receiving side are identical. Note: To protect the spiral tube, cutting this product is strictly prohibited.
Detection width: 100 mm E-MSMA100	Detection width: 11 mm E-MSME11
Note: The shapes of the light-emitting side and the light-receiving side are identical. Note: To protect the spiral tube, cutting this product is strictly prohibited.	Note: The shapes of the light-emitting side and the light-receiving side are identical.
Detection width: 40 mm E-MSME40	E-MSMFUA05
Note: The shapes of the light-emitting side and the light-receiving side are identical.	Note: The shapes of the light-emitting side and the light-receiving side are identical.
E-MSMFU12	E-MSMFUA10
Note: The shapes of the light-emitting side and the light-receiving side are identical.	Note: The shapes of the light-emitting side and the light-receiving side are identical.
E-MSMFS11
Note: The shapes of the light-emitting side and the light-receiving side are identical.
■ Reflection type
E-MSMFU11	E-MSMFU17

E-MSMFUA05D

Material		Operating temperature
Wire material	Body material	Operating temperature
Polymethyl methacrylate + fluoropolymer	ABS + PMMA9	-40 to 70℃

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
E-MSMA30
E-MSMA50
E-MSMA100
E-MSME11
E-MSME40
E-MSMFS11
E-MSMFU11
E-MSMFU12
E-MSMFU17
E-MSMFUA05
E-MSMFUA05D
E-MSMFUA10

Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship	Detection Method	Fiber minimum bend R (mm)	Mounting Thread	Detection Width (mm)	Shaft Diameter (mm)	Fiber Optic Amplifier E-MSMFA11/41 Detection Distance (High-Speed Mode) (mm)	Fiber Optic Amplifier E-MSMFA11/41 Detection Distance (Standard Mode) (mm)	Fiber Optic Amplifier E-MSMFA11/41 Detection Distance (Long Distance Mode) (mm)	Detection Width (mm)	External dimensions (mm)	Lead Wire Length (mm)
MYR 243.36	1 Piece(s)	Available	1 Day(s) or more	Through-beam Type	R25	2-M3XP0.5	-	32-Φ0.25	400	700	1500	30	39X19X6	1500
MYR 243.36	1 Piece(s)	Available	1 Day(s) or more	Through-beam Type	R25	2-M3XP0.5	-	32-Φ0.25	500	900	1500	50	59X19X6	1500
MYR 354.93	1 Piece(s)	Available	6 Day(s) or more	Through-beam Type	R25	2-Φ4.0,2-Φ6.5	-	32-Φ0.25	400	700	1500	100	120X16X5	1500
MYR 182.54	1 Piece(s)	Available	6 Day(s) or more	Through-beam Type	R15	2-2.2X3.6,3.6X5	2X11	-	700	1200	1600	2X11	29.8X10.5X4.3	2000
MYR 324.49	1 Piece(s)	Available	6 Day(s) or more	Through-beam Type	R15	2-3.2X6,6X9	3X40	-	900	1400	2000	3X40	29.8X10.5X4.3	2000
MYR 201.71	1 Piece(s)	Available	5 Day(s) or more	Through-beam Type	R25	3-M3XP0.5	-	32X2-Φ0.25	350	700	1500	-	-	1500
MYR 161.38	1 Piece(s)	Available	5 Day(s) or more	Retroreflective Type	R25	2-Φ3.0	-	16-Φ0.25	90	140	200	-	-	1500
MYR 215.16	1 Piece(s)	Available	5 Day(s) or more	Through-beam Type	R25	2-Φ3.2	-	16-Φ0.25	450	900	1500	-	-	1500
MYR 161.38	1 Piece(s)	Available	5 Day(s) or more	Retroreflective Type	R25	2-M3XP0.5	-	32-Φ0.25	90	150	230	-	-	1500
MYR 174.82	1 Piece(s)	Available	5 Day(s) or more	Through-beam Type	R25	2-Φ3.2	-	16-Φ0.25	300	400	1000	-	-	1500
MYR 134.50	1 Piece(s)	Available	5 Day(s) or more	Retroreflective Type	R25	2-Φ3.2	10.5	-	80	100	200	-	-	1500
MYR 174.82	1 Piece(s)	Available	5 Day(s) or more	Through-beam Type	R25	2-Φ3.2	-	16-Φ0.25	240	400	740	-	-	1500

Configure

12 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Detection Method
- Through-beam Type
- Retroreflective Type
Clear
Fiber minimum bend R(mm)
R15

R25
Clear
Mounting Thread
- 2-3.2X6,6X9
- 2-2.2X3.6,3.6X5
- 2-Φ3.0
- 2-M3XP0.5
- 2-Φ3.2
- 2-Φ4.0,2-Φ6.5
- 3-M3XP0.5
Clear
Detection Width(mm)
- 2X11
- 3X40
- 10.5
Clear
Shaft Diameter(mm)
- 16-Φ0.25
- 32-Φ0.25
- 32X2-Φ0.25
Clear
Fiber Optic Amplifier E-MSMFA11/41 Detection Distance (High-Speed Mode)(mm)
80

90

240

300

350

400

450

500

700

900
Clear
Fiber Optic Amplifier E-MSMFA11/41 Detection Distance (Standard Mode)(mm)
100

140

150

400

700

900

1200

1400
Clear
Fiber Optic Amplifier E-MSMFA11/41 Detection Distance (Long Distance Mode)(mm)
200

230

740

1000

1500

1600

2000
Clear
Detection Width(mm)
- 2X11
- 3X40
- 30
- 50
- 100
Clear
External dimensions(mm)
- 29.8X10.5X4.3
- 39X19X6
- 59X19X6
- 120X16X5
Clear
Lead Wire Length(mm)
- 1500
- 2000
Clear
type
- E-MSM
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

1 Day(s) or Less

5 Day(s) or Less

6 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
