Ball roller (press-fit type with plunger function)
- Volume Discount
Part Number
Configured Part Number is shown.
Product overview
Ball transfer rollers can be used as components for transmission and changing the direction of conveyed objects. They are used in transmission devices on conveyor belts in automated production lines and are a very important accessory for automation assembly lines.
Product feature
Feature 1: Small volume, suitable for places with compact mounting positions
Feature 2: Simple structure, achieving low price.
Feature 3: Flexible rotation, can freely change the conveying direction
Feature 4: Replacement is also very convenient
Feature 2: Simple structure, achieving low price.
Feature 3: Flexible rotation, can freely change the conveying direction
Feature 4: Replacement is also very convenient

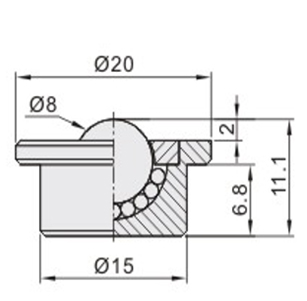

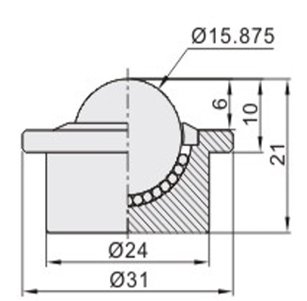

Dimensional drawing
Standard type
E-BCHAZ15
E-BCHAZ15
Heavy load type
E-BCHA8
E-BCHA8
Heavy load type
E-BCHA15
E-BCHA15
| Model | Type |  Body material | Ball material |  Surface treatment | |
| Equivalent | Equivalent | ||||
| E-BCHAZ | Press fit | Standard type | SPCC | Carbon steel | Zinc plating |
| E-BCHA | Heavy type | S45C | SUJ2 | Nickel plating | |
Specification overview
| Type | Allowable load (kg) | Body weight (g) | |
| Type | No. | ||
| E-BCHAZ | 15 | 8-11 | 35 |
| E-BCHA | 8 | 15 | 15 |
| 15 | 50 | 60 | |
| Part Number |
|---|
| E-BCHA8 |
| E-BCHA15 |
| E-BCHAZ15 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Load Capacity (N) | Body Material | Main Ball Material | Surface treatment |
|---|---|---|---|---|---|---|---|---|
MYR 28.01 | 1 Piece(s) | Available | 6 Day(s) or more | 147 | [Steel] S45C | [Steel] SUJ2 | Nickel plating | |
MYR 28.01 | 1 Piece(s) | Available | 6 Day(s) or more | 490 | [Steel] S45C | [Steel] SUJ2 | Nickel plating | |
MYR 26.02 | 1 Piece(s) | Available | 6 Day(s) or more | 107.8 | [Steel] SPCC | [Steel] Carbon steel | Zinc plating |
Loading...

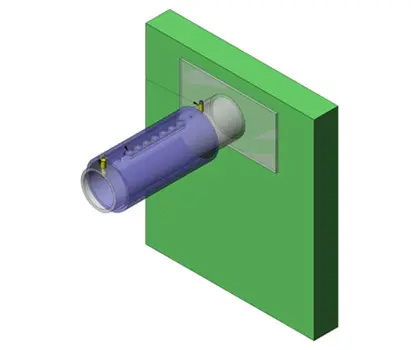

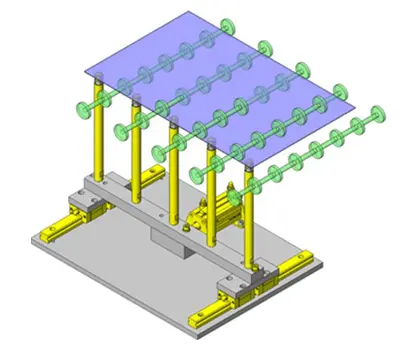

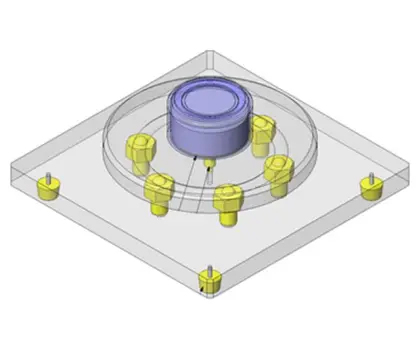

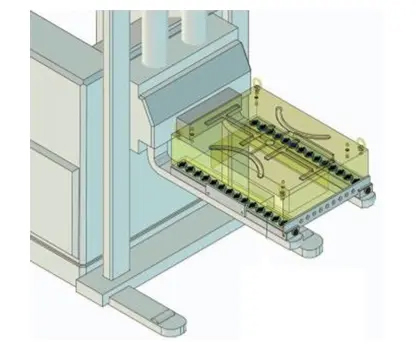

Application Industry
Basic Information
| Shape | Cylindrical | Type | Standard | Load Capacity Range(N) | 100.1~500.0 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
