Proximity sensor with built-in amplifier, heat-resistant type

Proximity sensor with built-in amplifier, heat-resistant type

Click this image to zoom it.

Move the mouse over the image to zoom

  • Volume Discount

MISUMI

MISUMI

Proximity Sensors
Proximity sensors are one of the automation machine equipments. They offer a wide variety of sizes to choose from.
[Feature]
● Shape : Screw type
● Thread Size: M8, M12 and M18
● Detection Distance (mm.) : 2, 3 and 5
● Electrical output : NPN N.O
● Operating Temperature (°C) :
PSHM8 - 0 to 140
PSHM12 - 0 to 150
PSHM18 - 0 to 180
● Material : Housing - Stainless steel SUS303
[Application]
It is an important component in the automation system ,its primary function is to detect objects without requiring any physical contact.

(i)Caution

  • Please check the content on our website as the PDF does not contain the most up-to-date information.

PDFP.1-2065-2014

Part Number

Configured Part Number is shown.

[ A ] Accessory: Hex Nut 2 pcs.
M8 Thickness 4 Hex Socket 13
M12 Thickness 4 Hex Socket 17
M18 Thickness 4 Hex Socket 24

Specification Table

Part Number
PSHM12
Part NumberOperating Ambient Temperature Range
PSHM80°C ~ +140°C
PSHM120°C ~ +150°C
PSHM180°C ~ +180°C

Part NumberDetection Distance
(mm)		M × P
(Fine)		L1L2L3dOutput
TypeM
PSHM828 × 1.05560—5NPN N.O.
12312 × 1.04956595
18518 × 1.06070763

Specifications/Overview

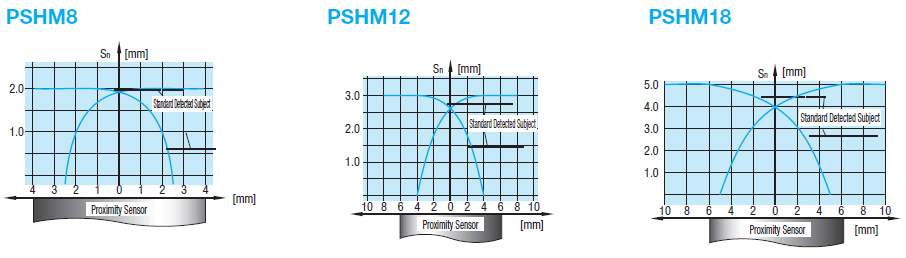

■Detection Range Characteristics


■Connection Diagram (Common)


■ Specifications
TypeHeat Resistant
Part NumberPSHM8PSHM12PSHM18
SizeM8M12M18
Detection Distance2 mm3 mm5 mm
Output Format / Operation ModeNPN / N.O.(Normally Open)
Power SupplyDC (3-Wire)
Cable⌀5
Silicon 2 m		⌀3
Teflon 2m
Structure of Detecting Head
(How to Use)		Shield Type
(Embedded use allowable)
Detected ObjectAll Metal
Compensation factor when iron (FE360) is 1 (as Ref. value)
Aluminum: 0.25 (0.2 for M12, 0 for M8) Copper: 0.2 (0.15 for M12, 0 for M8) 
Brass: 0.35 (0.15 for M12, 0.25 for M8) Stainless Steel: 0.7 (0.65 for M12, 0.6 for M8)
Hysteresis3 ~ 15% of effective detection distance Sr2 ~ 20% of effective detection distance Sr
Supply Voltage Range10 ~ 30 V DC
Output Current120 mA (≤ 100°C)120 mA (≤ 100°C)150 mA
80 mA (> 100°C)70 mA (> 100°C)
Supply Current at No Load10mA Max.
Max. Frequency Response600 Hz500 Hz400 Hz
Operating Ambient Temperature Range0 ~ +140°C0 ~ +150°C0 ~ +180°C
LED Operation Indicator Lamp—
Protection StructureIP67
Built-In Protection CircuitShort Circuit Protection, Over Current Protection
Reverse Polarity Protection, Induction Protection
EMC Protection, Power-ON Reset
Case MaterialSUS303
Tightening Torque (N⋅m)41020
Features1. Eliminates provision of an amplifier unit separately, making the total cost less.
2. Highly water resistant and drip resistant (IP67), and is suitable in high temperature environments and coolant splashes.
3. Robust stainless steel case.

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
Part Number
PSHM8
PSHM12
PSHM18
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipRoHSDetecting Head Size/Dimension (M) Detection Head Size, Dimension L2 (Range)
(mm) 		Detection Head Size Dimension
(mm)

MYR 1,284.39

1 Piece(s)Available 4 Day(s) or more 10M850.1~6055

MYR 1,603.42

1 Piece(s)Available 4 Day(s) or more 10M1240.1~5049

MYR 2,125.97

1 Piece(s)Available 4 Day(s) or more 10M1850.1~6060

Loading...

  1. 1


Basic Information

Shape Screw Shield Shield Operating Environment Heat Resistant Type / Water-proof, Drip-proof
Amplifier Built-in Type Protection Structure (IEC) IP67 Detected Object Magnetic Metal
Case Material SUS303 Sensor Detection Surface Material Stainless Steel
