Cantilever Shafts - For Tension - Screw Mount

MISUMI

"For order of 300 or less pieces, this product becomes available without having to request quotation."

(i)Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers
Catalog

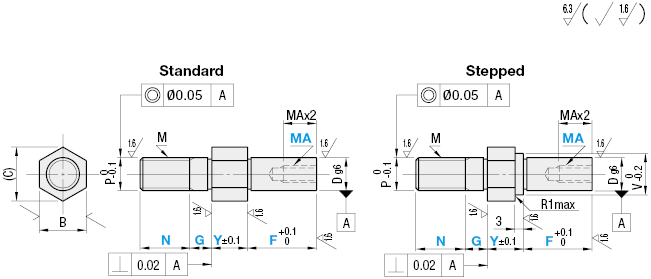

Hex Cantilever Shafts - For Tension:Related Image

[ ! ] Please refer to Table 1 to specify dimensions Y and F.

Standard		Stepped		[M] Material	[S] Surface treatment
Thread Length Fixed	Thread Length Configurable	Thread Length Fixed	Thread Length Configurable	[M] Material	[S] Surface treatment
FXKB	FXNKB	FXLB	FXNLB	S45C Equivalent	Black Oxide
PFXKB	PFXNKB	PFXLB	PFXNLB	S45C Equivalent	Electroless Nickel Plating
SFXKB	SFXNKB	SFXLB	SFXNLB	SUS304	—

Specifications

Part Number	-	Y	-	F	-	G	-	N	-	MA
FXKA20A FXNKB12	- -	20 15	- -	F12 F21	- -	G8 G5	-	N14	- -	MA10 MA6

D Tolerance (g6)
6	-0.004 -0.012
8 / 10	-0.005 -0.014
12~18	-0.006 -0.017
20~30	-0.007 -0.020

Part Number			D	1mm Increment			N		MA (Coarse) Selection									P	M (Coarse)	V (Stepped Only)	B	(C)
Type		No.		Y	F	G	Thread Length Fixed	Thread Length Configurable
Standard Fixed FXKB PFXKB SFXKB Stepped Fixed FXLB PFXLB SFXLB	Configurable FXNKB PFXNKB SFXNKB Configurable FXNLB PFXNLB SFXNLB	6	6	5~60	5~100	5~10	9	6~12	3									6	M 6	8	10	11.5
		8	8				12	8~16		4								8	M 8	10	12	13.9
		10	10				15	10~20		4	5	6						10	M10	13	14	16.2
		12	12		10~120	5~15	18	12~24			5	6	8					12	M12	15	17	19.6
		13	13																	16
		15	15									6	8	10						18	19	21.9
		16	16																	19
		17	17	5~75		5~20														20	22	27.5
		18	18																	21	24	27.7
		20	20				30	20~40				6	8	10	12			20	M20	24	27	31.2
		20A																16	M16
		22	22															20	M20	26	27	31.2
		22A																16	M16
		25	25										8	10	12	16		20	M20	29	30	34.6
		25A																16	M16
		30	30										8	10	12	16	20	20	M20	34	36	41.6
		30A																16	M16

Table 1

MA	Y+F
M 3	Y+F≥11.5
M 4	Y+F≥14.0
M 5	Y+F≥16.2
M 6	Y+F≥18.5
M 8	Y+F≥23.5
M10	Y+F≥28.5
M12	Y+F≥35.5
M16	Y+F≥45.0
M20	Y+F≥55.0

Alterations

Part Number	—	Y	—	F	—	G	—	N	—	MA	—	(YKC·SC·MTC·SET)
FXLB12	—	27	—	F15	—	G7	—			MA6	—	MTC

Alterations

Retaining Ring Set

Y Dimension Tolerance

Wrench Flats

Tapped Hole

Hex Cantilever Shaft - For Tension Idler, Screw Mount Alteration 1

Hex Cantilever Shaft - For Tension Idler, Screw Mount Alteration 2

Hex Cantilever Shaft - For Tension Idler, Screw Mount Alteration 3

Code

SET

YKC

MTC

Spec.

Retaining Ring applicable to each shaft diameter is included.
Ordering Code SET
Applicable to Retaining Ring Type.
Retaining Ring Shape
No.=6 ~ 8: E Type Retaining Ring
No.=10 ~ 30A: C Type Retaining Ring
Retaining Ring Material

Cantilever Shafts		Retaining Ring
Material	Surface Treatment	Material
S45C	Black Oxide	Spring Steel
S45C	Electroless Nickel Plating	SUS304-CSP
SUS304	—	SUS304-CSP

Changes Y dimension tolerance to ±0.05.
[!] Applicable to all types.
Ordering Code YKC

An alteration of wrench flats can be made for a slot hole guide.

[!] Applicable to all types.
Ordering Code SC

[!] P (wrench flats) tolerance is
+0.2/0.

[!] Limitations on Y dimension:
Standard Y ≥ 8
Stepped Y ≥ 11

An alteration of a tapped hole made for shaft push/pull. Allows combined use of AJSTor AJKC .
(Configurable dimension Y is limited.
Refer to the table below.)
Ordering Code MTC

D	X	M₁	Ymin.
D	X	M₁	Standard	Stepped
6	10	M 4	15	18
8		M 5	15	18
10		M 6	16	19
12 to 18		M 8	18	21
20 to 25 A	15	M10	25	28
30·30 A	15	M12	27	30

Hex Cantilever Shaft - For Tension Idler, Screw Mount Alteration 4

[!] When combined with SC, add
3 mm to dimension Y.

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

1
2
3
4
Next >>

Part Number
FXKB6-[5-60/1]-F[5-100/1]-G[5-10/1]-MA3
FXKB8-[5-60/1]-F[5-100/1]-G[5-10/1]-MA4
FXKB10-[5-60/1]-F[5-100/1]-G[5-10/1]-MA[4,5,6]
FXKB12-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[5,6,8]
FXKB13-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[5,6,8]
FXKB15-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[6,8,10]
FXKB16-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[6,8,10]
FXKB17-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXKB18-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10]
FXKB20-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXKB20A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXKB22-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXKB22A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXKB25-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16]
FXKB25A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16]
FXKB30-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16,20]
FXKB30A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16,20]
FXLB6-[5-60/1]-F[5-100/1]-G[5-10/1]-MA3
FXLB8-[5-60/1]-F[5-100/1]-G[5-10/1]-MA4
FXLB10-[5-60/1]-F[5-100/1]-G[5-10/1]-MA[4,5,6]
FXLB12-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[5,6,8]
FXLB13-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[5,6,8]
FXLB15-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[6,8,10]
FXLB16-[5-60/1]-F[10-150/1]-G[5-15/1]-MA[6,8,10]
FXLB17-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXLB18-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10]
FXLB20-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXLB20A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXLB22-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXLB22A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[6,8,10,12]
FXLB25-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16]
FXLB25A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16]
FXLB30-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16,20]
FXLB30A-[5-75/1]-F[10-150/1]-G[5-20/1]-MA[8,10,12,16,20]
FXNKB6-[5-60/1]-F[5-100/1]-G[5-10/1]-N[6-12/1]-MA3
FXNKB8-[5-60/1]-F[5-100/1]-G[5-10/1]-N[8-16/1]-MA4
FXNKB10-[5-60/1]-F[5-100/1]-G[5-10/1]-N[10-20/1]-MA[4,5,6]
FXNKB12-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[5,6,8]
FXNKB13-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[5,6,8]
FXNKB15-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[6,8,10]
FXNKB16-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[6,8,10]
FXNKB17-[5-75/1]-F[10-150/1]-G[5-20/1]-N[12-24/1]-MA[6,8,10]
FXNKB18-[5-75/1]-F[10-150/1]-G[5-20/1]-N[12-24/1]-MA[6,8,10]
FXNKB20-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[6,8,10,12]
FXNKB20A-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[6,8,10,12]
FXNKB22-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[6,8,10,12]
FXNKB22A-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[6,8,10,12]
FXNKB25-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[8,10,12,16]
FXNKB25A-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[8,10,12,16]
FXNKB30-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[8,10,12,16,20]
FXNKB30A-[5-75/1]-F[10-150/1]-G[5-20/1]-N[20-40/1]-MA[8,10,12,16,20]
FXNLB6-[5-60/1]-F[5-100/1]-G[5-10/1]-N[6-12/1]-MA3
FXNLB8-[5-60/1]-F[5-100/1]-G[5-10/1]-N[8-16/1]-MA4
FXNLB10-[5-60/1]-F[5-100/1]-G[5-10/1]-N[10-20/1]-MA[4,5,6]
FXNLB12-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[5,6,8]
FXNLB13-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[5,6,8]
FXNLB15-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[6,8,10]
FXNLB16-[5-60/1]-F[10-150/1]-G[5-15/1]-N[12-24/1]-MA[6,8,10]
FXNLB17-[5-75/1]-F[10-150/1]-G[5-20/1]-N[12-24/1]-MA[6,8,10]
FXNLB18-[5-75/1]-F[10-150/1]-G[5-20/1]-N[12-24/1]-MA[6,8,10]

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Retainer Shape	Shaft Diameter (mm) (mm)	Material	Surface Treatment	Material	Thread Length Specifying Method	M (Coarse)	Pin Shape	Thread Length N (mm)	Flange Size	F (mm)	G (mm)	Thread Dia. Selection [MA]	Thread Length [N] (mm)	Y (mm)
-	1 Piece(s)	7 Day(s) or more	10	Hex	6	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	6	Standard Type	9	Standard	5 ～ 100	5 ～ 10	3	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	8	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	8	Standard Type	12	Standard	5 ～ 100	5 ～ 10	4	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	10	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	10	Standard Type	15	Standard	5 ～ 100	5 ～ 10	4 ～ 6	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	12	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Standard Type	18	Standard	10 ～ 150	5 ～ 15	5 ～ 8	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	13	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Standard Type	18	Standard	10 ～ 150	5 ～ 15	5 ～ 8	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	15	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Standard Type	18	Standard	10 ～ 150	5 ～ 15	6 ～ 10	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	16	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Standard Type	18	Standard	10 ～ 150	5 ～ 15	6 ～ 10	-	5 ～ 60
-	1 Piece(s)	5 Day(s) or more	10	Hex	17	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Standard Type	18	Standard	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	18	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Standard Type	18	Standard	10 ～ 150	5 ～ 20	6 ～ 10	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	20	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Standard Type	30	Standard	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	20	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Standard Type	24	Wide	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	22	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Standard Type	30	Standard	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	22	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Standard Type	24	Wide	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	25	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Standard Type	30	Standard	10 ～ 150	5 ～ 20	8 ～ 16	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	25	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Standard Type	24	Wide	10 ～ 150	5 ～ 20	8 ～ 16	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	30	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Standard Type	30	Standard	10 ～ 150	5 ～ 20	8 ～ 20	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	30	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Standard Type	24	Wide	10 ～ 150	5 ～ 20	8 ～ 20	-	5 ～ 75
-	1 Piece(s)	7 Day(s) or more	10	For Tension	6	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	6	Stepped Type	9	Standard	5 ～ 100	5 ～ 10	3	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	8	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	8	Stepped Type	12	Standard	5 ～ 100	5 ～ 10	4	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	10	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	10	Stepped Type	15	Standard	5 ～ 100	5 ～ 10	4 ～ 6	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	12	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	5 ～ 8	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	13	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	5 ～ 8	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	15	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	6 ～ 10	-	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	16	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	6 ～ 10	-	5 ～ 60
-	1 Piece(s)	5 Day(s) or more	10	For Tension	17	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	18	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 20	6 ～ 10	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	20	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Stepped Type	30	Standard	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	20	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Stepped Type	24	Wide	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	22	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Stepped Type	30	Standard	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	22	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Stepped Type	24	Wide	10 ～ 150	5 ～ 20	6 ～ 12	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	25	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Stepped Type	30	Standard	10 ～ 150	5 ～ 20	8 ～ 16	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	25	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Stepped Type	24	Wide	10 ～ 150	5 ～ 20	8 ～ 16	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	30	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	20	Stepped Type	30	Standard	10 ～ 150	5 ～ 20	8 ～ 20	-	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	For Tension	30	Steel	Black Oxide	S45C Equivalent	Thread Length Fixed Type	16	Stepped Type	24	Wide	10 ～ 150	5 ～ 20	8 ～ 20	-	5 ～ 75
-	1 Piece(s)	7 Day(s) or more	10	Hex	6	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	6	Standard Type	-	Standard	5 ～ 100	5 ～ 10	3	6 ～ 12	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	8	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	8	Standard Type	-	Standard	5 ～ 100	5 ～ 10	4	8 ～ 16	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	10	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	10	Standard Type	-	Standard	5 ～ 100	5 ～ 10	4 ～ 6	10 ～ 20	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	12	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Standard Type	-	Standard	10 ～ 150	5 ～ 15	5 ～ 8	12 ～ 24	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	13	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Standard Type	-	Standard	10 ～ 150	5 ～ 15	5 ～ 8	12 ～ 24	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	15	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Standard Type	-	Standard	10 ～ 150	5 ～ 15	6 ～ 10	12 ～ 24	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	Hex	16	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Standard Type	-	Standard	10 ～ 150	5 ～ 15	6 ～ 10	12 ～ 24	5 ～ 60
-	1 Piece(s)	5 Day(s) or more	10	Hex	17	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Standard Type	-	Standard	10 ～ 150	5 ～ 20	6 ～ 10	12 ～ 24	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	18	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Standard Type	-	Standard	10 ～ 150	5 ～ 20	6 ～ 10	12 ～ 24	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	20	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	20	Standard Type	-	Standard	10 ～ 150	5 ～ 20	6 ～ 12	20 ～ 40	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	20	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	16	Standard Type	-	Wide	10 ～ 150	5 ～ 20	6 ～ 12	20 ～ 40	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	22	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	20	Standard Type	-	Standard	10 ～ 150	5 ～ 20	6 ～ 12	20 ～ 40	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	22	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	16	Standard Type	-	Wide	10 ～ 150	5 ～ 20	6 ～ 12	20 ～ 40	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	25	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	20	Standard Type	-	Standard	10 ～ 150	5 ～ 20	8 ～ 16	20 ～ 40	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	25	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	16	Standard Type	-	Wide	10 ～ 150	5 ～ 20	8 ～ 16	20 ～ 40	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	30	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	20	Standard Type	-	Standard	10 ～ 150	5 ～ 20	8 ～ 20	20 ～ 40	5 ～ 75
-	1 Piece(s)	5 Day(s) or more	10	Hex	30	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	16	Standard Type	-	Wide	10 ～ 150	5 ～ 20	8 ～ 20	20 ～ 40	5 ～ 75
-	1 Piece(s)	7 Day(s) or more	10	For Tension	6	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	6	Stepped Type	9	Standard	5 ～ 100	5 ～ 10	3	6 ～ 12	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	8	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	8	Stepped Type	12	Standard	5 ～ 100	5 ～ 10	4	8 ～ 16	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	10	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	10	Stepped Type	15	Standard	5 ～ 100	5 ～ 10	4 ～ 6	10 ～ 20	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	12	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	5 ～ 8	12 ～ 24	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	13	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	5 ～ 8	12 ～ 24	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	15	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	6 ～ 10	12 ～ 24	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	16	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 15	6 ～ 10	12 ～ 24	5 ～ 60
-	1 Piece(s)	7 Day(s) or more	10	For Tension	17	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 20	6 ～ 10	12 ～ 24	5 ～ 75
-	1 Piece(s)	7 Day(s) or more	10	For Tension	18	Steel	Black Oxide	S45C Equivalent	Thread Length Configurable Type	12	Stepped Type	18	Standard	10 ～ 150	5 ～ 20	6 ～ 10	12 ～ 24	5 ～ 75

1
2
3
4
Next >>

Product TOP

Basic Information

Shaft Retaining Method	Threaded (Lock Nut)	Bearing Retaining Method	Threaded (Lock Nut)	Hardness	Hardness Not Spec-designed

Configure

204 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Retainer Shape
- Hex
- For Tension
Clear
Shaft Diameter (mm)(mm)
6

8

10

12

13

15

16

17

18

20

22

25

30
Clear
Material
- Steel
- Stainless Steel
Clear
Surface Treatment
- Not Provided
- Black Oxide
- Electroless Nickel Plating
Clear
Material
- S45C Equivalent
- SUS304
Clear
Thread Length Specifying Method
- Thread Length Configurable Type
- Thread Length Fixed Type
Clear
M (Coarse)
- 6
- 8
- 10
- 12
- 16
- 20
Clear
Pin Shape
- Standard Type
- Stepped Type
Clear
Thread Length N(mm)
9

12

15

18

24

30
Clear
Flange Size
- Standard
- Wide
Clear
F(mm)
[5-150/1mm Unit(s)]
Clear
G(mm)
[5-20/1mm Unit(s)]
Clear
Thread Dia. Selection [MA]
3

4

5

6

8

10

12

16

20
Clear
Thread Length [N](mm)
[6-40/1mm Unit(s)]
Clear
Y(mm)
[5-75/1mm Unit(s)]
Clear
type
- FXKB
- FXLB
- FXNKB
- FXNLB
- PFXKB
- PFXLB
- PFXNKB
- PFXNLB
- SFXKB
- SFXLB
- SFXNKB
- SFXNLB
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

5 Day(s) or Less

7 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Complementary Products

Deep Groove Ball Bearing-Double Shielded
MISUMI Standard Price : MYR 7.05- Days to Ship : 1 Day(s) or more
Roller Follower Pins - Threaded
MISUMI Days to Ship : 1 Day(s) or more
Timing Pulleys - MXL Type
MISUMI Days to Ship : 6 Day(s) or more
Silicon Rubber / Urethane Molded Bearings - Flat
MISUMI Standard Price : MYR 24.25- Days to Ship : 1 Day(s) or more
Idler Sprockets - Single Bearing, Double Bearing
MISUMI Standard Price : MYR 50.91- Days to Ship : 1 Day(s) or more

Customers Who Viewed This Item Also Viewed

Cantilever Shafts - For Tension - Retaining Ring
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Threaded with Tapped End - Standard
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Threaded with Retaining Ring Groove - Hex
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Threaded with Tapped End - Hex
MISUMI

Days to Ship : 7 Day(s) or more
Cantilever Shafts - Screw Mount with Tapped End - Standard
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Threaded with Threaded End - Standard
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Piloted Thread with Retaining Ring Groove - Standard
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Piloted Thread with Tapped End - Standard
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Threaded with Tapped End - Stepped
MISUMI

Days to Ship : 7 Day(s) or more
Idler Shafts
MISUMI

Standard Price : MYR 25.06-

Days to Ship : 2 Day(s) or more
Cantilever Shafts - Threaded with Threaded Ends - Hex
MISUMI

Days to Ship : 5 Day(s) or more
Cantilever Shafts - Piloted Thread with Tapped End - Hex
MISUMI

Days to Ship : 5 Day(s) or more

back next

Tech Support

Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations): Tel：(60) 3 7890 6399; 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday); Technical Inquiry

How can we improve?

Cantilever Shafts - For Tension - Screw Mount

(i)Caution

Specifications

Specifications

Alterations

Part Number

Basic Information

Configure

Specification/Dimensions

Retainer Shape

Shaft Diameter (mm)(mm)

Material

Surface Treatment

Material

Thread Length Specifying Method

M (Coarse)

Pin Shape

Thread Length N(mm)

Flange Size

F(mm)

G(mm)

Thread Dia. Selection [MA]

Thread Length [N](mm)

Y(mm)

type

CAD

Days to Ship

Specify Alterations

Additional Products in this Category

Complementary Products

Customers Who Viewed This Item Also Viewed

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm
