Shaft Supports T-Shaped Set Screw (Machined) - Standard / Wide

Click this image to zoom it.

Move the mouse over the image to zoom

Volume Discount

Types with dowel holes make positioning easier during assembly. Positioning is reproducible when removed for maintenance.

(i)Caution

[Specification Change] The packaging specifications of some products will be changed sequentially starting in May 2026. Products before and after the change may be mixed in the same shipment, but there are no problems with use.

Part Number

Configured Part Number is shown.

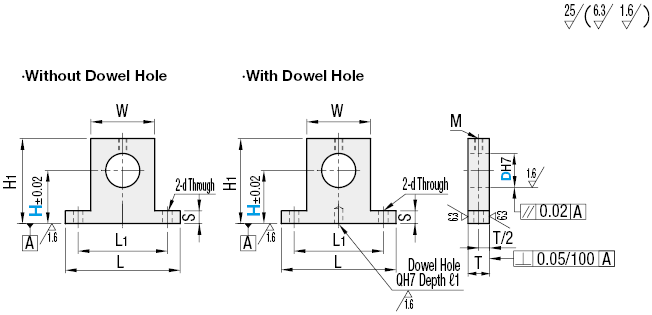

Shaft Supports - T - Shaped - Set Screw Type:Related Image

Without Dowel Hole		With Dowel Hole	[ M ]Material	[ S ]Surface Treatment	[ A ]Accessories
Height H Selectable Type	Height H Configurable Type	Height H Selectable Type	[ M ]Material	[ S ]Surface Treatment	[ A ]Accessories
SHTB	SHTBH	SHTBK	S45C Equivalent	Blackening	Hexagon Socket Head Cap Screw 1pc
SHTM	SHTMH	SHTMK	S45C Equivalent	Electroless Nickel Plating	Hexagon Socket Set Screw 1pc. (SUS)
SHTS	SHTSH	SHTSK	SUS304	-
SHTA	SHTAH	-	6000series Aluminum Alloy	White Alumite

Specifications

Part Number	-	H
SHTB8 SHTMH15 SHTBN35	- - -	25 25.6 50

Part Number		H		L	H₁	T	S	W	Set Screw M	L₁	d	Q	ℓ₁	Unit Price
Part Number		H												W/o Dowel Hole								With Dowel Hole
Type	D	Height H Selectable Type	Height H Configurable Type 0.1mm Increment											Height H Selectable Type				Height H Configurable Type				Height H Selectable Type
Type	D	Height H Selectable Type	Height H Configurable Type 0.1mm Increment											SHTB	SHTM	SHTS	SHTA	SHTBH	SHTMH	SHTSH	SHTAH	SHTBK	SHTMK	SHTSK
W/o Dowel Hole Height H Selectable SHTB SHTM SHTS SHTA Height H Configurable SHTBH SHTMH SHTSH SHTAH With Dowel Hole SHTBK SHTMK SHTSK (8≤D≤40)	3	10 15 20	10.0~20.0	26	H+5	8	4	10	M3	18	3.5	-	-									-	-	-
	4	10 15 20	10.0~20.0		H+6																	-	-	-
	5	15 20 25	15.0~25.0		H+7																	-	-	-
	6	15 20 25	15.0~25.0		H+8																	-	-	-
	8	(10) 15 20 25 30 40	10.0~40.0	42	H+9	10	6	18	M4	30	4.5	4	5
	10	(10) 15 20 25 30 40	15.0~40.0		H+10
	12	(10) 15 20 25 30 40			H+11
	13	20 25 30			H+12
	15	(15) 20 25 30 40	15.0~40.0	54	H+15			30		42
	16	(15) 20 25 30 40	15.0~40.0	54	H+15			30		42
	18	25 30 40 50 60	25.0~60.0	67	H+18	16	8	35	M6	50	6.6	5	7
	20	(15) 20 25 30 40 50 60	20.0~60.0		H+18
	25	(20) 25 30 40 50 60	25.0~60.0		H+20
	30	(20) 25 30 40 50 60	25.0~60.0	85	H+23	20	10	45		65	9
	35	(25) 30 50 60	30.0~60.0	85	H+25			45		65
	40	(25) 30 40 60 80	30.0~80.0	100	H+30			60		80
	50	-	40.0~80.0	125	H+38		15	75		100	14			-	-	-	-					-	-	-

[ ! ] H dimensions in ( ) are applicable to w/o Dowel Hole Type only.Dowel Hole Type is applicable to D dimensions 8 ~ 40 only.

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

1
2
3
4
5
Next >>

Part Number
SHTA3-10
SHTA3-15
SHTA3-20
SHTA4-10
SHTA4-15
SHTA4-20
SHTA5-15
SHTA5-20
SHTA5-25
SHTA6-15
SHTA6-20
SHTA6-25
SHTA8-10
SHTA8-15
SHTA8-20
SHTA8-25
SHTA8-30
SHTA8-40
SHTA10-10
SHTA10-15
SHTA10-20
SHTA10-25
SHTA10-30
SHTA10-40
SHTA12-10
SHTA12-15
SHTA12-20
SHTA12-25
SHTA12-30
SHTA12-40
SHTA13-20
SHTA13-25
SHTA13-30
SHTA13-40
SHTA15-15
SHTA15-20
SHTA15-25
SHTA15-30
SHTA15-40
SHTA16-15
SHTA16-20
SHTA16-25
SHTA16-30
SHTA16-40
SHTA18-25
SHTA18-30
SHTA18-40
SHTA18-50
SHTA18-60
SHTA20-15
SHTA20-20
SHTA20-25
SHTA20-30
SHTA20-40
SHTA20-50
SHTA20-60
SHTA25-20
SHTA25-25
SHTA25-30
SHTA25-40

Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship	RoHS	Shape	Shaft Securing Method	Hole Dia. D (Ø)	Material	Surface Treatment	Type	Thickness	Dowel Hole	Clamp Lever	Height Configurable/Selectable	Height H (mm)
MYR 19.29	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	3	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	10
MYR 19.29	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	3	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 19.29	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	3	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 20.05	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	4	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	10
MYR 20.05	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	4	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 20.05	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	4	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 92.43	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	5	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 92.78	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	5	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 22.37	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	5	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 22.37	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	6	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 22.37	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	6	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 22.37	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	6	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 27.77	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	8	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	10
MYR 27.77	1 Piece(s)	Available	5 Day(s) or more	10	T-Shaped	Set Screw	8	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 27.77	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	8	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 27.77	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	8	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 27.77	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	8	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 27.77	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	8	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 30.09	1 Piece(s)	Available	5 Day(s) or more	10	T-Shaped	Set Screw	10	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	10
MYR 30.09	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	10	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 30.09	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	10	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 30.09	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	10	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 30.09	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	10	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 30.09	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	10	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 31.63	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	12	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	10
MYR 31.63	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	12	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 31.63	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	12	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 100.47	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	12	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 31.63	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	12	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 31.63	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	12	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 33.95	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	13	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 33.95	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	13	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 33.95	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	13	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 33.95	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	13	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	15	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	15	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	15	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	15	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	15	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	16	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	16	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	16	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	16	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 39.35	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	16	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	18	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	18	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	18	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	18	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	50
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	18	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	60
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	20	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	15
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	20	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	20	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	20	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	20	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	20	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	50
MYR 53.23	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	20	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	60
MYR 56.32	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	25	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	20
MYR 56.32	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	25	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	25
MYR 56.32	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	25	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	30
MYR 56.32	1 Piece(s)	Available	13 Day(s) or more	10	T-Shaped	Set Screw	25	[Aluminum] Aluminum Alloy	Clear Anodize	Machined Product	Standard	N/A	N/A	Height Selectable	40

1
2
3
4
5
Next >>

Product TOP

Configure

560 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Shape
- T-Shaped
Clear
Shaft Securing Method
- Set Screw
Clear
Hole Dia. D(Ø)
3

4

5

6

8

10

12

13

15

16

18

20

25

30

35

40

50
Clear
Material
- Steel
  - S45C Equivalent
- Stainless Steel
  - SUS304
- Aluminum
  - Aluminum Alloy
Clear
Surface Treatment
- Not Provided
- Black Oxide
- Electroless Nickel Plating
- Clear Anodize
Clear
Type
- Machined Product
Clear
Thickness
- Standard
Clear
Dowel Hole
- N/A
- Yes
Clear
Clamp Lever
- N/A
Clear
Height Configurable/Selectable
- Height Configurable
- Height Selectable
Clear
Height H(mm)
10

15

20

25

30

40

50

60

80
[10-80/0.1mm Unit(s)]
Clear
type
- SHTA
- SHTAH
- SHTB
- SHTBH
- SHTBK
- SHTM
- SHTMH
- SHTMK
- SHTS
- SHTSH
- SHTSK
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

2 Day(s) or Less

4 Day(s) or Less

5 Day(s) or Less

7 Day(s) or Less

8 Day(s) or Less

13 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Complementary Products

Oil Free Bushing Housing Units - Standard Flanged - Standard - Built-In Copper Alloy Bushings, Single / Double
MISUMI Standard Price : MYR 35.15- Days to Ship : 2 Day(s) or more
Shaft Collar (Wedge) - 2-Hole / 2-Tapped (Coarse)
MISUMI Standard Price : MYR 32.46- Days to Ship : 2 Day(s) or more
Shaft-sliding Linear Bushing Housing Units - Single / Double
MISUMI Standard Price : MYR 65.47- Days to Ship : 1 Day(s) or more
Linear Bushings - Single
MISUMI Standard Price : MYR 13.98- Days to Ship : 1 Day(s) or more

Customers Who Viewed This Item Also Viewed

Shaft Supports - T-Shaped Slit (Cast Type) - Standard
MISUMI

Standard Price : MYR 29.13-

Days to Ship : 1 Day(s) or more
Shaft Supports T-Shaped Slit (Machined) - Standard / Wide
MISUMI

Days to Ship : 4 Day(s) or more
Shaft Supports - T-Shaped (Cast Type) - Standard
MISUMI

Standard Price : MYR 34.55-

Days to Ship : 4 Day(s) or more
Shaft Supports T-Shaped Slit (Machined) - Wide
MISUMI

Days to Ship : 5 Day(s) or more
Shaft Supports T-Shaped Set Screw (Machined) - Wide
MISUMI

Days to Ship : 4 Day(s) or more
Shaft Supports T-Shaped Side Slit (Machined) - Standard
MISUMI

Days to Ship : 5 Day(s) or more
Shaft Supports - T-Shaped Slit (Cast Type) - Wide
MISUMI

Standard Price : MYR 60.02-

Days to Ship : 4 Day(s) or more
Shaft Supports T-Shaped Split (Machined) - Standard
MISUMI

Days to Ship : 7 Day(s) or more
Shaft Supports - T-Shaped Split (Cast Type) - Standard
MISUMI

Standard Price : MYR 48.61-

Days to Ship : 4 Day(s) or more
Shaft Supports Compact Type (Machined) - Set Screw
MISUMI

Standard Price : MYR 103.96-

Days to Ship : 4 Day(s) or more
Shaft Supports L-Shaped (Machined) - Slit
MISUMI

Days to Ship : 6 Day(s) or more
Shaft Supports Bottom Mount Set Screw (Machined) - Standard
MISUMI

Days to Ship : 2 Day(s) or more

back next

Tech Support

Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations): Tel：(60) 3 7890 6399; 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday); Technical Inquiry

How can we improve?

Shaft Supports T-Shaped Set Screw (Machined) - Standard / Wide

(i)Caution

Specifications

Part Number

Configure

Specification/Dimensions

Shape

Shaft Securing Method

Hole Dia. D(Ø)

Material

Surface Treatment

Type

Thickness

Dowel Hole

Clamp Lever

Height Configurable/Selectable

Height H(mm)

type

CAD

Days to Ship

Specify Alterations

Additional Products in this Category

Complementary Products

Customers Who Viewed This Item Also Viewed

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm
